Description

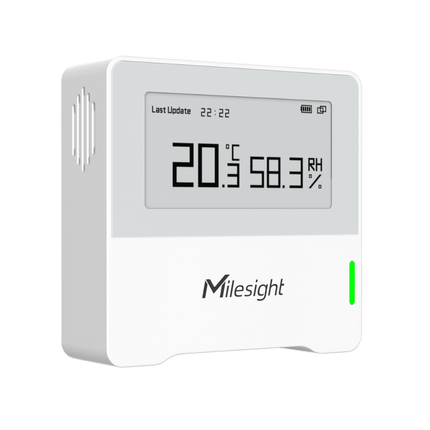

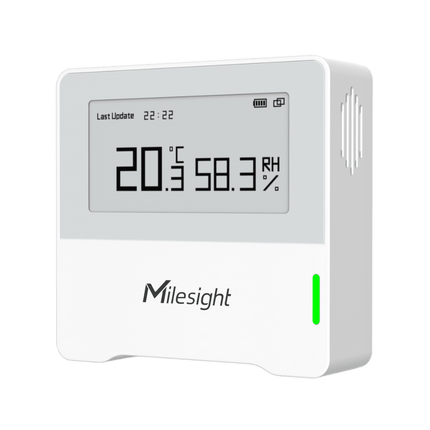

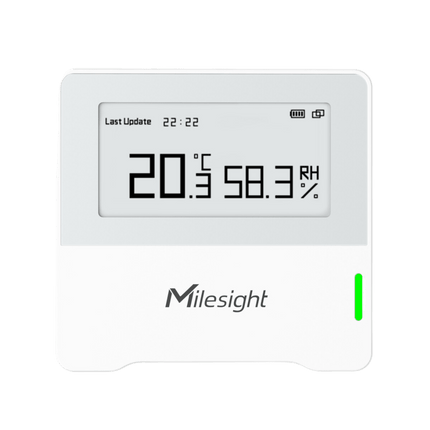

Milesight AM102 2-in-1 IAQ LoRaWAN Temperature & Humidity Sensor
- Detect Temperature and Humidity
- Optional 2.13 -Inch E-ink Screen
- Traffic Light Status Indicator
- Wireless Installation with Anti-theft Protection
- Hibernation Mode for Low Power Consumption (AM102)
- Battery Life up to 7 Years (AM102) / 9 Years (AM102L)
The AM102(L) is an indoor LoRaWAN ambiance Temperature and Humidity sensor of superior precision. Regardless of being available with or without an E-ink display, this sensor harnesses the power of LoRaWAN® technology, which ensures long-range transmission. Its primary aim is to assist users in preserving optimal indoor conditions, thereby significantly enhancing comfort, safety, and operational efficiency.
Your Basic IAQ Data
Great T&H Detection Made Simple
Provide real-time and basic temperature and humidity data in your indoor air quality (IAQ).
- Traffic Light Status Indicator
- Interactive Information on E-ink Screen (AM102)
Smart Screen Mode for Energy-Saving Operations
When the current collected value is close to the last value*, the screen will stop updating to save power.
Hibernation Mode for Ultra-Low Power Consumption
- Use hibernation when you know you will not be using the IAQ sensor for an extended period of time to save more power.
- Hibernation uses less power than smart screen mode because data collection will automatically turn off
LoRaWAN® Based
-
Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
-
High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Specifications
| Wireless Transmission |
| Technology |
LoRaWAN® |
| Frequency |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power |
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity |
-137dBm @300bps |
| Mode |
OTAA/ABP Class A |
| Sensors |
| Temperature |
| Operating Principle |
Digital CMOSens® technology (MEMS) |
| Range |
-20°C ~ 60°C |
| Accuracy1 |
± 0.2°C |
| Resolution |
0.1°C |
| Humidity |
| Operating Principle |
Digital CMOSens® technology (MEMS) |
| Range |
0% RH~ 100% RH |
| Accuracy |
± 2% RH |
| Resolution |
0.5% RH |
| Display & Configuration |
| Display |
AM102: 2.13-inch Black & White E-Ink Screen
AM102L: Not Support |
| Button |
1 × Power Button |
| LED |
1 × Status Indicator |
| Configuration |
Mobile App via NFC |
| Physical Characteristics |
| Power Supply |
2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries |
| Battery Life* |
AM102: Over 7 Years |
| (10 min interval, 25°C) |
AM102L: Over 9 Years |
| Operating Temperature |
-20°C ~ 60°C (E-Ink Screen: 0°C ~ 40°C) |
| Relative Humidity |
0% ~ 95% (non-condensing) |
| Ingress Protection |
IP30 |
| Dimension |
68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in) |
| Installation |
Wall Screw Mounting, 3M Tape Mounting |
