Milesight AM103 LoRaWAN 3-in-1 IAQ Indoor Ambience Monitoring Sensor
Milesight AM103 LoRaWAN 3-in-1 IAQ Indoor Ambience Monitoring Sensor

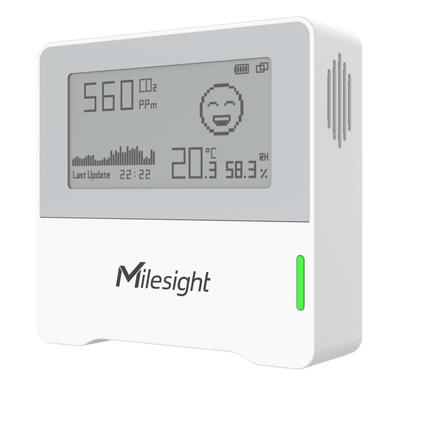

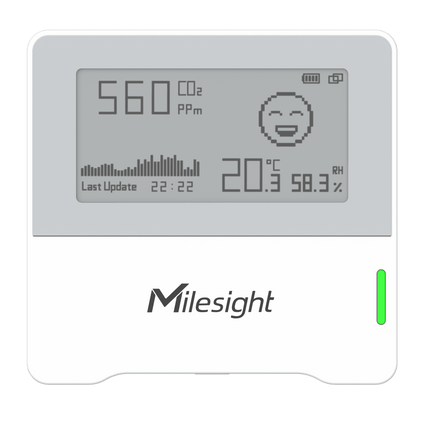

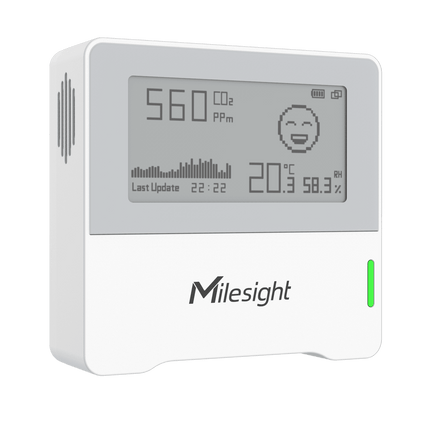

AM103 is a compact indoor ambiance monitoring sensor for the measurement of temperature, humidity, and CO2. These data will be shown on the E-ink screen in real-time, which allows quantifying the indoor environment and comfort. AM103 is widely used for offices, stores, classrooms, hospitals, etc.
3 Sensors in 1
Built-in high accuracy sensors to track the invisible elements of the air to ensure comfort at every moment.
Specifications:
| Wireless Transmission | ||
| Technology | LoRaWAN® | |
| Frequency | US915/AU915/KR920/AS923 | |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) | |
| Sensitivity | -137dBm @300bps | |
| Mode | OTAA/ABP Class A | |
| Sensors | ||
| Temperature | Range | -20°C to + 70°C |
| Accuracy | 0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C) | |
| Resolution | 0.1°C | |
| Humidity | Range | 0% to 100% RH |
| Accuracy | 10% to 90% RH (± 3%), below 10% and above 90% RH (± 5%) | |
| Resolution | 0.5% RH | |
| Carbon Dioxide (CO2) | Range | 400 to 5000 ppm |
| Accuracy | ± (30 ppm + 3 % of reading) | |
| Resolution | 1 ppm | |
| Display & Configuration | ||
| Display | AM103: 2.13-inch Black & White E-Ink Screen

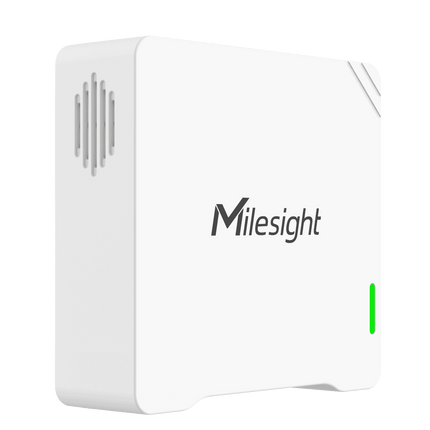

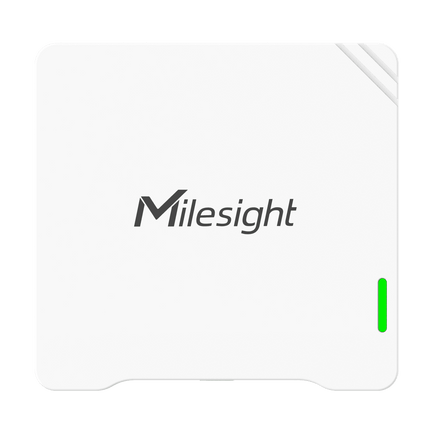

AM103L: Not Support |
|
| Button | 1 × Power Button | |
| LED | 1 × Traffic Light Status Indicator | |
| Configuration | Mobile App via NFC | |
| Physical Characteristics | ||
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries | |
| Battery Life (10 min interval) |
AM103: Around 3 Years AM103L: Around 4 Years |
|
| Operating Temperature | -20°C to +60°C (E-Ink Screen: 0°C – 40°C) | |
| Relative Humidity | 0% to 95% (non-condensing) | |
| Ingress Protection | IP30 | |
| Dimension | 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in) | |
| Installation | Wall Mounting | |
