Milesight CTH01 LoRaWAN Smart Power Monitor Hub 12-channel Energy Meter

Description

Milesight CTH01 LoRaWAN Smart Power Monitor Hub 12-channel Energy Meter

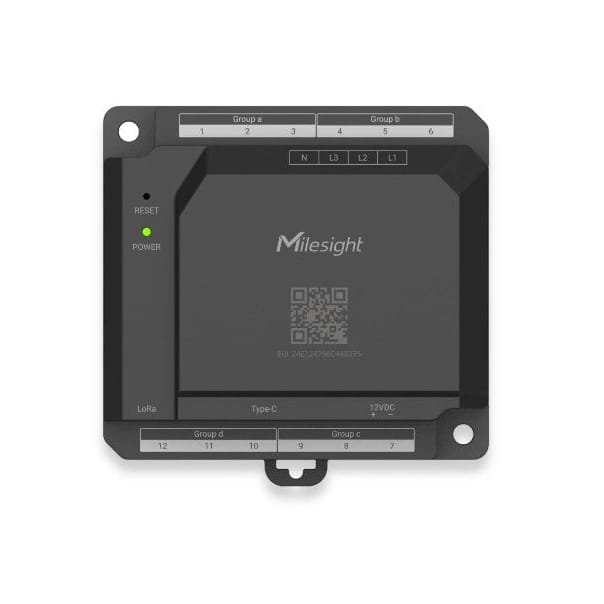

CTH01 is a 12-channel LoRaWAN® power monitoring hub purpose-built for multi-circuit current monitoring, featuring non-invasive voltage measurement and industrial-grade analytics, helping commercial and industrial facilities cut costs and optimize efficiency.

12-Circuit Insights. Single Hub.
Minimal Footprint

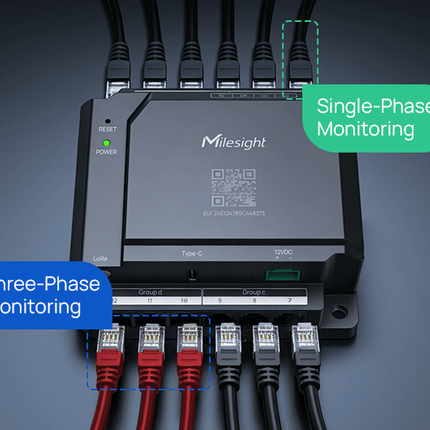

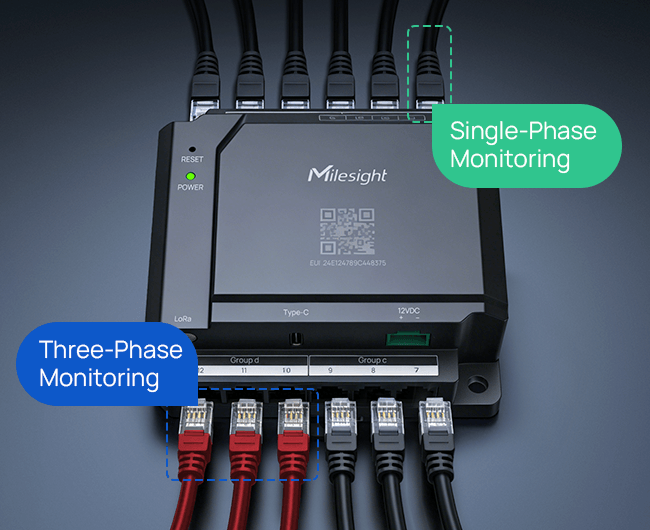

CTH01 redefines sub-metering efficiency by monitoring up to 4 three-phase or 12 single-phase circuits simultaneously. This 12-in-1 design drastically reduces hardware investment, simplifies network infrastructure, and fits perfectly into space-constrained electrical cabinets.

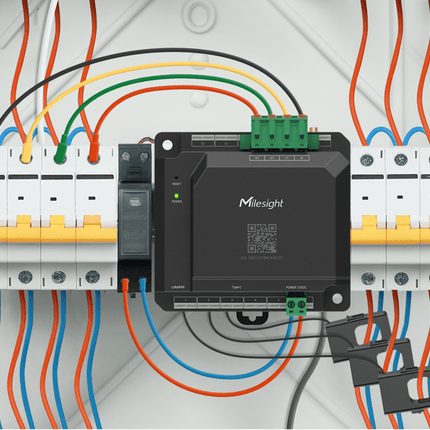

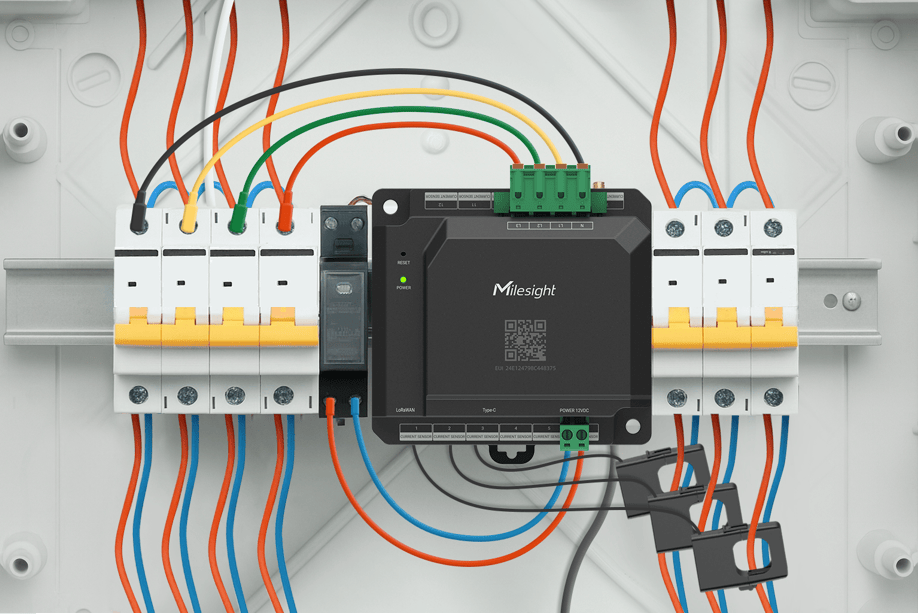

Zero-Downtime Non-Invasive Deployment

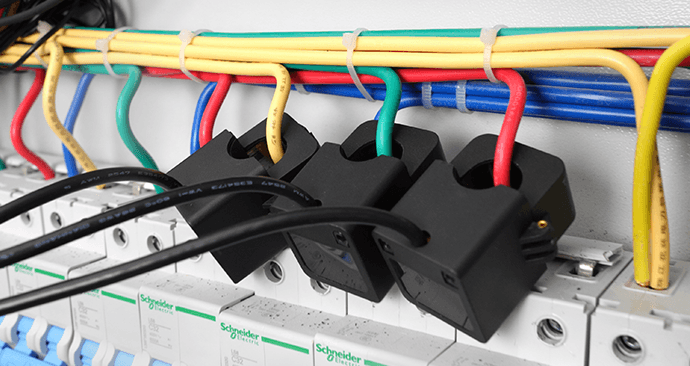

Beyond standard terminal connections, CTH01 also supports non-invasive magnetic voltage measurement — snap probes onto breaker screws instantly, no terminal wiring or wire stripping required. For current measurement, split-core transformers clamp around conductors without cutting cables or interrupting power. Deploy faster and more securely at scale.

Versatile Compatibility up to 4,000A

One host integrates split-core current transformers and Rogowski coils in a single compact unit. Mix different current ranges across channels without matching specifications or buying specialized hardware. Future-proof your deployment with true plug-and-play flexibility.

Professional Analytics with 8kHz Sampling

Go beyond basic energy tracking. CTH01 transforms raw consumption data into predictive intelligence, capturing harmonic distortion, voltage unbalance, and power factor anomalies in real time. Detect grid health issues before they damage equipment and turn your electrical infrastructure into a self-diagnosing system.

Specifications

Electrical Measurement
Detection Parameter RMS Voltage and Current
Power Factor
Active, Reactive, Apparent Power
Active (Imported or Exported), Reactive (Imported or Exported), Apparent Energy
Voltage Three-Phase Unbalance
Voltage Total Harmonic Distortion (THDv)
Current Total Harmonic Distortion (THDi)
Sampling Frequency 6 - 8 kHz
Working Frequency 50 - 60 Hz
Accuracy Active Energy: ±1% (according to IEC 62053-21)
Reactive Energy: ±2% (according to IEC 62053-23)
Temperature
Sensor Type External NTC Sensor
Measuring range -20°C ~ 100°C
Measuring accuracy ±1 %
Voltage Interface
Circuit Configuration • Three-phase: phases L1 to L3 with or without Neutral
• Single-phase: phases L with Neutral
• Mixed Three-phase and Single-phase
Measuring Range 100 - 500V AC
Measuring accuracy ±1 %
Maximum Voltage (N-L) 290 Vrms
Maximum Voltage (L-L) 500 Vrms
Wire Connection AWG 26 - 12
Current Interface
Range Up to 1000A (Customizable Up to 4000 A)
Interface Type RJ11
Port 12 × Current Channels
Wireless Transmission
Protocol LoRaWAN®
Antenna Connector 1 × 50 Ω SMB - Female External Connector
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137dBm
Mode OTAA/ABP Class C
Others
LED Indicator 1 × Status/Alarm Indicator
Button 1 × Reset Button
USB 1 × USB Type-C for Cable Temperature Sensor Connection
Software
Configuration Mobile App via Bluetooth
Advanced Feature Data Storage (20, 000 entries, 2,000 alarms), Data Analysis (12 months of energy statistics), Threshold Alarm, Out-of-Range alarm, Power Failure Alarm
Physical Characteristics
Power Supply 12 V DC (±10 %)
Insulation Voltage 4kVac(r.m.s)(1mA/1min)
Intrinsic Consumption Max. 5.8W
Pollution Degree 2
Overvoltage Category Ⅲ
Maximum Altitude 2000 m
Operating Temperature -20°C~70°C (-4°F~158°F)
Relative Humidity ≤ 95% (Non-condensing)
Ingress Protection IP30
Housing&Color ABS+PC (UL94 V0), Starlight Grey
Dimensions 49.3 × 98 × 90 mm (1.94 × 3.86 × 3.54 in)
Weight 163g
Installation DIN 35 Rail Mounting, Magnetic Mounting (Optional)
Approvals
Regulatory ETL Listed (UL/CSA 61010-1, UL/CSA 61010-2-030),
CE (RED&LVD), FCC, SRRC



Documents

CTH01 Datasheet
CTH01 User Guide
Payload Decoder
Firmware & SDK Download





Read more
