Milesight DS3604 LoRaWAN IOT E-ink Display

Description

Milesight DS3604 LoRaWAN IOT E-ink Display

Going Paperless for More Efficient and Sustainable Operations

  • Bigger E-ink Screen Featuring Red/White/Black Color Display
  • Customized Templates in Multiple Modules and Languages
  • Low Power Consumption with up to 5 Years of Battery Life
  • Open API and a LoRaWAN® Button Enable Various Applications
  • Support Local and Remote Control for Bulk Deployment

Excellent Readability on 4.2-Inch Screen with Three-Pigment Ink System

E-Ink digital paper is a form of ink made from micro-particles in a thin film layer.

  • Flexible, Shatterproof and Light 4.2 Inches Screen
  • Bi-stable EPD (E-ink Display) Black, White and Red Colors
  • 400 × 300 Pixels Display with Near 180° Viewing Angle

Achieve Energy-Saving Operations Effortlessly

The e-ink display is bistable, which allows the image on the e-ink screen to be retained even when all power is removed.

  • Can Be Reused with No Paper Required
  • Does Not Consume Any Battery When Left Idle
  • Avoid Disturbing Light Pollution in the Environment

Customized Templates for the Scenarios You Most Frequently Employ

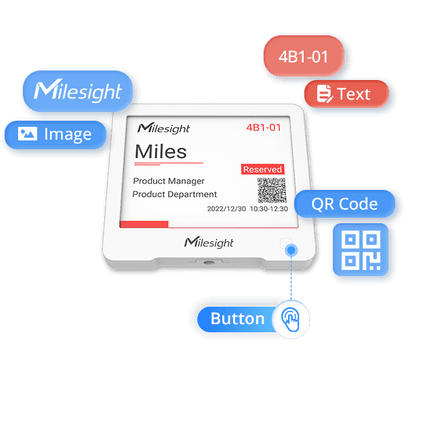

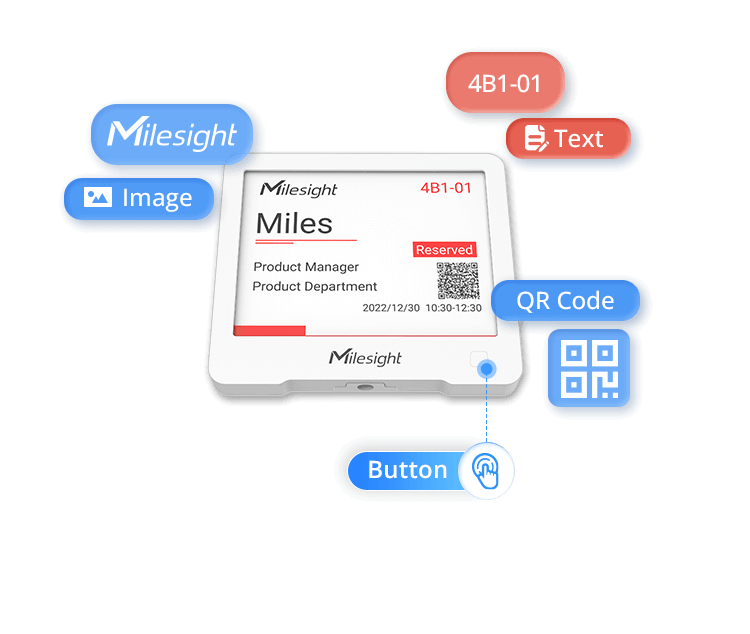

  • Text, Image and QR Code Are Offered and Customizable
  • Multi-Functional Button Featuring LoRaWAN® Technology Optional
  • Pre-customized Templates Are Flexible for Different Scenarios, Such as Workplace, Hotel, Hospital, Retail Store, Etc.

Install to Unlock a Greener and More Productive Workplace

Two factory prefabricated templates are offered by Milesight, hot desk reservation and workplace display signage, which are perfect for your turnkey smart office solutions.

  • Clearer Booking System for Employees
  • Real-Time Information for Building Managers
  • Occupancy Metrics for Facility Managers

Provide API for Easy Software Integration

It’s time to turn the technology component into a digital signage solution that meets your specific need.

  • Clearer Booking System for Employees
  • Real-Time Information for Building Managers
  • Occupancy Metrics for Facility Managers

LoRaWAN® Based

  • Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
  • High Compatibility: compliant with standard LoRaWAN® gateways and network servers

Specifications:

Wireless Transmission Technology LoRaWAN®
Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137dBm
Mode OTAA/ABP Class A/Class B ( Default OTAA Class B)
E-ink Screen 4.2-inch Black & White & Red E-Ink Screen
Resolution 400 x 300 Pixels
DPI 119
Viewing Angle 180°
Refresh Rate 16s (10 – 40°C)
Display Character Latin alphabet, English alphabet, Cyrillic alphabet, Greek alphabet, Chinese character, Japanese character, and Hangul
Display Languages Support Displaying up to 150 Languages Including English, Chinese (Simplified & Traditional) , Spanish, French, Japanese, Portuguese, etc. (Exclude Hebrew, Arabic & Thai)
Operation Button 1 x Reset Button (Internal) + 1 x Screen Button
Buzzer 1 x Buzzer
Configuration NFC Configuration via Mobile App
Physical Characteristics Power Supply 3 × 590mAh CR2450 Lithium Batteries
Battery Life Around 5 Years (Class A Mode + 1 Screen Refresh per Day)
Around 1 Year (Class B Mode + 12 Screen Refreshes per Day)
Operating Temperature 0°C to +40°C (0℉ to +104℉)
Operating Humidity 0% to 95% (non-condensing) below 25°C/77℉
Ingress Protection IP30
Color & Material White, ABS + PC
Dimension 99 × 87 × 10.5 mm (3.90 × 3.43 × 0.41 in)
Installation 3M Tape Mounting, Wall Screw Mounting



Download

Datasheet

User Guide



Read more

Milesight DS3604 LoRaWAN IOT E-ink Display

Product form
Free pickup in our shop(s)

SKU: DS3604-915M

$230.00 $190.00 Excl. GST

$230.00 $190.00
Product available in stock, Express post same business day.

    • 100% Australian Owned and Operating
    • Local Australian Stock — Fast Same-Day Dispatch or Pickup
    • Price Matching & Bulk Discounts — Request a Quote
    • Purchase Orders & 30-Day Accounts for Approved Accounts
    • Accounts Auto Apply to AU/NZ Universities, Schools, ASX-Listed Companies & Government Departments
    • Free Local Technical Support from a Qualified Scientist — Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government
    • 30-Day Free Return and Refund Policy
    • Min 1-Year Warranty on All Products — Extension on Selected Ranges

    Description

    Milesight DS3604 LoRaWAN IOT E-ink Display

    Going Paperless for More Efficient and Sustainable Operations

    • Bigger E-ink Screen Featuring Red/White/Black Color Display
    • Customized Templates in Multiple Modules and Languages
    • Low Power Consumption with up to 5 Years of Battery Life
    • Open API and a LoRaWAN® Button Enable Various Applications
    • Support Local and Remote Control for Bulk Deployment

    Excellent Readability on 4.2-Inch Screen with Three-Pigment Ink System

    E-Ink digital paper is a form of ink made from micro-particles in a thin film layer.

    • Flexible, Shatterproof and Light 4.2 Inches Screen
    • Bi-stable EPD (E-ink Display) Black, White and Red Colors
    • 400 × 300 Pixels Display with Near 180° Viewing Angle

    Achieve Energy-Saving Operations Effortlessly

    The e-ink display is bistable, which allows the image on the e-ink screen to be retained even when all power is removed.

    • Can Be Reused with No Paper Required
    • Does Not Consume Any Battery When Left Idle
    • Avoid Disturbing Light Pollution in the Environment

    Customized Templates for the Scenarios You Most Frequently Employ

    • Text, Image and QR Code Are Offered and Customizable
    • Multi-Functional Button Featuring LoRaWAN® Technology Optional
    • Pre-customized Templates Are Flexible for Different Scenarios, Such as Workplace, Hotel, Hospital, Retail Store, Etc.

    Install to Unlock a Greener and More Productive Workplace

    Two factory prefabricated templates are offered by Milesight, hot desk reservation and workplace display signage, which are perfect for your turnkey smart office solutions.

    • Clearer Booking System for Employees
    • Real-Time Information for Building Managers
    • Occupancy Metrics for Facility Managers

    Provide API for Easy Software Integration

    It’s time to turn the technology component into a digital signage solution that meets your specific need.

    • Clearer Booking System for Employees
    • Real-Time Information for Building Managers
    • Occupancy Metrics for Facility Managers

    LoRaWAN® Based

    • Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
    • High Compatibility: compliant with standard LoRaWAN® gateways and network servers

    Specifications:

    Wireless Transmission Technology LoRaWAN®
    Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
    Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
    Sensitivity -137dBm
    Mode OTAA/ABP Class A/Class B ( Default OTAA Class B)
    E-ink Screen 4.2-inch Black & White & Red E-Ink Screen
    Resolution 400 x 300 Pixels
    DPI 119
    Viewing Angle 180°
    Refresh Rate 16s (10 – 40°C)
    Display Character Latin alphabet, English alphabet, Cyrillic alphabet, Greek alphabet, Chinese character, Japanese character, and Hangul
    Display Languages Support Displaying up to 150 Languages Including English, Chinese (Simplified & Traditional) , Spanish, French, Japanese, Portuguese, etc. (Exclude Hebrew, Arabic & Thai)
    Operation Button 1 x Reset Button (Internal) + 1 x Screen Button
    Buzzer 1 x Buzzer
    Configuration NFC Configuration via Mobile App
    Physical Characteristics Power Supply 3 × 590mAh CR2450 Lithium Batteries
    Battery Life Around 5 Years (Class A Mode + 1 Screen Refresh per Day)
    Around 1 Year (Class B Mode + 12 Screen Refreshes per Day)
    Operating Temperature 0°C to +40°C (0℉ to +104℉)
    Operating Humidity 0% to 95% (non-condensing) below 25°C/77℉
    Ingress Protection IP30
    Color & Material White, ABS + PC
    Dimension 99 × 87 × 10.5 mm (3.90 × 3.43 × 0.41 in)
    Installation 3M Tape Mounting, Wall Screw Mounting



    Download

    Datasheet

    User Guide



    Read more
