Milesight DS7610 LoRaWAN IOT Display Gateway 10.1" Touch Screen

Description



Milesight DS7610 LoRaWAN IOT 10.1" Display Gateway Touch Screen

Tapping into Extraordinary Smart Solutions

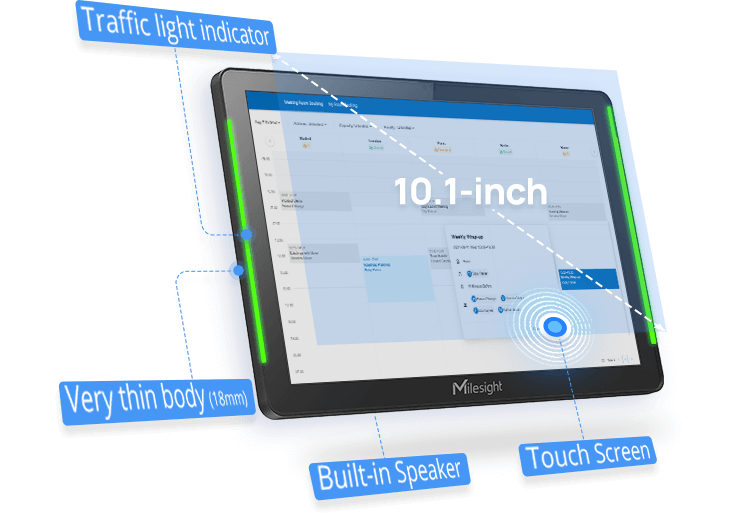

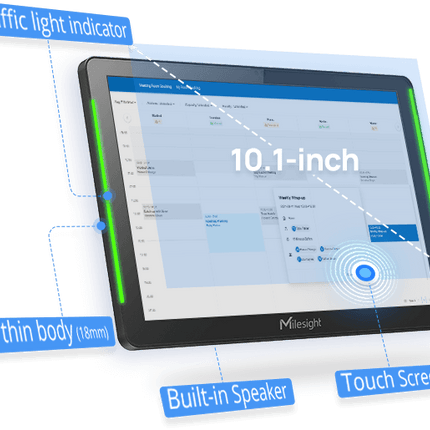

  • Built-in LoRaWAN® Gateway
  • Robust Features for Secondary Development
  • 10.1 Inch Capacitive Touch Screen
  • Support Third-Party Android Applications

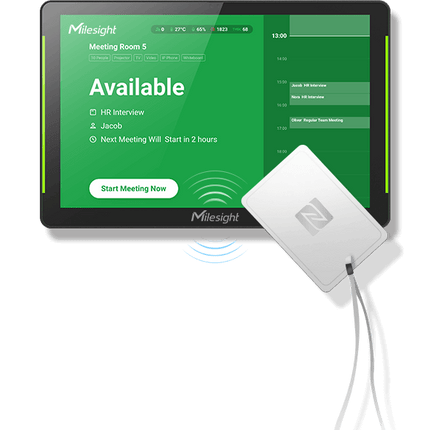

Milesight DS7610 IoT Display brings customers simplicity and a user-friendly experience in managing room conditions with one tap. As an advanced IoT solution, DS7610 has a built-in LoRaWAN® gatewayandNFCtomanage Milesight LoRaWAN® sensors and displays intuitive data and the status on the screen. More significantly, the 10.1-inch capacitive touchscreen display allows users to see and customize the user interface with easy settings and smooth screen switching. Customizable step-less adjustedRGBLEDindicators of DS7610 can show real-time room availability instantly even from a distance. DS7610 also supports 3rd-party Android applications, allowing users to install applications as needed, such as Meeting Room Booking Systems, Visitor Appointment Systems, Smart RestroomManagement Systems, and more.

Specifications:

Display LCD Screen 10.1-inch TFT LCD Touch Screen
Resolution 1280 x 800 Pixels
Active Area 216.58 (L) x 135.36 (H) mm
Screen-to-body Ratio 74.88%
Aspect Ratio 16:10
Contrast Ratio 1000:01:00
Luminance 300Cd/m2
LED RGB Side LED Indicators, Stepless Adjustment
Hardware System CPU Quad-core ARM Cortex-A55
Memory 2GB DRAM
Flash 16GB eMMC
Expansion Storage (Optional) Equipped with micro SD Card (8GB/16GB/32GB/64GB/128GB)
Operating System Android 11.0
Connectivity & Interface
LoRaWAN® Channel 1
Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity -137dBm
Output Power 19dBm (470 MHz) /16dBm (868 MHz)/22dBm (915 MHz)
Protocol V1.0.3 Class A/Class C
Others Wi-Fi IEEE 802.11 b/g/n，2.4 GHz
IEEE 802.11 a/n/ac，5 GHz
Bluetooth Bluetooth 5.0
Ethernet 1 x RJ45 10/100/1000 Mbps Ethernet Port (PoE PD Supported)
Type-C OTG or Host Mode
Speaker 1.5W
Sensors & NFC Proximity Sensor Detection Distance: 1 m (Max.)
Light Sensor 5 Brightness Level Adjustment
NFC 13.56 MHz
Physical Characteristics 1. 802.3af PoE
Power Supply 2. 12V/1A by DC Jack Connector
3. 5V/2A by Type-C Port
Operating Temperature -20°C to +50°C (-4℉ to +122℉)
Operating Humidity 0% to 95% (Non-condensing) Below 25°C/77℉
Ingress Protection IP30
Color & Material Black, Metal
Dimensions 245 (L) x 160 (H) x 18 (D) mm
Weight 0.65 kg (Without Bracket), 0.7kg (With Bracket)
Installation Wall Mounting, 3M Tape Mounting, VESA Desktop Stand Mounting (75 x 75mm)



Resources:

DS7610 Datasheet

DS7610 User Guide

DS7610 API Document



Milesight DS7610 LoRaWAN IOT Display Gateway 10.1" Touch Screen

Product form

SKU: DS7610 IOT Display

$879.00 $779.00 Excl. GST

$779.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
