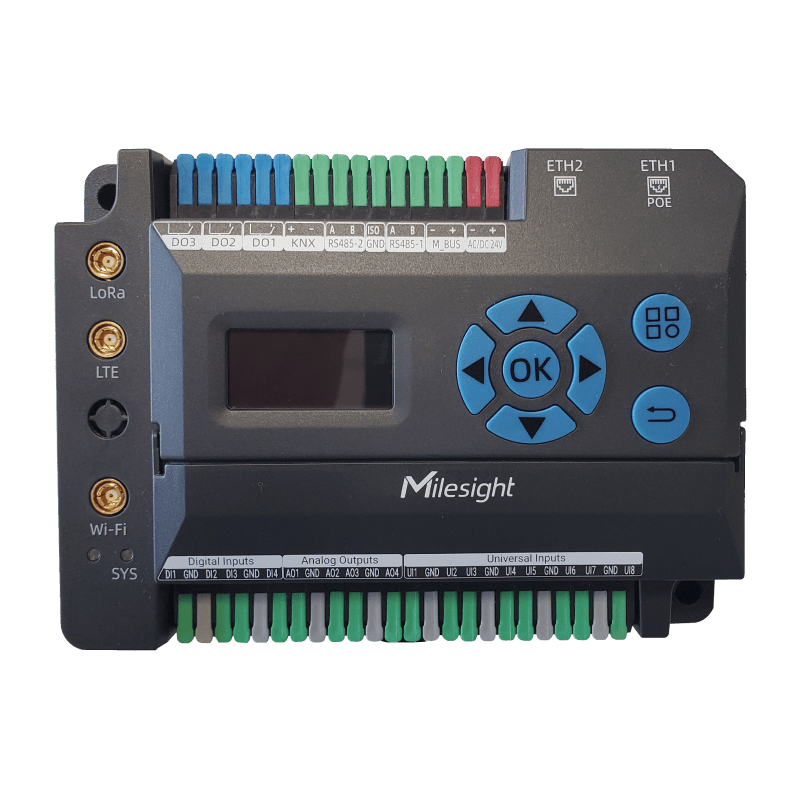

| Hardware System |
| CPU |
Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory |
2GB DDR4 RAM |
| Flash |
32 GB eMMC |
| Extendable Storage |
1 × Micro SD Slot |
| LoRaWAN® |
| Antenna |
1 × 50 Ω SMB - Female External Connecto |
| Channel |
8 (Half-duplex) |
| Frequency Band |
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity |
-140dBm Sensitivity @292bps |
| Tx Power |
27dBm Max |
| Protocol |
V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| LBT |
Support |
| Number of Devices |
Around 2000 Devices (based on 10 min uplink interval) |
| Advanced Features |
Noise Analyzer, Gateway Fleet, Multicast, FUOTA |
| Ethernet Interface |
| Port |
2 × RJ45 Ports (WAN/LAN Software Switchable) |
| Physical Layer |
10/100/1000 Base-T (IEEE 802.3) |
| Data Rate |
10/100/1000 Mbps (Auto-Sensing |
| Interface |
Auto MDI/MDIX |
| Mode |
Full/Half Duplex (Auto-Sensing) |
| Ethernet Isolation |
1.5 kV RMS |
| PoE |
1 × 802.3 af PoE PD on ETH1 Port |
| Wi-Fi Interface |
| Antenna |
1 × 50 Ω SMB - Female External Connector |
| Standards |
IEEE 802.11b/g/n, 2.4 GHz |
| Tx Power |
802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
802.11g: 18 dBm +/-2.0 dBm (6 Mbps)
802.11g: 17 dBm +/-2.0 dBm (54 Mbps)
802.11n@2.4 GHz: 17 dBm +/-2.0 dBm (MCS0_HT20)
802.11n@2.4 GHz: 16 dBm +/-2.0 dBm (MCS7_HT20)
802.11n@2.4 GHz: 17 dBm +/-2.0 dBm (MCS0_HT40)
802.11n@2.4 GHz: 16 dBm +/-2.0 dBm (MCS7_HT40) |
| Mode |
AP or Client mode |
| Security |
AP: WPA-PSK/WPA2-PSK authentication, WEP/TKIP/AES encryption
Client: WPA-PSK/WPA2-PSK/WPA-Enterprise/WPA2-Enterprise
authentication, WEP/TKIP/AES encryption |
| Cellular Interface (Optional) |
| Network |
4G LTE(CAT1)/GSM |
| Tx Power |
Class 3 (23 dBm ±2 dB) |
| Antenna |
1 × 50 Ω SMB - Female External Connector |
| Cellular Band |
L08GL (Global except North America):
LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66
LTE-TDD: B34/38/39/40/41;
GSM: B2/3/5/8
L09NA (North America):
LTE-FDD: B2/4/5/12/13/66 |
| SIM Slot |
1 (Nano SIM-4FF) |
| Data Interfaces |
| RS485 |
| Numbers |
2 × RS485 |
| Baud Rate/bps |
1200/2400/4800/9600/19200/38400/57600/115200 (Software
Switchable) |
| Terminal Resistor |
1 × 120 Ω Terminal Resistor (Software Switchable) |
| Number of Devices |
Up to 128 Devices per RS485, total 256 Devices |
| KNX |
| Numbers |
1 × KNX/TP1 |
| Bus Voltage |
21-30 V DC, via the KNX bus |
| Baud Rate |
9600 |
| Number of Devices |
Up to 63 Devices |
| M-BUS (Under Development) |
| Numbers |
1 × M-BUS |
| Voltage |
24-42V |
| Maximum Current Load |
10mA |
| Baud Rate/bps |
300/600/1200/2400/4800/9600 (Software Switchable) |
| Number of Devices |
Up to 20 Devices |
| Universal Input |
| Numbers |
8 × Universal Inputs (Software Switchable) |
| Digital Input |
Work Mode: Digital Input (Wet Contact)
Load: 0-24V DC |
| Analog Input |
Input Type: 0-10V or 4-20mA
Resolution: 12bit
Accuracy: ±1% FS |
| RTD Input |
Input Type: PT1000 or Ni1000
Input Connection: 2-wire
Accuracy: ±0.5°C |
| NTC Input |
Input Type: NTC 10K Type 2, NTC 10k Type 3 or NTC 20k
Accuracy: ±0.5°C at 25°C |
| Resistance Input |
Input Type: 1000 Ω or 2000 Ω
Accuracy: 1 Ω |
| Digital Input |
| Numbers |
4 × Dry Contact Inputs |
| Work Mode |
Digital Input, Pulse Counter |
| Frequency |
>=1000Hz |
| Digital Output |
| Numbers |
3 × Relay Outputs |
| Resistive Load |
Max. 3A@30 V DC or 3A@110 V AC |
| Analog Output |
| Numbers |
4 × Analog Outputs |
| Analog Type |
4-20mA or 0-10V (Software Switchable) |
| Maximum Load |
20mA |
| Resolution |
12 bit |
| Accuracy |
±1% FS |
| Others |
| Screen |
1.3-inch OLED Screen, 128 × 64 Pixels |
| Screen Buttons |
7 × Screen Control Buttons |
| NFC |
13.56MHz, support adding Milesight LoRaWAN® end devices |
| Reset Button |
1 × RST |
| USB |
1 × USB Type-C for Power Supply and Console |
| LED Indicators |
1 × SYS |
| Power Connector |
1 × 2-Pin Terminal Block |
| Built-in |
Watchdog, RTC, Timer |

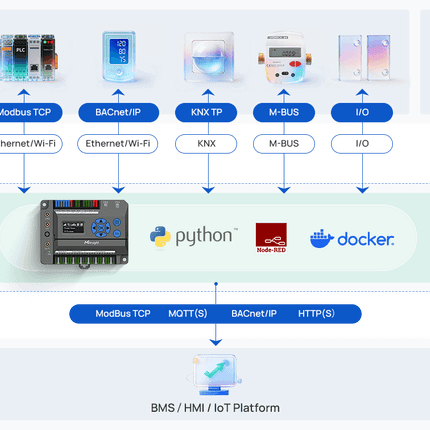

| Software |
| Building Protocol |
Data Acquisition:
RS485: Modbus RTU, BACnet MS/TP
KNX: KNX/TP
Ethernet/Wi-Fi: BACnet/IP, Modbus TCP, Modbus RTU over TCP
Data Forwarding:
MQTT(s), HTTP(s), BACnet/IP, Modbus TCP, Modbus RTU over TCP |
| VPN Tunnel |
OpenVPN/IPsec/PPTP/L2TP/WireGuard |
| Firewalls |
Access Control, DMZ, Port Mapping (DNAT), MAC Binding, Filtering
(IP&Domain) |
| DDNS |
Supported 14 service providers, others can be configured manually |
| Multilevel Authority |
Multiple Levels of User Authority |
| Reliability |
Link Failover |
| Diagnostics Tools |
Ping, Traceroute, Tcpdump, QXDM, Log Server |
| Configuration |
Web, CLI (SSH/Telnet), On-demand dial up, SNMP |
| Remote Management |
Milesight Development Platform |
| Event Alarm |
Power On, Network Up/Down, VPN Up/Down, etc. |
| App |
Python SDK, Node-RED, Docker |
| Power Supply and Consumption |
| Power Input |
1. 24 V DC/AC by Terminal Block
2. 802.3 af PoE
3. 5V/3A by USB Type-C Port1
|
| Power Consumption |
Typical 411mA@20V (8.2W), Maximum 562mA@20V (11.24 W) |
| Physical Characteristics |
| Reliability |
MTBF > 500, 000 hours @ 25°C (according to Bellcore TR-332) -non contractual |
| Ingress Protection |
IP30 |
| Housing & Color |
PC+Aluminium Alloy, Grey |
| Weight |
375.6g |
| Dimensions |
123 x 90 x 36 mm (4.84 x 3.54 x 1.42 in) |
| Wire Connection |
AWG 24-16 |
| Installation |
Wall Screw Mounting, DIN Rail Mounting |
| Environmental |
| Operating Temperature |
-40°C to +60°C (-40°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
0% to 95% (non-condensing) at 25°C/77°F |
