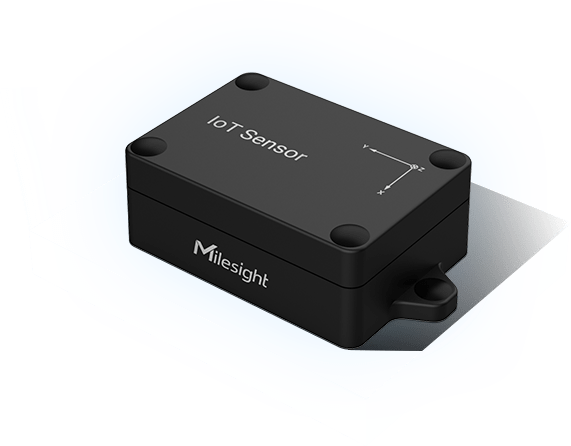

Milesight EM310-Tilt LoRaWAN Tilt Sensor
Milesight EM310 LoRaWAN® tilt sensor used for angle measurement and asset movement detection. With a compact size and3-axis accelerometer, EM310-TILT can be installed on the objects easily to measure its X, Y, and Z tilt angles.
Milesight EM310 LoRaWAN® tilt sensor makes only the settings of a relative initial surface and angle threshold are needed, and the X, Y, Z tilt angles can be leveraged to know object status accurately in real time, straightforward and effortless.
- Built-in MEMS Accelerometer Sensor
- Flexible Threshold Condition Settings
- Compact Size and IP67 Waterproof
- Easy Configuration (via NFC)
- Built-in Zero Adjustments
Built-in 3-Axis Accelerometer
Milesight EM310 LoRaWAN® Tilt can be installed to the objects easily. With X, Y, Z coordinates, the alarm will be triggered right away when the device tilt angle reaches the threshold.
Flexible Threshold Condition Settings
Up to 36 customized trigger rules, suitable for different application scenarios:
- Landslide Monitoring
- Tunnel Distortion Monitoring
- Parking Garage Barrier Monitoring
- Cranes and Construction Machines Monitoring
Specifications:
| Wireless Transmission |
Technology |
LoRaWAN®
|
| Frequency |
US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power |
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity |
-137 dBm @300bps |
| Mode |
OTAA/ABP Class A |
| Measurement |
Axis |
X, Y, Z |
| Range |
– 90° ~ +90° |
| Accuracy |
± 1° |
| Resolution |
0.01° |
| Others |
Configuration |
NFC Configuration via Mobile App |
| Button |
1 × Reset Button (Internal) |
| Physical Characteristics |
Power Supply |
2 × 3500 mAh ER17505 Li-SOCl2 Batteries |
| Operating Temperature |
-20°C to +60°C |
| Relative Humidity |
≤95% (non-condensing) |
| Ingress Protection |
IP67 |
| Dimension |
111 × 62 × 33 mm (4.37 × 2.44 × 1.30 in) |
| Material & Color |
ABS, Black |
| Installation |
On the flat surfaces with screws |
