Description

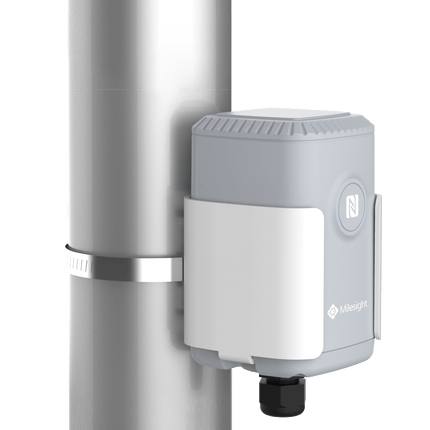

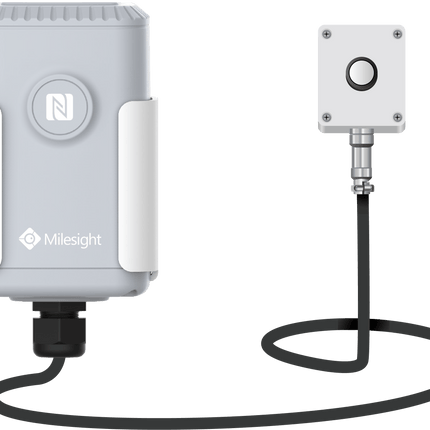

Milesight EM500-LGT Ambient Light Intensity Sensor
EM500-LGT is designed for ambient light intensity detection in harsh environments. It is useful in many applications, such as brightness control, security, horticulture, floriculture and so on.
- Measuring ranges from 0 to 100,000 lux
- Fast Response 1 second
- Easy installation in any enclosed areas or outdoors
- 10-year battery life with low maintenance cost
- Accurately detect any light changes
- 19000 mAh Li-SOCL2 battery
- NFC enabled
- IP67 rated
- Easy Installation
Specifications
|
| LoRaWAN |
Frequency |
AU915/AS923 |
| Tx Power |
20dBm |
| Sensitivity |
-147dBm @300bps |
| Mode |
OTAA/ABP Class A |
| Measurement |
Range |
0 ~ 100000 lux |
| Accuracy |
±3% |
| Resolution |
1 lux |
| Physical Characteristics |
Power Supply |
19000 mAh Li-SOCL2
|
| Operating Temperature |
-30°C to +60°C |
| Ingress Protection |
Transceiver: IP66 (IP67 as required)
Light Sensor: IP65 |
| Dimension |
156.1 × 71 × 69.5 mm |

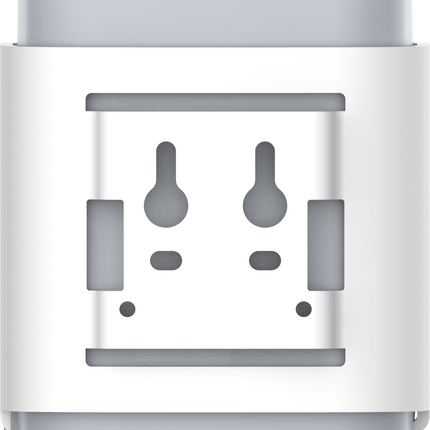

| Mounting |
DIN rail, wall, pole |
Documentations:
EM500-LGT Datasheet
