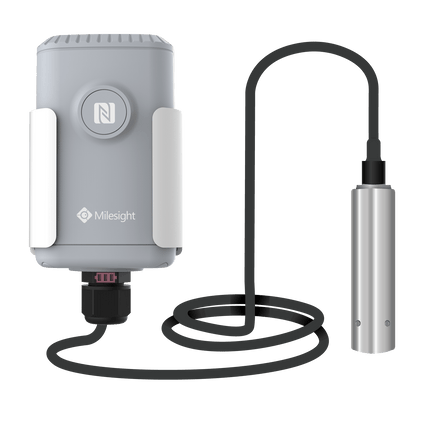

Milesight EM500-SWL LoRaWAN Submersible Water Level Sensor (up to 200 m)
EM500-SWL is designed to measure the tank level or open water applications while fully submerged in liquid. It is robust and sealed to prevent corrosion and failure.
- Customizable measuring range up to 200 m
- Submersible pressure sensor not affected by foam, wind, or rain
- IP68 full sealed plastic waterproof design (Transceiver is not included)
- Measuring medium: water (customizable for oil and other non-corrosive media)
- 19000 mAh Li-SOCL2 battery
- NFC enabled
- IP67 rated
- Easy Installation
Specifications
|
| LoRaWAN |
Frequency |
AU915/AS923 |
| Tx Power |
20dBm |
| Sensitivity |
-147dBm @300bps |
| Mode |
OTAA/ABP Class A |
| Measurement |
Range |
3m/5m/10m (Customizable up to 200m) |
| Accuracy |
±0.5% FS |
| Physical Characteristics |
Probe Length |
At least should be 1-1.5m longer than measuring range |
| Power Supply |
19000 mAh Li-SOCL |
| Operating Temperature |
Transceiver: -30°C to +70°C
Pressure Sensor: -10°C to +60°C |
| Ingress Protection |
IP66 (IP67 as required) |
| Dimension |
105.4 × 71 × 69.5 mm (Probe and cable are not included) |

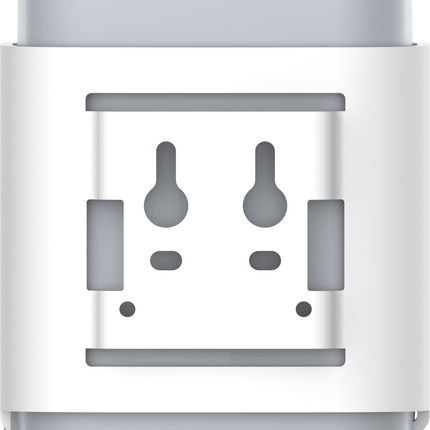

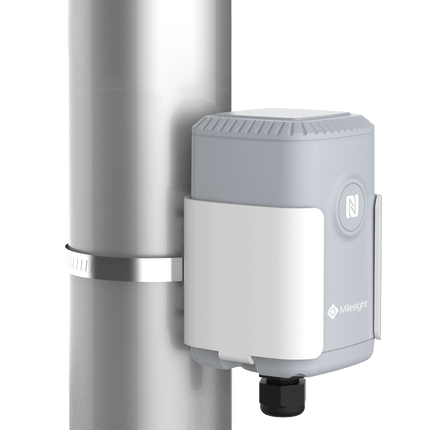

| Mounting |
DIN rail, wall |
