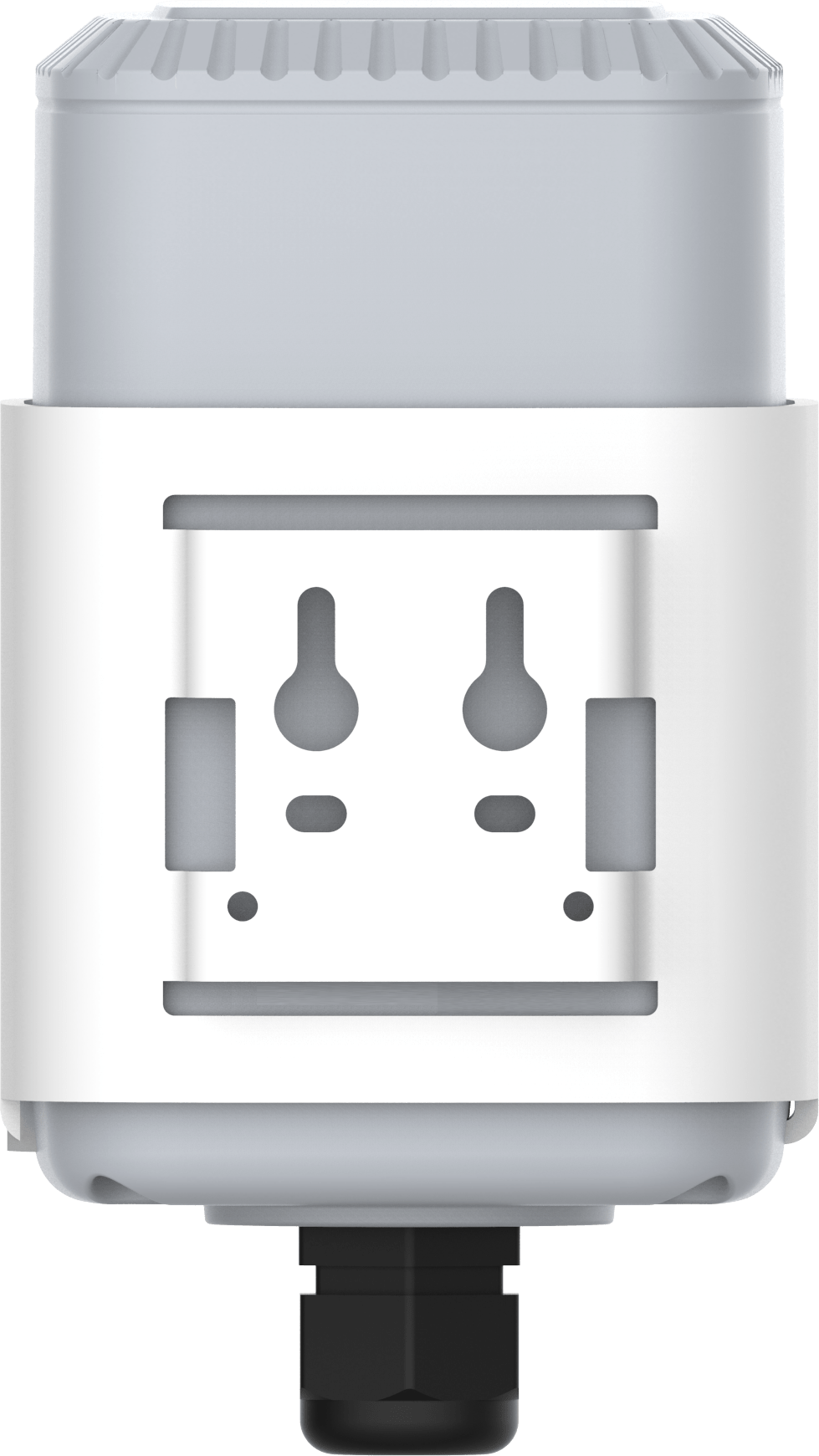

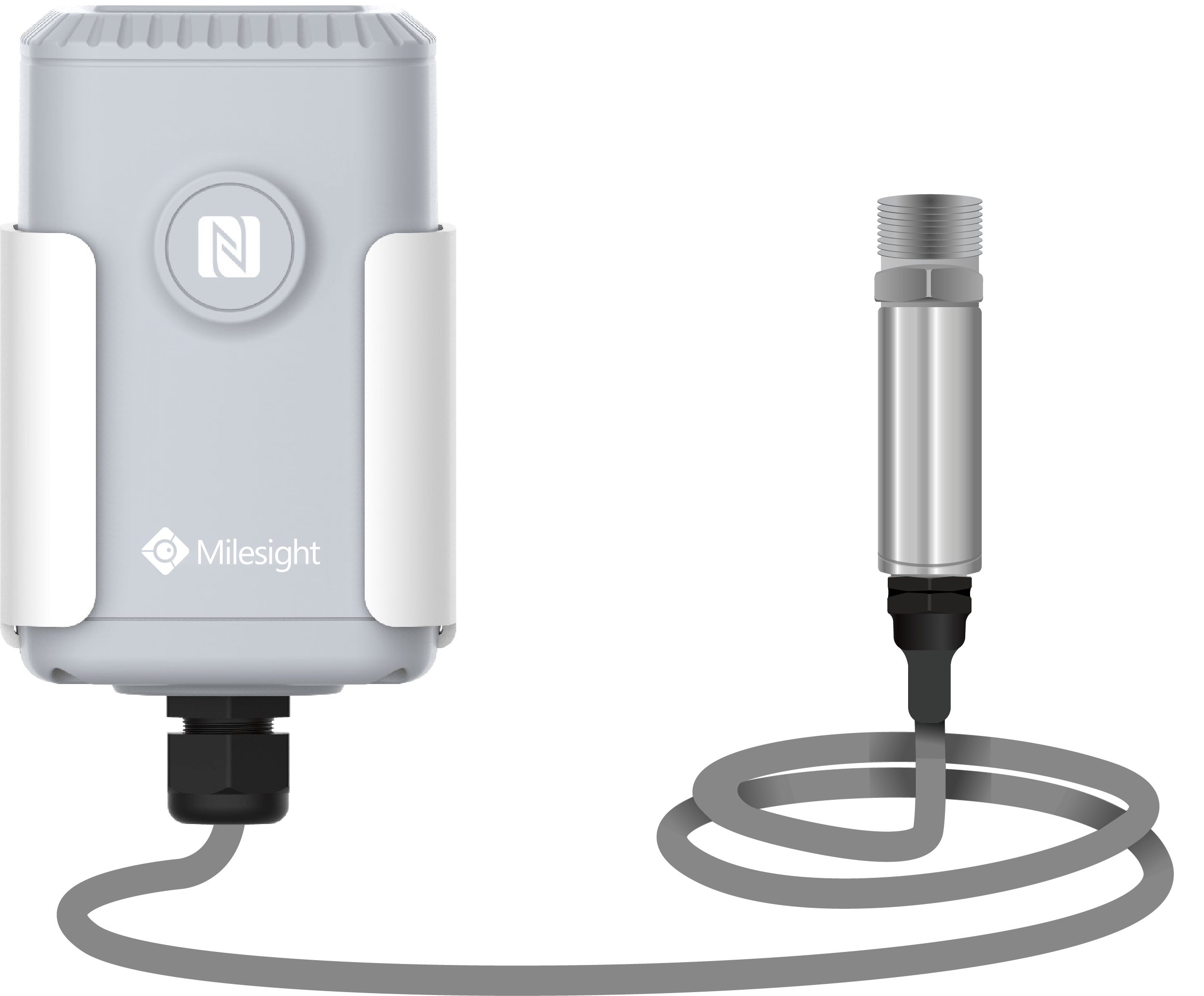

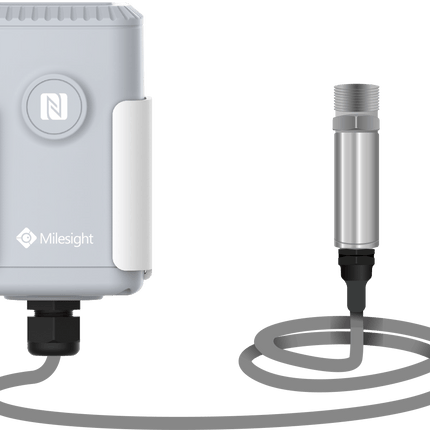

Milesight EM500-PP LoRaWAN Pipe Pressure Sensor
EM500-PP sensor is designed for measuring pressures from liquids and gases in order to realize the pressure monitoring of tank level or leakage in pipes.
- Measuring Range: 0 ~ 1600 kPa (16 Bar), customisable to other ranges, please contact us for different ranges.
- Measuring Accuracy is less than ±0.3% FS
- Temperature Compensation for High Accuracy
- Shock-resistant and Vibration-resistant
- Weather and Waterproof
- LoRaWAN Wireless Transmission with ultra-low power consumption and easy deployment
- Built-in 19000 mAh high-capacity battery can be used for 10 years.
- NFC enabled
- Easy Installation
Specifications:
|
| LoRaWAN |
Frequency |
AU915/AS923 |
| Tx Power |
20dBm |
| Sensitivity |
-147dBm @300bps |
| Mode |
OTAA/ABP Class A |
| Measurement |
Range |
0 ~ 1600 kPa (16 Bar) |
| Accuracy |
±0.5% FS |
| / |
/ |
| Physical Characteristics |
Power Supply |
19000 mAh Li-SOCL2 battery |
| Operating Temperature |
-30°C to +70°C |
| Ingress Protection |
IP66 |
| Dimension |
105.4× 71 × 69.5 mm |

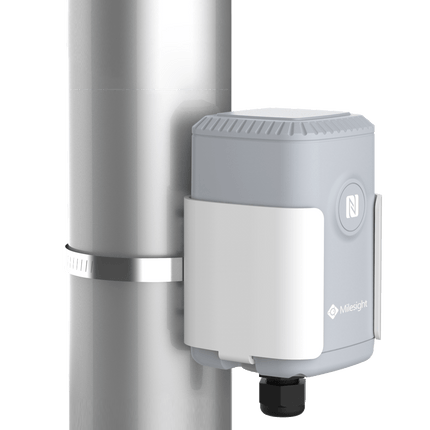

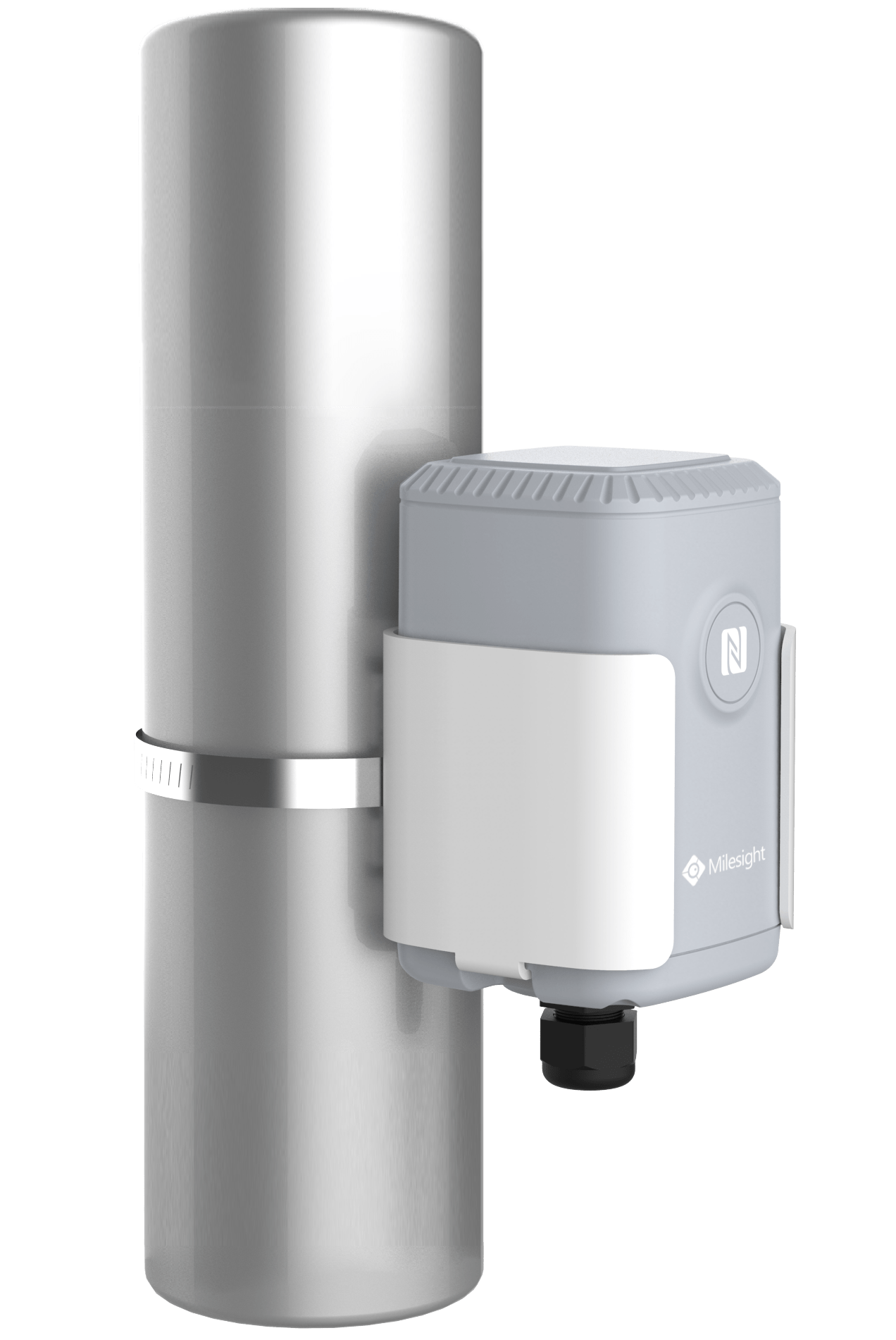

| Mounting |
DIN rail, wall |
Documentations:
EM500-PP Datasheet
