Description
Milesight EM500-PT100 LoRaWAN Industrial Temperature Sensor

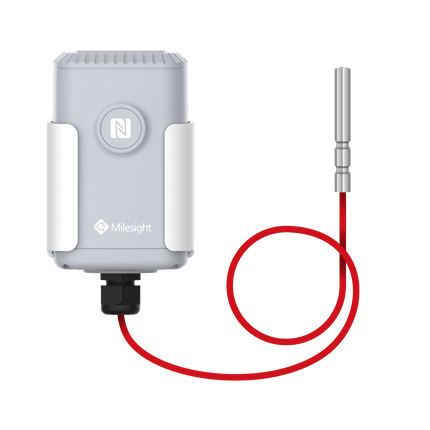

EM500-PT100 equips with a highly accurate temperature sensor PT100, the platinum resistance temperature detector offers much most stable and precise temperature measurement from -200 to 800°C.
- Customizable temperature (-200 to 800°C)
- Vibration-resistant construction
- In three-wire circuit
- Terminal heads available in straight tube, armoured, SMT, threaded, magnet
- 19000 mAh Li-SOCL2 battery
- NFC enabled
- IP67 rated
- Easy Installation
Specifications
|
| LoRaWAN |
Frequency |
AU915/AS923 |
| Tx Power |
20dBm |
| Sensitivity |
-147dBm @300bps |
| Mode |
OTAA/ABP Class A |
| Measurement |
Range |
EM500-PT100-T200: -50 °C to +200 °C
EM500-PT100-T500: -50 °C to +500 °C
EM500-PT100-T800: -50 °C to +800 °C
(Customizable from -200 °C to +800 °C) |
| Accuracy |
±0.5% |
| Physical Characteristics |
Probe Length |
1m (Customizable) |
| Probe Type |
Straight tube (Bolt-on ring, magnet and other types customizable) |
| Power Supply |
19000 mAh Li-SOCL |
| Operating Temperature |
-30°C to +70°C |
| Ingress Protection |
IP66 (IP67 as required) |
| Dimension |
105.4 × 71 × 69.5 mm (Sensor and cable are not included) |
| Mounting |
DIN rail, wall, pole mounting |
