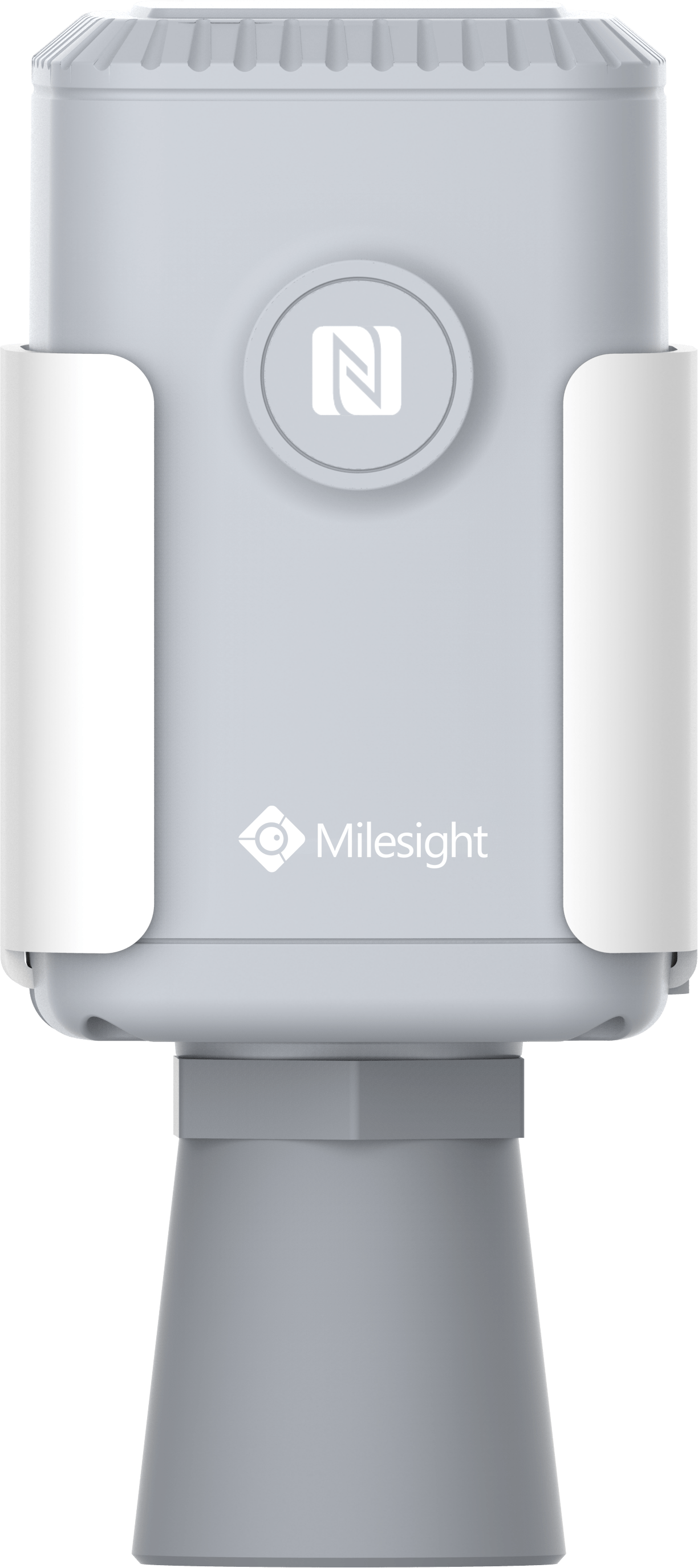

Milesight EM500-UDL LoRaWAN Ultrasonic Distance/Level Sensor
EM500-UDL provides highly accurate distance measurement for a variety of applications in harsh environments like flood monitoring, waste water management, fill level monitoring in grains or fertilizer. The measurement is based on ultrasonic waves transmitted and reflected back from nearby objects.
- 19000 mAh Li-SOCL2 battery
- NFC enabled
- IP67 rated
- Easy Installation
- Suit Applications: water, ground, trash can
Specifications
|
| LoRaWAN |
Frequency |
AU915/AS923/US915 |
| Tx Power |
20dBm |
| Sensitivity |
-147dBm @300bps |
| Mode |
OTAA/ABP Class A |
| Sensor |
Range |
EM500-UDL-W050: 0.3-5m
EM500-UDL-W100: 0.5-10m
|
| Resolution |
1 mm |
| Accuracy |
±1% |
| Physical Characteristics |
Power Supply |
19000 mAh Li-SOCl2
|
| Open Sans Regular |
-20°C to +70°C |
| Ingress Protection |
IP66 |
| Dimension |
156.1 × 71 × 69.5 mm |

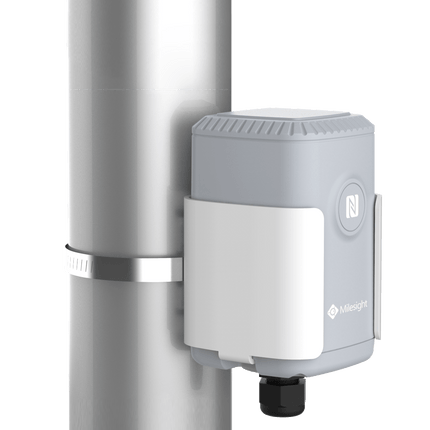

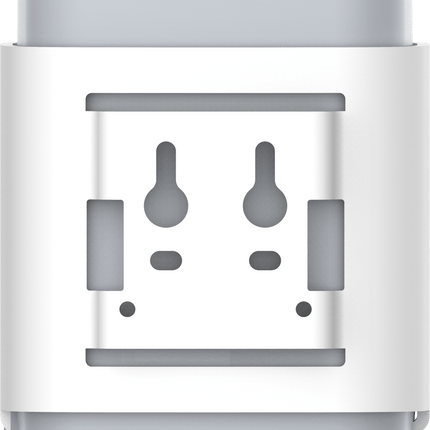

| Mounting |
Wall, DIN Rail and Pole Mounting |
