Milesight GS101 LoRaWAN Methane Gas Detector Sensor
Makes a Safer Place For All
- Event Trigger
- Built-in Self-Test Function
- Ultra Safe Gas Alarm Threshold
- 800 Records Historical Data Storing Capacity
- Up to 5-Year-Long Life Expectancy
- LoRaWAN® Based
Accidental gas leaks pose a threat to people’s life and properties. Residents need to be alerted as soon as possible once the gas leaks. Milesight GS101 is a LoRaWAN® residential gas detector that allows you to detect methane (CH4) leakage in houses, apartments, hotels, etc., and avoids potential damage before danger occurs.
LoRaWAN® gas detector features a gas alarm threshold as low as 8% Lower Explosive Limit (LEL) that quickly alerts residents to an emergency.
Triple Safety

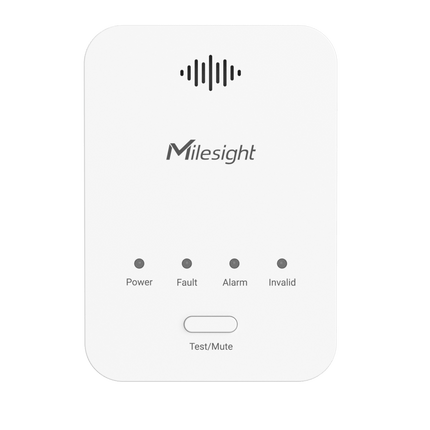

LED Alarm Indicator for Various Status
LoRaWAN® gas sensor has four status LED alarm indicators corresponding respectively to the powered, faulty, alarmed, and invalid status.
Alarm by a Buzzer
LoRaWAN® gas sensor detects methane (CH4) leakage and alerts you of danger in a buzzer with an 85dB alarm warning sound.
Report Remotely via LoRaWAN®
LoRaWAN® gas sensor is able to send notifications to alert you remotely once detects gas leakage.
Event Trigger
LoRaWAN® gas sensor is equipped with relay output and solenoid valve output to control external appliances locally such as gas valves and vent fans, reducing potential safe accidents.
LoRaWAN® Based
- LoRaWAN® gas sensor is compatible with industry-standard LoRaWAN® gateways
- With a range of up to 15 km in rural areas and 2 km in urban areas
- Easy for massive deployments and management.
Specifications:
| Wireless Transmission |
Technology |
LoRaWAN®
|
| Frequency |
AU915/US915/KR920/AS923-1&2&3&4 |
| Tx Power |
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity |
-137dBm @300bps |
| Mode |
OTAA/ABP Class C |
| Measurement and Alarms |
Detecting Gas |
Methane (CH4) |
| Detection Principle |
Semiconductor Sensor |
| Warm-up Time |
About 180s |
| Alarm Level |
8% LEL |
| Alarm Type |
Sound, Light |
| Alarm Volume |
85 dBA @1 Meter |
| Working Life |
5 Years (In Clear Air) |
| Others |
Output Signal |
1 × Relay Output: normally open, max 250 VAC/10A, |
| 1 × Solenoid Valve Output: 12V, 100ms Pulse Output |
| Button |
1 × Test/Mute/Reset/Reboot Button |
| LED Indicators |
1 × Power (Green), 1 × Fault (Yellow), 1 × Alarm (Red), 1 × Invalid (Yellow) |
| Configuration |
Mobile App via NFC |
| Historical Records Storage |
Alarm Records, Alarm Dismissed Records, Device Fault Records, Device Fault Recovered Records, Device Power On Records, Device Power Off Records, Device Invalid Records |
| Physical Characteristics |
Power Connector |
DC Jack Connector |
| Power Supply |
12VDC, 1A |
| Operating Temperature |
-10°C to +55°C |
| Relative Humidity |
0% to 95% (non-condensing) |
| Ingress Protection |
IP30 |
| Dimension |
120 × 85 × 32.5 mm (4.72 × 3.35 × 1.28 in) |
| Material & Color |
PC+ABS (Flame Retardant), White |

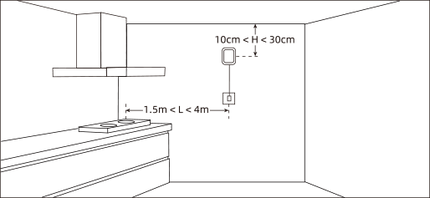

| Installation |
Wall Mounting |
