| Wireless Transmission |
| Technology |
LoRaWAN® |
| Frequency |
RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power |
16dBm (868MHz)/22dBm(915MHz) |
| Sensitivity |
-137dBm @300bps |
| Mode |
OTAA/ABP Class C |
| Sensors |
| Temperature |
| Operating Principle |
Digital CMOSens® technology (MEMS) |
| Range |
-20°C ~ 60°C |
| Accuracy |
± 0.2°C |
| Resolution |
0.1°C |
| Humidity |
| Operating Principle |
Digital CMOSens® technology (MEMS) |
| Range |
0% ~ 100% RH |
| Accuracy |
± 2% RH |
| Resolution |
0.5% RH |
| Vape Index |
| Operating Principle |
Laser Scattering |
| Range |
0 ~ 100 |
| Accuracy |
±10 |
| Resolution |
1 |
| TVOC |
| Operating Principle |
MOX (MEMS) |
| Range |
0 ~ 2000 μg/m3
|
| Accuracy |
20 μg/m3 ±15% of readings (1 ~ 500 μg/m3) |
| Resolution |
1 μg/m3
|
| PM1.0 & PM2.5 & PM10 |
| Operating Principle |
Laser Scattering |
| Range |
0 ~ 1000 μg/m3
|
PM1.0&PM2.5
Accuracy |
0~100 ug/m3: ±10 ug/m3
100~1000 ug/m3: ±10 % of measured value |
| PM10 Accuracy |
0~100 ug/m3: ±25 ug/m3
100~1000 ug/m3: ±25 % of measured value |
| Resolution |
1 μg/m3
|
| Others |

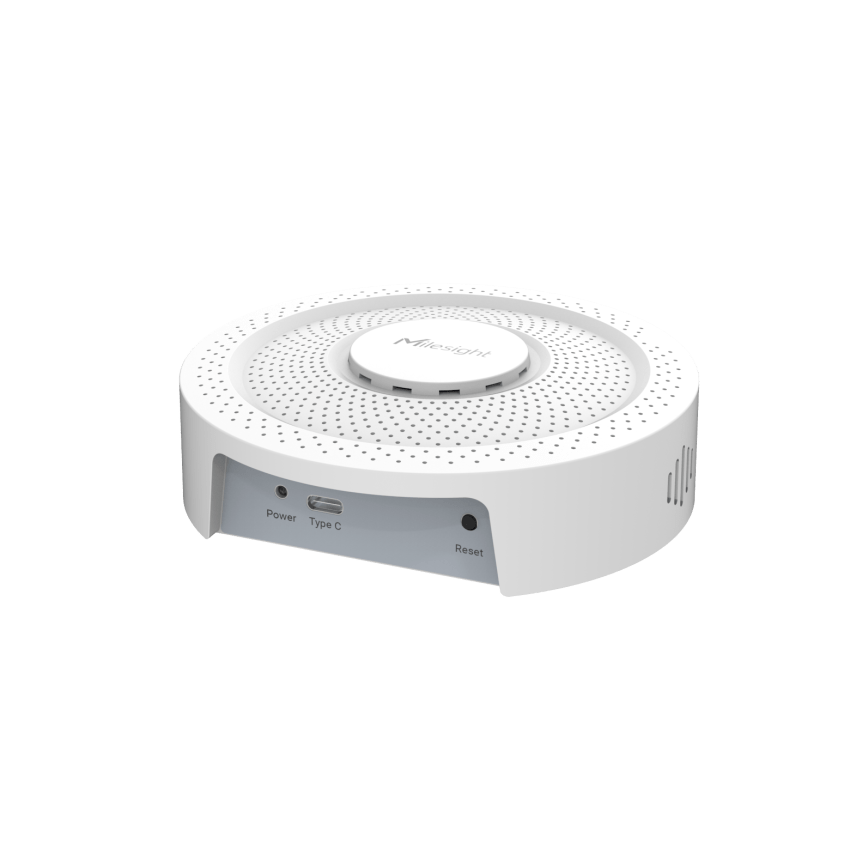

| Button |
1 × Reset Button |
| LED & Buzzer |
1 × Status/Alarm Indicator + 1 × Buzzer (70dB@1m) |
| Configuration |
Mobile App via NFC |
| Physical Characteristics |
| Power Supply |
5V/1A by Type-C Port |
| Operating Temperature |
-5°C ~ 45°C |
| Relative Humidity |
0 ~ 95% (non-condensing) |
| Ingress Protection |
IP30 |
| Dimension |
Ф 128 × 40 mm (Ф 5.04 × 1.57 in) |
| Installation |
Ceiling Mounting |
