Simplify Network Deployment with Power over Ethernet

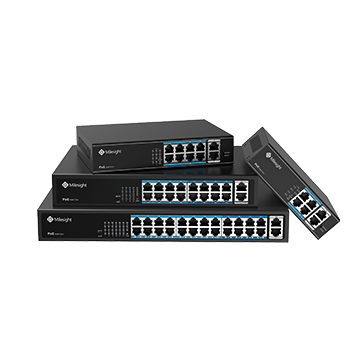

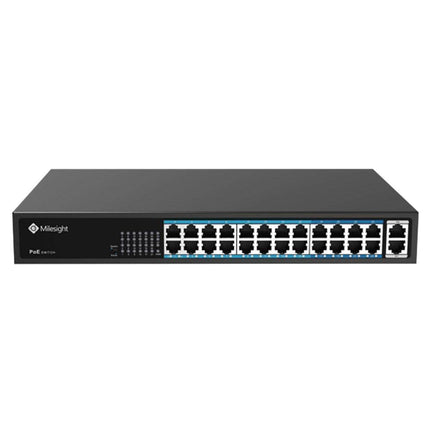

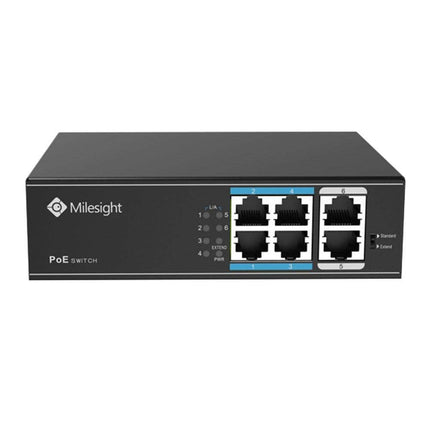

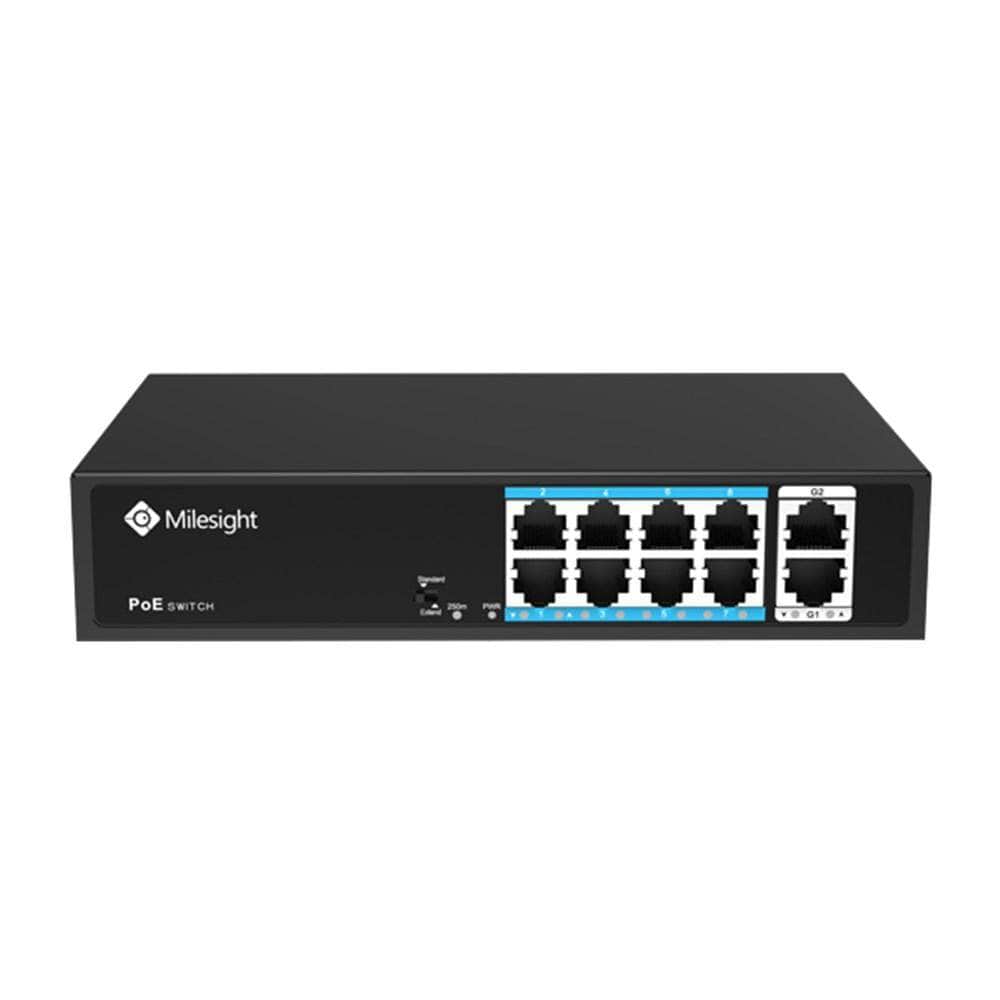

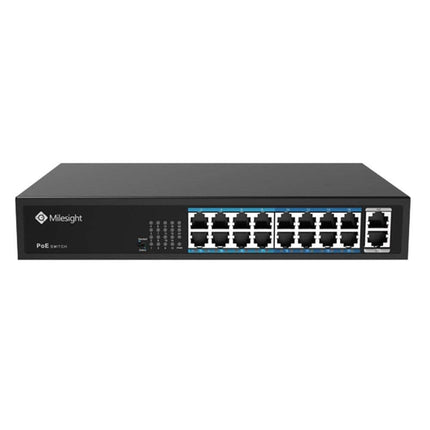

With a range of PoE ports from 4, 8, 16 to maximum 24 and 2 SFP ports, Milesight PoE Switch Series provides flexible choices for various applications. It automatically recognizes the power receiving devices and offers power. Also, transmitting the data over one single Ethernet cable, it simplifies the network deployment in remote areas without power outlet.
Featuring multiple 10/100Mbps PoE ports which support IEEE 802.3af/at protocol and 2 uplink ports, the Milesight PoE Switch Series provides maximum power budget of 400W for all PoE ports and 30W for every single PoE port respectively, allowing users to have several different camera variations configured.
With up to 14.8Gbps switching capacity, non-blocking design and full link-speed forwarding, Milesight PoE Switch Series is able to provide fluent transmission. At the same time, its reliability of data transmission is well guaranteed by the self-adaption ports which support both IEEE 802.3x Full Duplex Communication and Backpressure Half Duplex Communication.
With the extend mode, the PoE Switch Series is able to offer more flexible choices for long range transmission, extending the distance up to 250m, which is greatly helpful to bring better user experience.
With SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra high speed data transferring.
Reaching 4KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.
Abide by safety requirements of industrial standard, the Milesight PoE Switch Series is definitely reliable to bring safe performance. The exquisite metal housing, fanless design, low power consumption and continuous PoE power supply guarantee the efficient and stable running.
The plug and play with no configuration makes the maintaining as easy as ABC. With the indicator lights of PWR and Link/Act, users can easily get the working status of the connected devices. All those will have no doubt to simply the use.
| Ports (depends on model) | 10/100 Mbps PoE ports (RJ45) 1000 Mbps uplink ports |
| Standard | IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3x |
| Switching Capacity | 1.6Gbps (non-blocking) |
| Packet Forwarding Rate @64byte | 0.89Mpps |
| Packet Forwarding Cache | 768K |
| MAC | 1K |
| Power Supply | Built-in switching power supply AC 100~240V, 50-60Hz, 1A |
| PoE Standard | IEEE802.3af/at |
| Indicator | Power Indicator: PWR (green) Network Indicator: Link (yellow) PoE Working Indicator: PoE (green) Functional Switch Indicator: EXTEND (green) |
| Cooling Fan | / |
| Operating Temperature | -20° ∼ 55°C |
| Storage Temperature | -40° ∼ 75°C |
| Operating/Storage Humidity | 10%-90%RH(non-condensing) |
| Lightning Protection/ Protection Level | Port lightning protection: 4 KV 8/20 us Protection level: IP30 |
| Dimensions | 142.5 × 115 × 40 mm |
| Weight | 0.5kg |
| Installation Method | Desktop, wall |
| Warranty | 2 years |
* Naming Convention
E – 10/100Mbps Uplink Port
G – Gigabit Uplink Port
L – Extend Mode
F – Optical Fiber Port(SFP)
