Milesight Sensor Configuration Tool Open-source SCT01
- Intuitive Interface with Buttons and LED Indicators
- Large NFC Area for Easy Device Pairing
- Supports Fast Configuration
- Supports Bluetooth Connectivity for Export
- Built-In 16MB Memory, Stores Up to 50 Configuration Files
- Ideal for On-Site Deployments and Large-Scale Projects

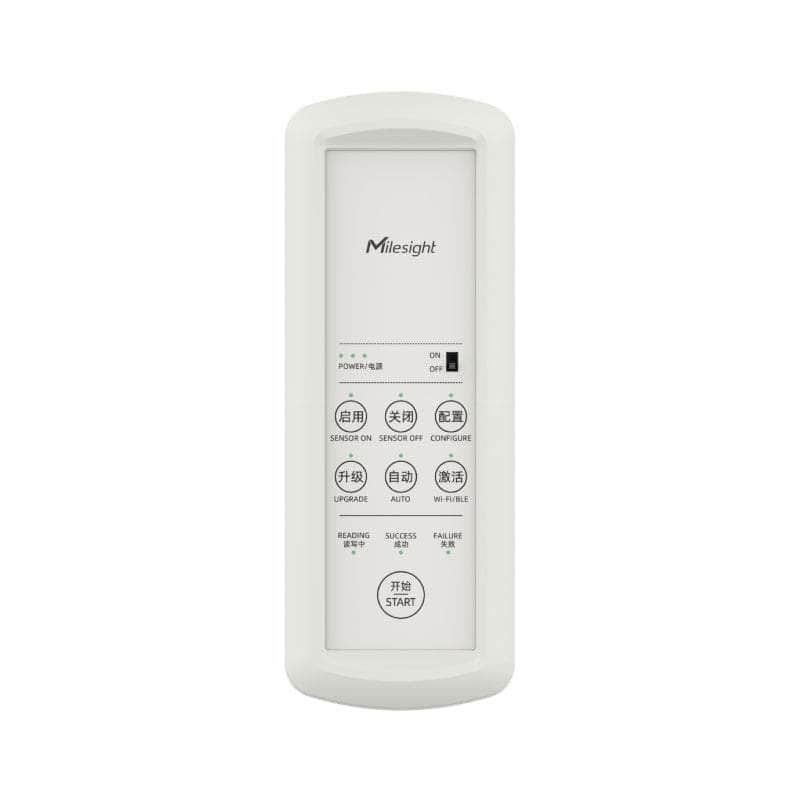

Efficient and Intuitive Configuration
The SCT01 is easy to use even for non-technical personnel. It features an intuitive button design for powering on/off, configuring, and upgrading firmware, with clear indicators and a buzzer providing operational feedback. The device supports fast, large-scale device configuration via NFC, saving time on manual setups and ideal for pre- or post-installation.
Open-Source and Customizable
The open-source nature means more possibilities of the device's configuration capabilities. With your custom development, you can enrich its configuration content, or even use it on non-Milesight devices.
Enhanced NFC Capabilities
SCT01 features an expanded NFC reading area and clear zone indicators, ensuring precise positioning and reliable data transfers with a success rate over 99.9%. It effectively addresses common misalignment issues that occur when using mobile phones for NFC configurations.

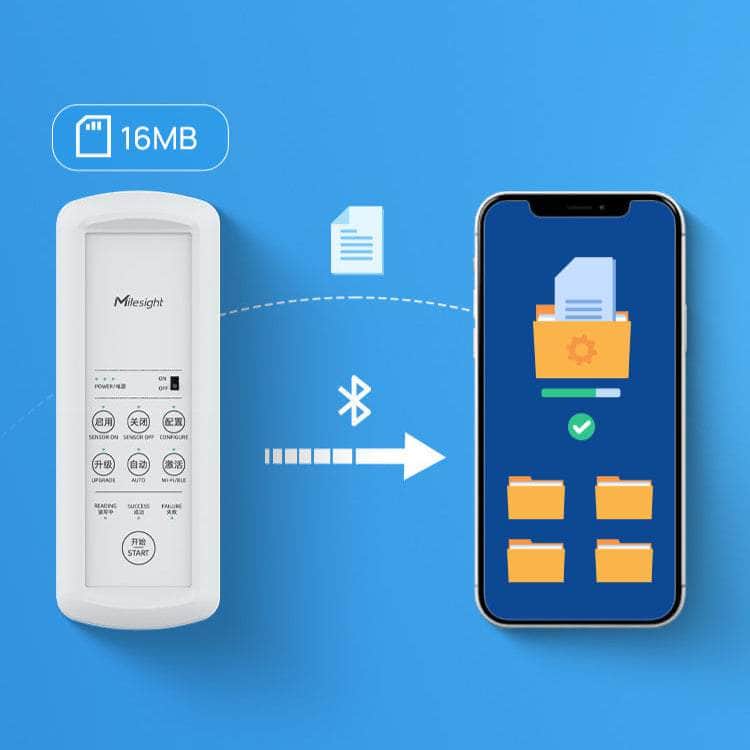

Ample Storage and Bluetooth Export
The SCT01 has 16MB of built-in memory, storing up to 50 configuration files for easy device settings management. It also supports Bluetooth export for configuration files and operation logs, enabling quick data transfer and review.
6-Hour Continuous Working Capacity
The SCT01 offers up to 6 hours of continuous read/write operations on a full charge, ensuring dependable performance. Its intelligent sleep mode conserves energy during inactivity, extending overall battery life, making it ideal for technicians on the go.
Specifications
| Interfaces |
| Bluetooth |
Bluetooth 4.0 (BLE) for Tool Configuration
Distance: 1.5 m |
| NFC |
Support ISO/IEC 14443A Protocol, Reading Distance: 1-3cm |
| Slide Switch |
1 x Power On/Off Switch |
| Button |
7 x Buttons for Sensor Power On/Off, Configuration, Upgrade, etc. |
| LED Indicator |
3 x Power, 3 x Configuration Status, 6 x Button Status |
| Buzzer |
Support to indicate configuration status |
| USB |
1 x USB 2.0 Type-C Port for:
Sensor Configuration Tool Power & Charge
Sensor Power |
| Physical Characteristics |
| Memory |
16 MB, support to store 50 configuration files and 1 firmware file |
| Power Supply |
1. Built-in 2000 mAh Chargeable Battery
2. 5V by USB Type-C |
| Battery Life* (25°C) |
Around 6 Hours (Standby Mode: Around 1 Month) |
| Operating Temperature |
-20°C - 60°C |
| Relative Humidity |
0-95% (Non-condensing) |
| Ingress Protection |
IP30 |
| Color & Material |
White, Plastic (HB Flame-retardant) |
| Dimension |
160 × 60 × 26.5 mm (6.3 × 2.36 × 1.04 in) |
| Weight |
141 g |
