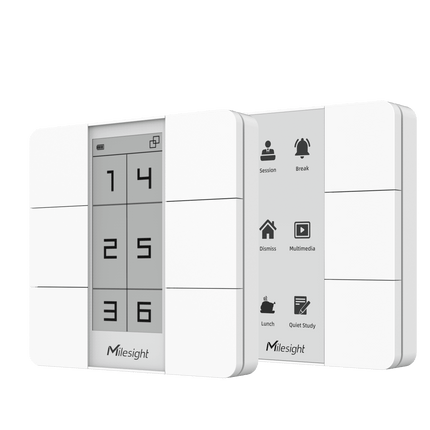

Milesight WS156 & WS136 Smart Scene Panel Indoor LoRaWAN Controller
WS136 & WS156 LoRaWAN® Smart Scene Panel gives a multi-button control panel that can simply activate different pre-defined scenes with one press. Without any additional cable, WS136 & WS156 can be easily installed anywhere and used to control devices via LoRaWAN® or Milesight LoRa D2 communication protocol. Besides, it’s equipped with a user-defined E-ink screen to suit different scenes. Compliant with the Milesight LoRaWAN® gateway or any other LoRaWAN gateways and Milesight IoT Cloud solution or 3rd party IoT clouds, WS136 & WS156 can be linked to control another Milesight or LoRaWAN device without any development.
The Milesight WS156/WS136 allows occupants to predefine 6 scenes with different surrounding ambiances which can be fast changed by pressing the button.
LoRa D2D Communication
LoRa D2D (Device to Device) protocol enables the communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway.
- Lower Latency
- 1 Second Response Time
- Secure Transmission
- Reduce Investment Cost
As a LoRa D2D Controller device, one command message sent from WS156/WS136 can be received by multiple LoRa D2D Agent devices.
Low Power Consumption:
2 × 620 mAh CR2450 Replaceable Lithium Button Batteries Up to 3 Years Battery Life (20 Presses per Day）
Specifications:
|
| Wireless Transmission |
Technology |
LoRaWAN®, LoRa D2D |
| Frequency |
AU915/AS923/US915 |
| Tx Power |
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity |
-137dBm |
| Mode |
OTAA/ABP Class A |
| Interface |
Display |

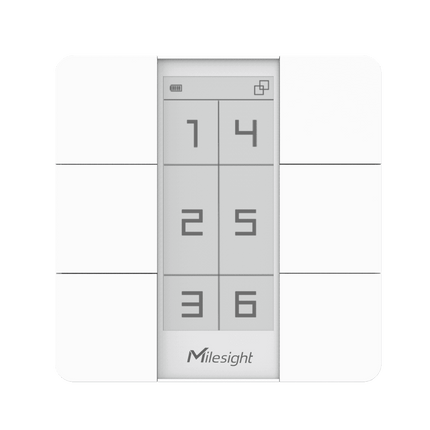

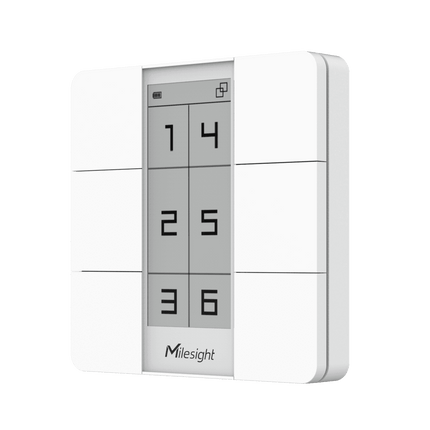

WS156: 2.9-Inch Black & White E-Ink Screen, 128 × 296 Pixels |

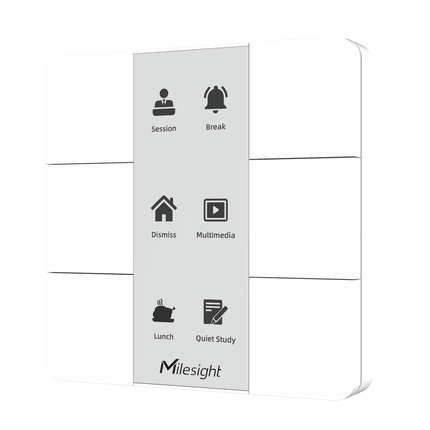

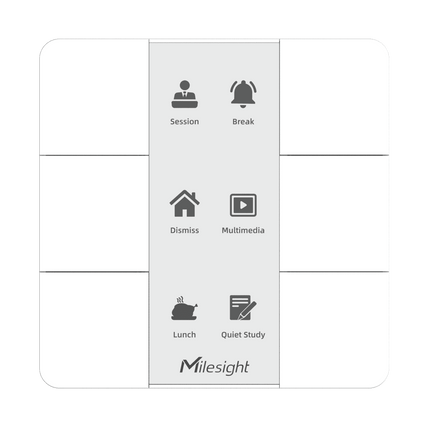

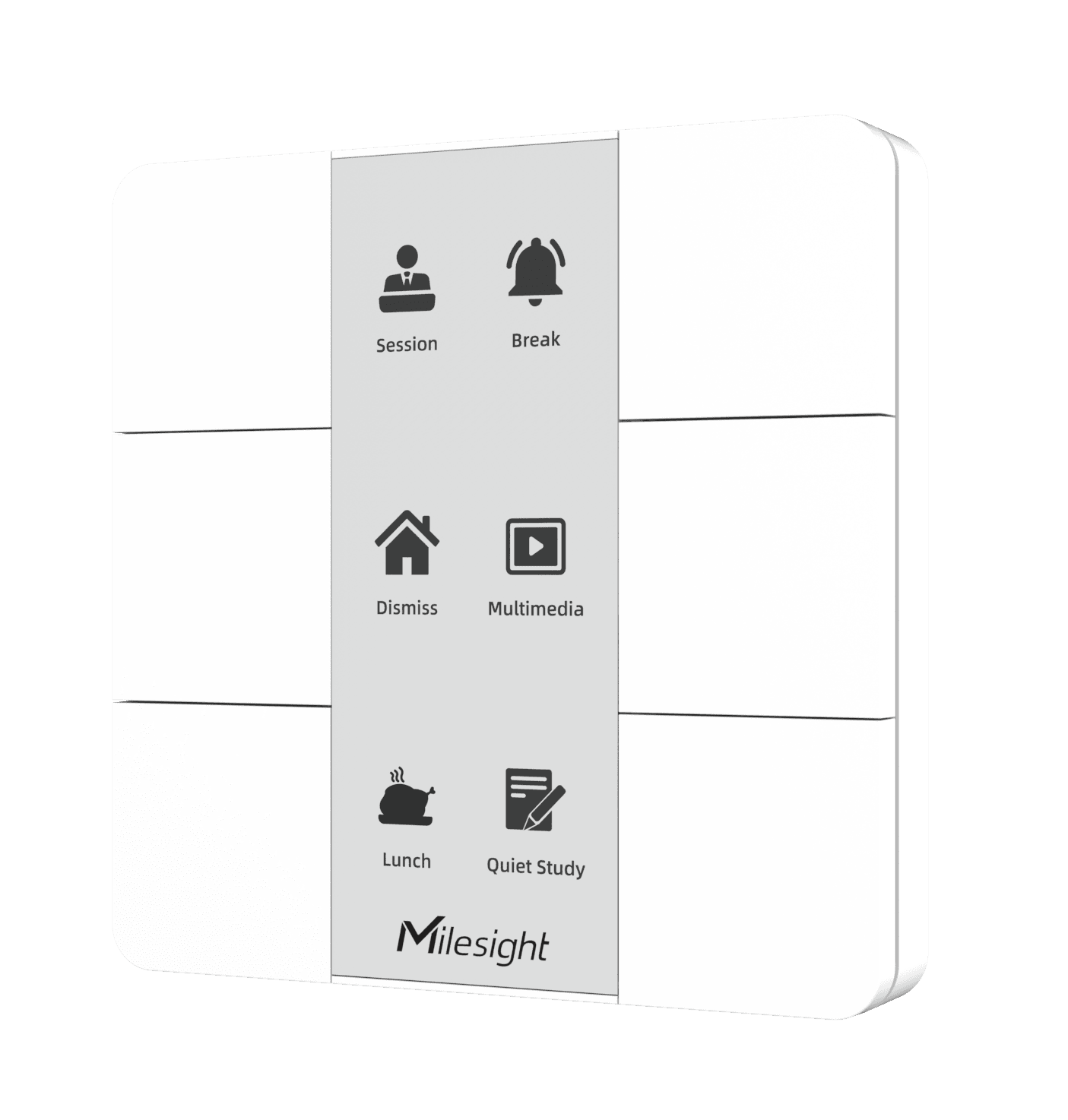

| WS136: PVC Sticker |
| Scene Button |
6 Buttons |
| Button Light |
Blue |
| Others |
1 × Reset Button (Internal) + 1 × LED Indicator |
| Software |
Configuration |
NFC |
| Advanced Features |
LoRa D2D Controller, Screen Display Customization |
| Physical Characteristics |
Power Supply |
2 × 590 mAh CR2450 Lithium Coin Cell Batteries |
| Ingress Protection |
IP30 |
| Color & Material |
White, PC + ABS |
| Operating Temperature |
-10°C to +50°C (E-Ink Screen: 0°C – 50°C) |
| Relative Humidity |
≤ 90% (Non-condensing) |
| Dimensions |
86 × 86 × 14 mm (3.39 × 3.39 × 0.55 in) |
| Installation |
Desktop, 3M Tape Mounting, 86 Box Mounting |
