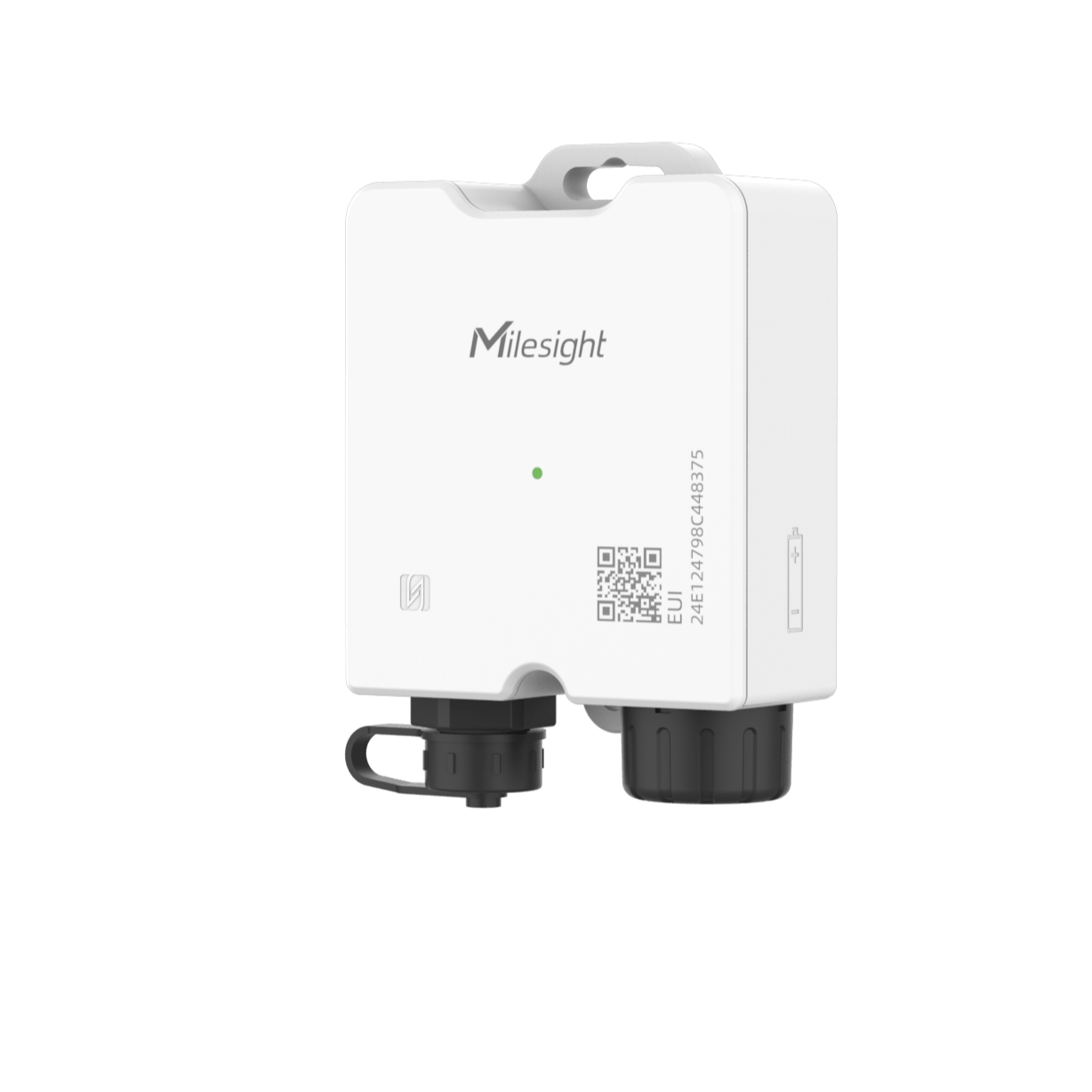

Milesight TS201 LoRaWAN Temperature Sensor
Milesight TS201 Temperature Sensor is rugged with IP67 rating offering real-time alerts, while complying with EN12830 Standard and HACCP Requirements. It is specially designed for various application scenarios like cold chain, pharmaceutical, food processing and more.
- LED Light Status Indicator
- Rugged IP67 Rating
- Up to 2,800 Sets of Data Logging
- Comply with EN12830 Standard
- Small and Compact for Flexible Installation
- LoRaWAN® Wireless Deployment
- Average Battery Life: 3 Years
- Ideal for Cold Chain and Pharmaceutical
- Support Independent Calibration of Probe
Specialized for Cold Chain Application:
Aside its cutting edge sensing technology, TS201 is designed specially for professional cold chain applications, where even the extreme temperatures would not affect its tremendous accuracy.

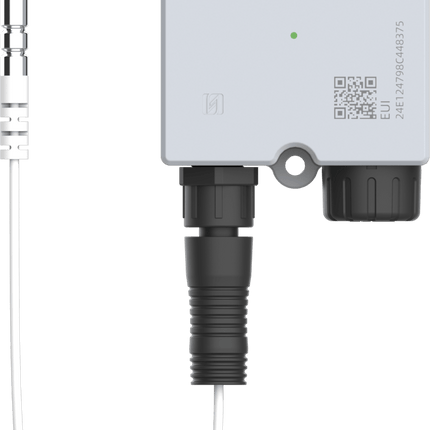

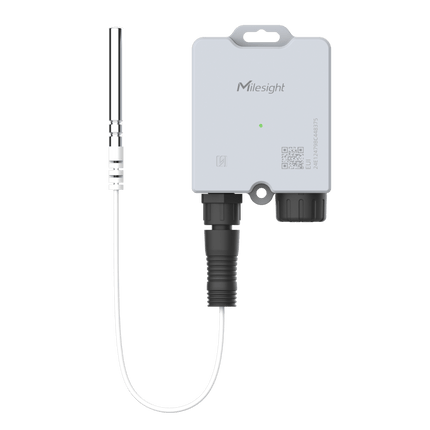

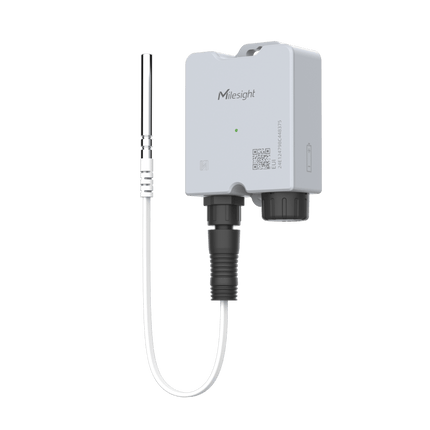

Detachable Probe for Independent Calibration
Milesight TS201 comes with a detachable sensing probe that can be calibrated independently. This ensures stable and accurate temperature sensing and monitoring, making it ideal for cold chain.
Glass Bead Thermal Buffer Bottle
An optional accessory is available to buffer readings against temporary shifts in air temperature resulting from the opening of doors or loading coolers. This is particularly useful for pharmacies, doctor's offices, and other settings that may undergo significant, temporary changes in temperature.

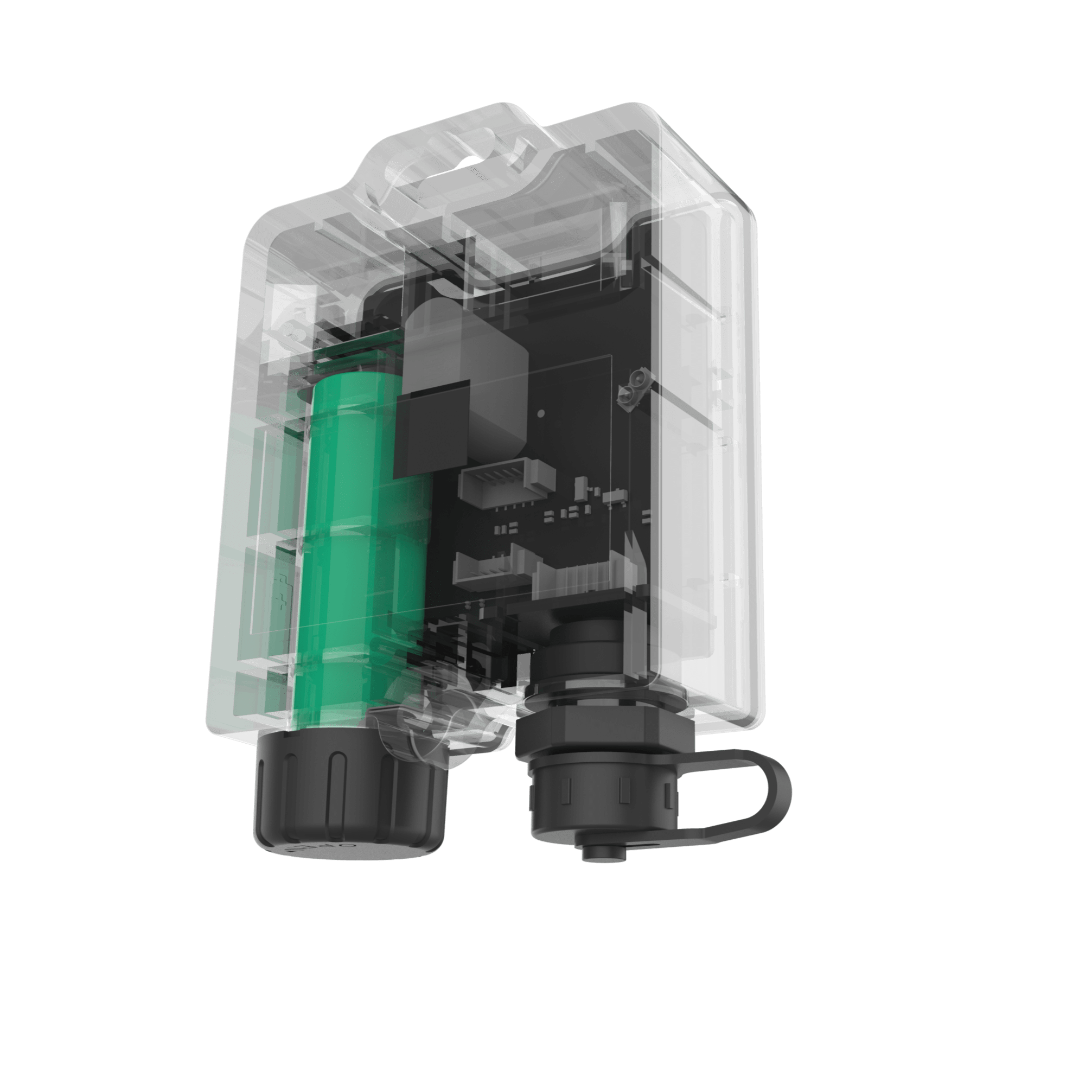

IP67 Rating and Unique Battery Compartment Design
With an IP67 rating and uniquely designed rotatable battery cover, Milesight TS201 is designed to ensure waterproof functionality, providing reliable performance even in challenging environments, while allowing multiple installation methods like wall mount, zip tie, and magnetic mount.
LoRaWAN® Based
- Penetrating Signals:data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Specifications
| Wireless Transmission |
| Protocol |
LoRaWAN® |
| Frequency |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power |
16dBm (868MHz)/22dBm (915MHz)/19dBm (470MHz) |
| Sensitivity |
-137dBm @300bps |
| Mode |
OTAA/ABP Class A |
| Sensor |
| Connector Type |
Type 1 × 5-Pin M12 A-Coded Male Connector |
| Measuring Range |
-40°C ~ 125°C |
| Accuracy |
± 0.5°C(-10°C ~ 85°C), ± 2°C(-40°C ~ -10°C, 85°C ~ 125°C) |
| Resolution |
0.1°C |
| Cable Length |
1.5 m |
| Cable Material |
TPE |
| Others |
| LED Indicator |
1 × Status Indicator |
| Configuration |
Mobile App (via NFC) |
| Advanced Feature |
Data Storage, Data Retransmission, Data Retrievability, Abrupt
Temperature Change Alarm |
| Physical Characteristics |
| Power Supply |
1 × 2700 mAh ER14505 Li-SOCL2 Battery |
| Battery Life* |
Around 3 Years (25°C, 10 min Interval, SF10)
Around 9 Years (25°C, 10 min Interval, SF7) |
| Operating Temperature |
TS201 Device: -30°C ~ 55°C (-22°F ~ 131°F)
Sensor Cable: -40°C ~ 125°C (-40°F ~ 257°F) |
| Relative Humidity |
0% to 95% (Non-condensing) |
| Ingress Protection |
IP67 |
| Dimension |
84.7 × 58 × 25 mm (3.33 × 2.28 × 0.98 in) |
| Installation |
Wall Screw Mounting, Cable-tie Mounting, Magnetic Mounting (Opt.） |
