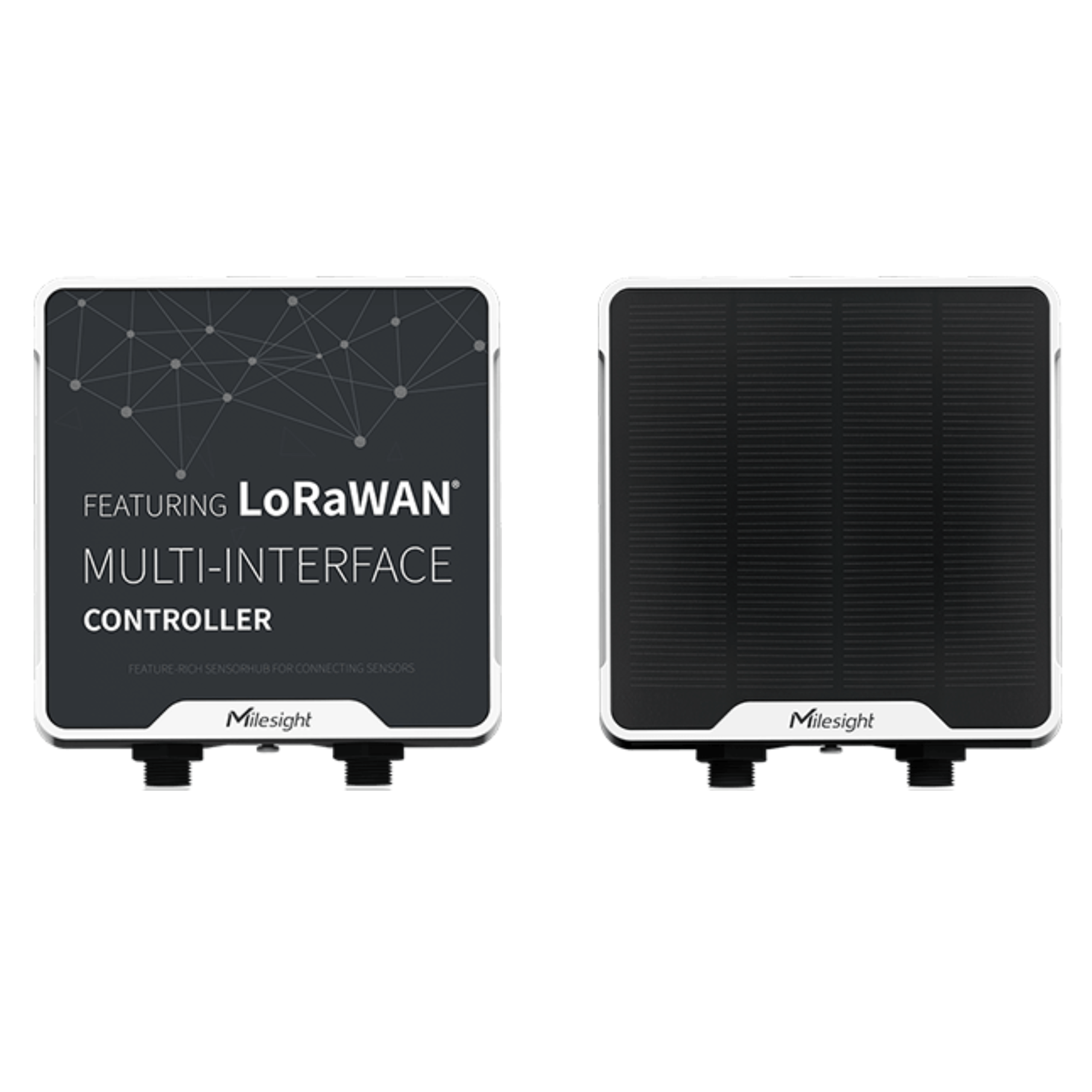

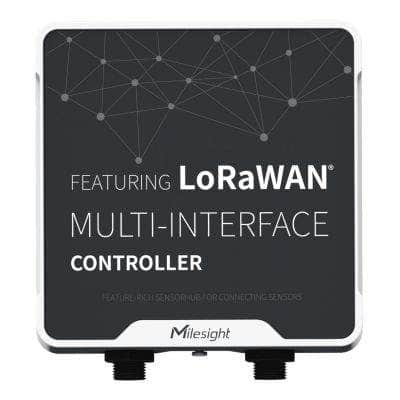

Milesight UC500 Series Multi-Interface Wireless Controller

Description


Milesight UC500 Series Multi-Interface Wireless Controller

The Milesight UC500 series is a fully integrated, IP67 waterproof, battery-powered LoRaWAN or Cellular NB-IoT CAT-M node with multiple communication interfaces for connecting to a wide range of external sensors.

  • Rich Industrial Interfaces: GPIO, AI, RS232/RS485 & SDI-12
  • SDI-12 Interface for Environmental Data Acquisition
  • Internal and External Antenna Versions Optional
  • IP67 Rated Enclosure for Harsh Environments
  • Flexible Power Supply Options
  • Data Threshold Reporting
  • Easy Configuration via NFC
  • Data Integrity and Reliability

Specifications for UC501

Wireless Transmission
LoRaWAN® Version
Antenna Internal Antenna or External Antenna (Hardware Optional)
External Antenna (EA) Version: 1 × 50 Ω SMA Female Connector
Frequency CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz)
Sensitivity -137dBm @300bps
Work Mode OTAA/ABP Class A, Class C
Cellular Version
Antenna Internal Antenna
Cellular Band NB-IoT/Cat.M Version:
Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/
B66/B71/B85
SIM Slot 1 (Micro SIM-3FF)
Application Mode TCP/UDP/MQTT/AWS
Data Interfaces
Interface Type M12 A-Coded Male
IO
Ports 2 × GPIO
Logical Level Low: 0~0.9 V, High: 2.5~3.3 V
Maximum Current 20 mA
Work Mode Digital Input, Digital Output, Pulse Counter (Software Switchable)
Serial Port
Ports 1 × RS232 or RS485 (Software Switchable)
Baud Rate 1200~115200 bps
Protocol Transparent (RS232/RS485), Modbus RTU (RS485)
Analog Input
Ports 2 × Analog Input
Resolution 12 bit
Input Range 4~20 mA or 0~10 V (Switchable)
SDI-12
Ports 1 × SDI-12
Protocol SDI-12 V1.4, Transparent
Power Output
Ports 2 × 3.3 V, 2 × 5/9/12 V(Switchable)
Power Time Before Data Collection Continuous (3.3V), 0~10 minutes (5/9/12V)
Operation
Power On & Off LoRaWAN® Version: Mobile App (via NFC), PC Software (via USB Type-C), Power Button (Internal)
Cellular Version: Mobile App (via NFC), Power Button (Internal)
Configuration LoRaWAN® Version: Mobile App (via NFC) or PC software (via USB Type-C)
Cellular Version: Mobile App (via NFC)
Physical Characteristics
Power Connector 1 × M12 A-Coded Male Interface
Power Supply 1. 2 × 2550 mAh Chargeable Batteries

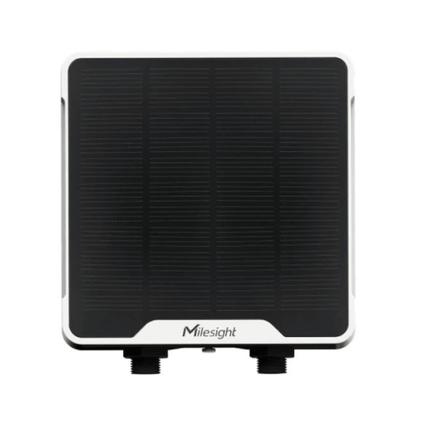

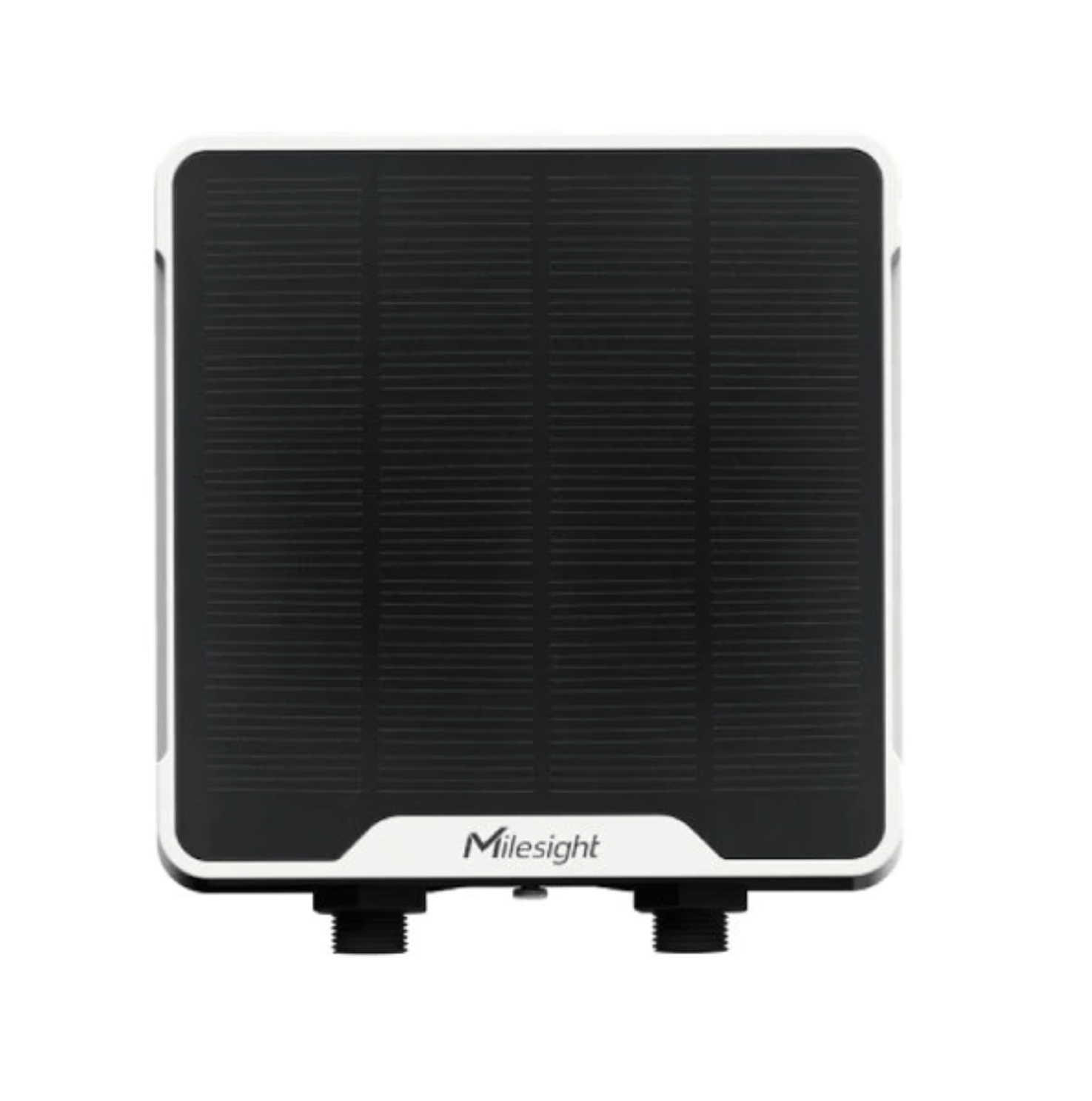

2. Solar powered (6V, 1.7W)
3. 5-24 VDC
Operating Temperature -20°C~60°C
Ingress Protection IP67
Dimension 116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) (Connectors Excluded)
Installation Wall or Pole Mounting

Rich Industrial Interfaces

The UC50x Series features multiple industrial interfaces to monitor and control field sensors or devices simultaneously.

SDI-12 Interface for Environmental Data Acquisition

The UC50x Series is equipped with SDI-12 interface, making it incredibly easy to connect a wide range of instruments used for environmental monitoring. This includes weather sensors, hydrological sensors, agricultural sensors, etc. With SDI-12 support, the UC50x series expands its versatility and adaptability across multiple domains.

Ultra-Rugged Enclosure for Harsh Environment

The UC50x Series is equipped with an IP67 rated enclosure and an M12 connector that offer robust protection against water ingress, corrosion, and vibrations. This combination of features ensures long-term, dependable operation in challenging all-weather environments.

Internal and External Antenna Versions Options

The UC50x Series provides flexibility in antenna placement, ensuring optimal signal strength and range, even in environments with obstacles or challenging RF conditions.

Analog Input Value Conversion

The UC50x series simplifies data interpretation and utilization for users by directly converting received sensor values into meaningful measurements for connected devices, eliminating the need for manual conversion.

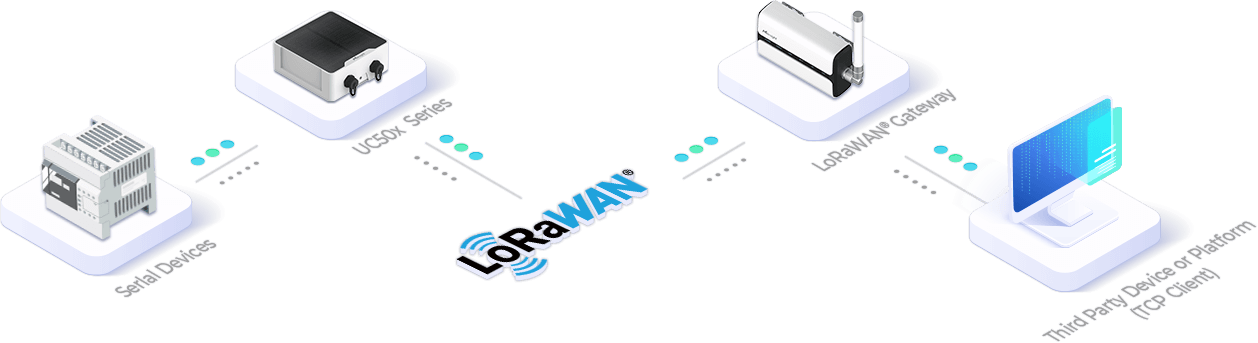

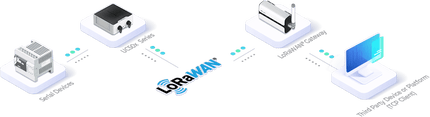

LoRaWAN® Based

Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
High Compatibility: compliant with standard LoRaWAN® gateways and network servers

NB-loT & CAT M Versions Available


Stable Transmission: Reliable data transmission via cellular base stations
Low Deployment Cost: Low deployment cost due to the presence of existing cellular base stations

Cumulative Reporting: Accumulate up to 12 data packets in each report saving transmission cost and power consumption

Ultra-high Compatibility: Integrate with various 3rd party platforms through MQTT\TCP\UDP communication.

Support cumulative number report function for power saving
Support multiple network protocols to be compatible with IoT platform

Store Capacity Up to 10000 Sets of Historical Data Records

Data can be stored in the device and cannot be manually deleted, further securing
the traceability of the reported information.

LoRaWAN® Version: Up to 600
LTE Version: 600 ~ 10000

Support Retransmission for Reliable Communication

With support for data retransmission, the device guarantees that the web server gets all the data even if the network is down occasionally.



Documentations:





Milesight UC500 Series Multi-Interface Wireless Controller

Product form

SKU: UC501-915M-EA

$349.00 $299.00 Excl. GST

$299.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description


    Milesight UC500 Series Multi-Interface Wireless Controller

    The Milesight UC500 series is a fully integrated, IP67 waterproof, battery-powered LoRaWAN or Cellular NB-IoT CAT-M node with multiple communication interfaces for connecting to a wide range of external sensors.

    • Rich Industrial Interfaces: GPIO, AI, RS232/RS485 & SDI-12
    • SDI-12 Interface for Environmental Data Acquisition
    • Internal and External Antenna Versions Optional
    • IP67 Rated Enclosure for Harsh Environments
    • Flexible Power Supply Options
    • Data Threshold Reporting
    • Easy Configuration via NFC
    • Data Integrity and Reliability

    Specifications for UC501

    Wireless Transmission
    LoRaWAN® Version
    Antenna Internal Antenna or External Antenna (Hardware Optional)
    External Antenna (EA) Version: 1 × 50 Ω SMA Female Connector
    Frequency CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
    Tx Power 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz)
    Sensitivity -137dBm @300bps
    Work Mode OTAA/ABP Class A, Class C
    Cellular Version
    Antenna Internal Antenna
    Cellular Band NB-IoT/Cat.M Version:
    Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
    Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/
    B66/B71/B85
    SIM Slot 1 (Micro SIM-3FF)
    Application Mode TCP/UDP/MQTT/AWS
    Data Interfaces
    Interface Type M12 A-Coded Male
    IO
    Ports 2 × GPIO
    Logical Level Low: 0~0.9 V, High: 2.5~3.3 V
    Maximum Current 20 mA
    Work Mode Digital Input, Digital Output, Pulse Counter (Software Switchable)
    Serial Port
    Ports 1 × RS232 or RS485 (Software Switchable)
    Baud Rate 1200~115200 bps
    Protocol Transparent (RS232/RS485), Modbus RTU (RS485)
    Analog Input
    Ports 2 × Analog Input
    Resolution 12 bit
    Input Range 4~20 mA or 0~10 V (Switchable)
    SDI-12
    Ports 1 × SDI-12
    Protocol SDI-12 V1.4, Transparent
    Power Output
    Ports 2 × 3.3 V, 2 × 5/9/12 V(Switchable)
    Power Time Before Data Collection Continuous (3.3V), 0~10 minutes (5/9/12V)
    Operation
    Power On & Off LoRaWAN® Version: Mobile App (via NFC), PC Software (via USB Type-C), Power Button (Internal)
    Cellular Version: Mobile App (via NFC), Power Button (Internal)
    Configuration LoRaWAN® Version: Mobile App (via NFC) or PC software (via USB Type-C)
    Cellular Version: Mobile App (via NFC)
    Physical Characteristics
    Power Connector 1 × M12 A-Coded Male Interface
    Power Supply 1. 2 × 2550 mAh Chargeable Batteries
    2. Solar powered (6V, 1.7W)
    3. 5-24 VDC
    Operating Temperature -20°C~60°C
    Ingress Protection IP67
    Dimension 116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) (Connectors Excluded)
    Installation Wall or Pole Mounting

    Rich Industrial Interfaces

    The UC50x Series features multiple industrial interfaces to monitor and control field sensors or devices simultaneously.

    SDI-12 Interface for Environmental Data Acquisition

    The UC50x Series is equipped with SDI-12 interface, making it incredibly easy to connect a wide range of instruments used for environmental monitoring. This includes weather sensors, hydrological sensors, agricultural sensors, etc. With SDI-12 support, the UC50x series expands its versatility and adaptability across multiple domains.

    Ultra-Rugged Enclosure for Harsh Environment

    The UC50x Series is equipped with an IP67 rated enclosure and an M12 connector that offer robust protection against water ingress, corrosion, and vibrations. This combination of features ensures long-term, dependable operation in challenging all-weather environments.

    Internal and External Antenna Versions Options

    The UC50x Series provides flexibility in antenna placement, ensuring optimal signal strength and range, even in environments with obstacles or challenging RF conditions.

    Analog Input Value Conversion

    The UC50x series simplifies data interpretation and utilization for users by directly converting received sensor values into meaningful measurements for connected devices, eliminating the need for manual conversion.

    LoRaWAN® Based

    Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
    High Compatibility: compliant with standard LoRaWAN® gateways and network servers

    NB-loT & CAT M Versions Available


    Stable Transmission: Reliable data transmission via cellular base stations
    Low Deployment Cost: Low deployment cost due to the presence of existing cellular base stations

    Cumulative Reporting: Accumulate up to 12 data packets in each report saving transmission cost and power consumption

    Ultra-high Compatibility: Integrate with various 3rd party platforms through MQTT\TCP\UDP communication.

    Support cumulative number report function for power saving
    Support multiple network protocols to be compatible with IoT platform

    Store Capacity Up to 10000 Sets of Historical Data Records

    Data can be stored in the device and cannot be manually deleted, further securing
    the traceability of the reported information.

    LoRaWAN® Version: Up to 600
    LTE Version: 600 ~ 10000

    Support Retransmission for Reliable Communication

    With support for data retransmission, the device guarantees that the web server gets all the data even if the network is down occasionally.



    Documentations:
