Milesight UG56 Indoor LoRaWAN Gateway 8-CH WiFi POE

Description

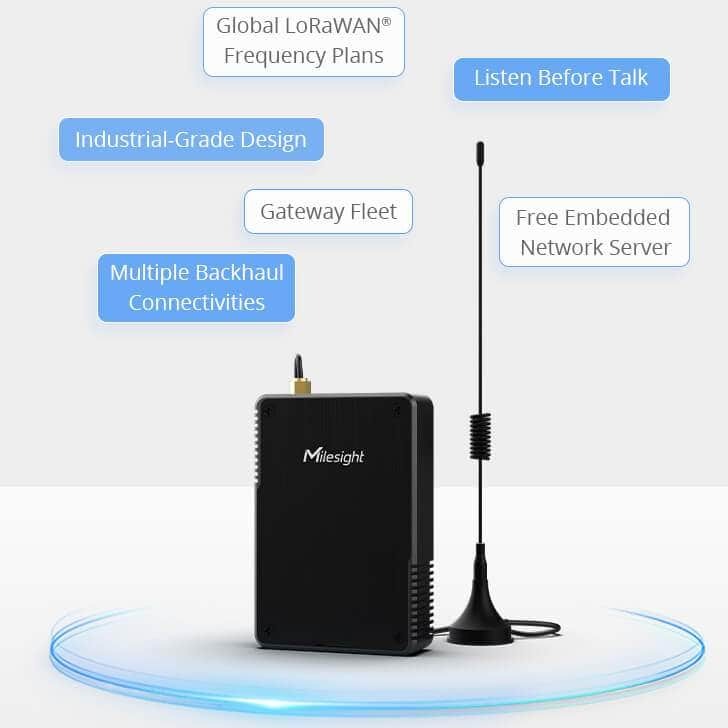

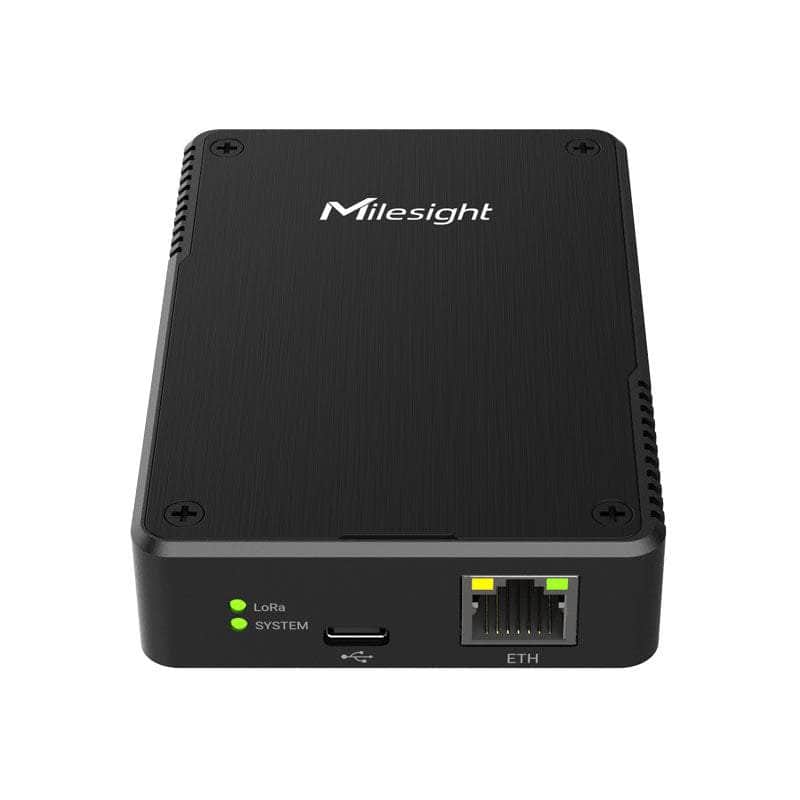

Milesight UG56 Indoor LoRaWAN Gateway 8-CH WiFi POE

UG56 is a high-performance 8-channel LoRaWAN® gateway that offers reliable connectivity for industrial applications.

  • Industrial-Grade Design
  • Listen Before Talk
  • Gateway Fleet
  • Free Embedded Network Server
  • Multiple Backhaul Connectivities
  • Global LoRaWAN® Frequency Plans

Penetrating Obstructions Through and Through

Penetrate three floors up and down in the building, and cover a radius of up to 2 km in urban areas and 15 km in rural areas.

Towards Massive Connectivity for IoT Deployments

  • 8 Channels
  • Quad-core CPU

Adopting Semtech SX1302 LoRa chip, UG56 supports connection
with more than 2000 LoRaWAN® nodes.

Optimizing Coverage and Placement Concurrently

The compact size makes it possible to embed UG56 into a small equipment cabinet. Users can install the magnetic antenna or fiber-glass antenna (optional) at a signal-optimized place to cover more areas.


Gateway Fleet

The Gateway Fleet feature enables multiple agent gateways to transmit received data to one controller gateway, which facilitates the deployment and management of the LoRaWAN® network.

Listen Before Talk

UG56 supports Listen Before Talk which makes it possible for multiple devices to share the same channel, reduce channel conflict and improve the overall transmission environment.

Enabling Multiple Backhaul Connectivities

Stay connected via Ethernet, cellular, and Wi-Fi.

Supporting Multiple Network Servers

Besides the built-in network server, UG56 is also compatible with multiple network server platforms like TTN, ChirpStack, Everynet, Senet, etc.

Integrating with Building Management System Using BACnet

With support for BACnet/IP, real-time data can be seamlessly integrated into
existing Building Management System (BMS).

BACnet over LoRaWAN®LoRaWAN® as a Complementary Network

  • LoRaWAN® serves as the data channel to the control applications
  • No changes to the BACnet protocol, network, or BACnet-enabled devices and management systems are needed
  • LoRaWAN® network is independent of the core BACnet infrastructure
  • The LoRaWAN® network feeds data to the BMS through a virtual BACnet server
  • LoRaWAN® data and sensors appear to be part of the BACnet system
Learn How to Integrate LoRaWAN® Sensor to BACnet



Documents:

UG56 Datasheet

UG56 User Guide



Read more

Milesight UG56 Indoor LoRaWAN Gateway 8-CH WiFi POE

Product form
Free pickup in our shop(s)

SKU: UG56

$469.00 $419.00 Excl. GST

$419.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    Milesight UG56 Indoor LoRaWAN Gateway 8-CH WiFi POE

    UG56 is a high-performance 8-channel LoRaWAN® gateway that offers reliable connectivity for industrial applications.

    • Industrial-Grade Design
    • Listen Before Talk
    • Gateway Fleet
    • Free Embedded Network Server
    • Multiple Backhaul Connectivities
    • Global LoRaWAN® Frequency Plans

    Penetrating Obstructions Through and Through

    Penetrate three floors up and down in the building, and cover a radius of up to 2 km in urban areas and 15 km in rural areas.

    Towards Massive Connectivity for IoT Deployments

    • 8 Channels
    • Quad-core CPU

    Adopting Semtech SX1302 LoRa chip, UG56 supports connection
    with more than 2000 LoRaWAN® nodes.

    Optimizing Coverage and Placement Concurrently

    The compact size makes it possible to embed UG56 into a small equipment cabinet. Users can install the magnetic antenna or fiber-glass antenna (optional) at a signal-optimized place to cover more areas.


    Gateway Fleet

    The Gateway Fleet feature enables multiple agent gateways to transmit received data to one controller gateway, which facilitates the deployment and management of the LoRaWAN® network.

    Listen Before Talk

    UG56 supports Listen Before Talk which makes it possible for multiple devices to share the same channel, reduce channel conflict and improve the overall transmission environment.

    Enabling Multiple Backhaul Connectivities

    Stay connected via Ethernet, cellular, and Wi-Fi.

    Supporting Multiple Network Servers

    Besides the built-in network server, UG56 is also compatible with multiple network server platforms like TTN, ChirpStack, Everynet, Senet, etc.

    Integrating with Building Management System Using BACnet

    With support for BACnet/IP, real-time data can be seamlessly integrated into
    existing Building Management System (BMS).

    BACnet over LoRaWAN®LoRaWAN® as a Complementary Network

    • LoRaWAN® serves as the data channel to the control applications
    • No changes to the BACnet protocol, network, or BACnet-enabled devices and management systems are needed
    • LoRaWAN® network is independent of the core BACnet infrastructure
    • The LoRaWAN® network feeds data to the BMS through a virtual BACnet server
    • LoRaWAN® data and sensors appear to be part of the BACnet system
    Learn How to Integrate LoRaWAN® Sensor to BACnet



    Documents:

    UG56 Datasheet

    UG56 User Guide



    Read more
