Description

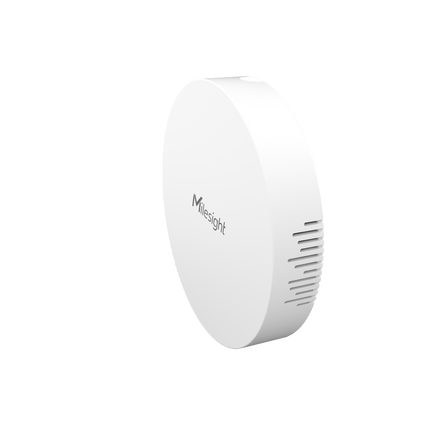

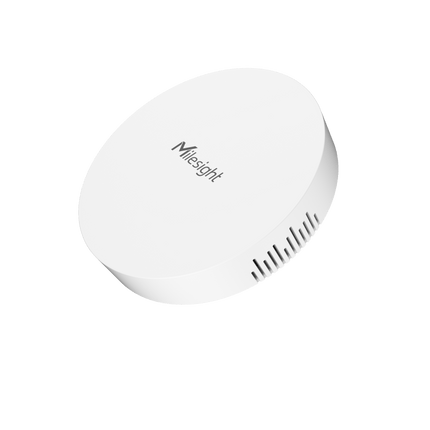

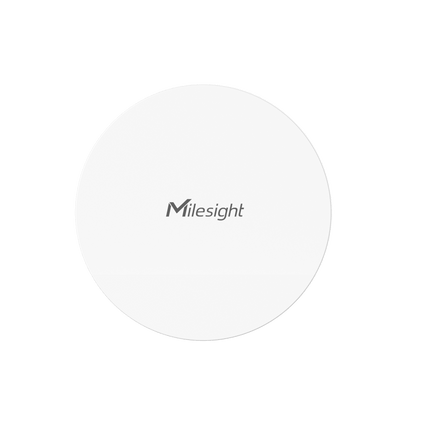

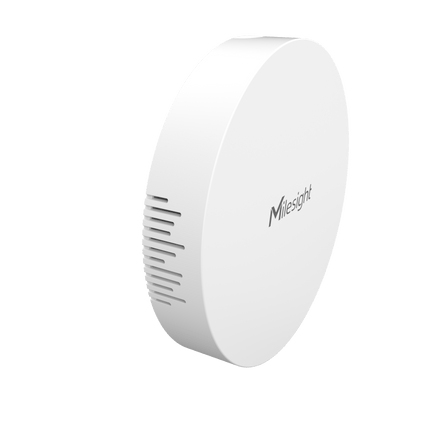

Milesight UG63 V2 Indoor LoRaWAN Gateway 8-CH POE
UG63 is an 8-channel lightweight indoor LoRaWAN® gateway. Adopting the SX1302 LoRa chip and high-performance CPU, UG63 supports connection with up to 2000 end-nodes and can cover 15 km in sight and about 2 km in an urbanised environment. With its compact size, it is ideally suited for offices, parking lots, campuses, hotels, exhibition centers, and many other indoor areas. It also applies to provide coverage for indoor blind spots.
UG63 has both integrated mainstream network servers (such as TTN, ChirpStack, etc.), and a built-in network server, and it is compatible with Milesight IoT Cloud and other 3rd part clouds for easy deployment.
Eye-Catching Design:
Sticking to minimalism, the UG63 Mini LoRaWAN® Gateway is as small as a disk. Coupled with an elegant and aesthetic appearance, UG63 is in perfect accord with the office surroundings.
Blind Spot Coverage:
Besides the general features of a LoRaWAN® gateway, the Gateway Fleet makes UG63 particularly suited for providing network coverage for indoor blind spots.
Listen Before Talk:
The Listen Before Talk (LBT) protocol makes it possible for multiple transmitting nodes to share the same transmitting channel, which allows the device to bypass the Duty Cycle requirement imposed by European standards.
Specifications:
| Hardware System |
| CPU |
Dual-core 240MHz, 32-bit Xtensa® LX7 |
| Memory |
8 MB PSRAM |
| Flash |
16 MB Flash |
| LoRaWAN® |
| Antenna Connector |
1 × External Antenna |
| Channel |
8 (Half-duplex) |
| Frequency Band |
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity |
-140dBm Sensitivity @292bps |
| Output Power |
27dBm Max |
| Protocol |
V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |

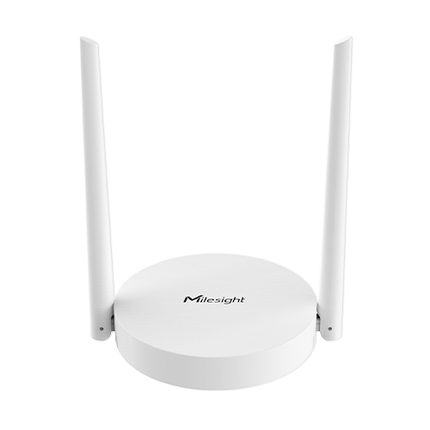

| Cellular Interface (Optional) |
| Network |
4G LTE (CAT 1)/GSM |
| Antenna |
1 x External Antenna |
| Cellular Band |
L08GL (Global except North America):
LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66
LTE-TDD: B34/38/39/40/41;
GSM: B2/3/5/8
L09NA (North America):
LTE-FDD: B2/4/5/12/13/66 |
| SIM Slots |
1 (Micro SIM-3FF) |
| Ethernet Interface |
| Port |
1 × RJ45 WAN Port |
| Physical Layer |
10/100 Base-T (IEEE 802.3) |
| Data Rate |
10/100 Mbps (Auto-Sensing) |
| Interface |
Auto MDI/MDIX |
| Mode |
Full or Half Duplex (Auto-Sensing) |
| Wi-Fi |
| Standards |
IEEE 802.11b/g/n, 2.4 GHz |
| Mode |
AP Mode (Device Configuration Only) |
| Others |
| Button |
1 × Reset Button |
| Console Port |
1 × USB 2.0 (Type-C) for Power Supply and Console |
| LED Indicators |
1 × SYSTEM, 1 x LTE |
| Built-in |
Watchdog, Timer |
| Power Supply and Consumption |
| Power Input |
1. 5V by Type-C Port
2. 5~12V DC by 3.5mm 2-pin Terminal Block
3. 802.3af standard PoE input by (Optional) PoE Splitter |
| Power Consumption |
Max 3.1 W |
| Physical Characteristics |
| Ingress Protection |
IP30 |

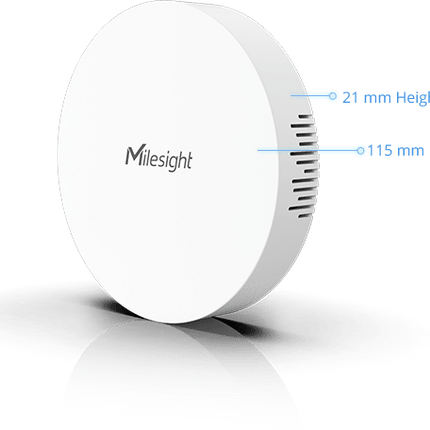

| Dimensions |
Ф 115 x 21 mm (Ф 4.52 x 0.83 in) |
| Color & Material |
White, PC + ABS |

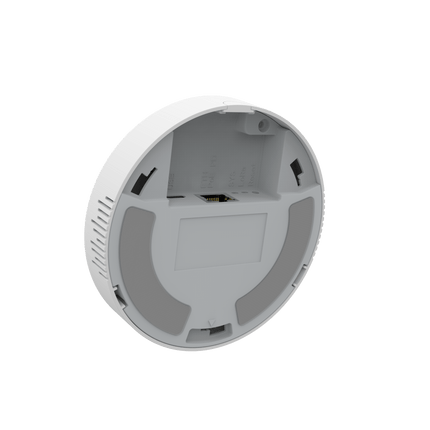

| Installation |
Desktop, Wall or Ceiling Mounting |
| Environmental |
| Operating Temperature |
-20°C to +50°C (-4℉ to +122℉) |
| Storage Temperature |
-40°C to +85°C (-40℉ to +185℉) |
| Ethernet Isolation |
1.5 kV RMS |
| Relative Humidity |
0% to 95% (non-condensing) at 25°C/77℉ |
Documentations:
UG63 Datasheet
UG63 Quick User Guide
UG63 User Guide
