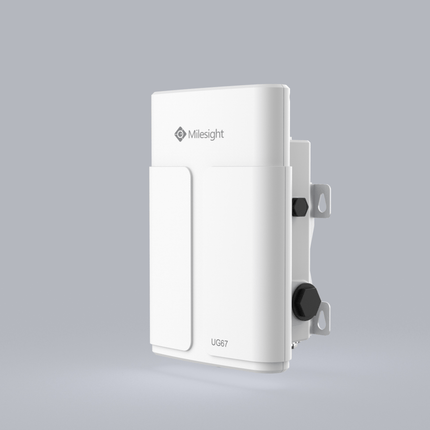

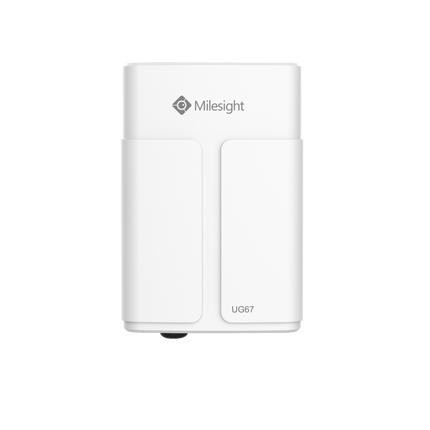

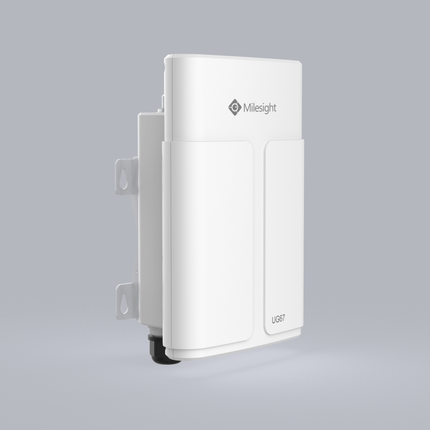

Milesight UG67 Outdoor LoRaWAN Gateway, 8-CH WiFi GPS POE

Description



Milesight UG67 Outdoor LoRaWAN Gateway, 8-CH WiFi GPS POE with Built-in Network Server, including accessories

  • IP67 Rating
  • Internal Antenna Design
  • 64-bit Quad-Core Processor
  • Embedded Network Server
  • New SX1302 LoRa Chip
  • Compatible with Multiple
  • Built-in Supercapacitor
  • Global LoRaWAN® Frequency Plans
  • Multiple Backhaul Connectivities

Featuring IP67 rated enclosure and PoE-PD (Powered Device), the UG67 LoRaWAN gateway is well suited for working in the harsh outdoor environment

Outstanding performance makes data processing faster:

  • 512 MB DDR4 RAM
  • 1.5 GHz 64-bit Quad-Core Processor

High Compatibility

  • Embedded Network Server
  • LoRa Basics™ Station
  • The Things Network, ChirpStack, Link WAN

Built-in network server, the UG67 also supports Semtech’s latest packet forwarder, and is compatible with multiple network server platforms like TTN, ChirpStack and Orbiwise, which offers a wide range of options for data processing.

Specifications

Model UG67
Hardware System
CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory 512 MB DDR4 RAM
Flash 8 GB eMMC
LoRaWAN®

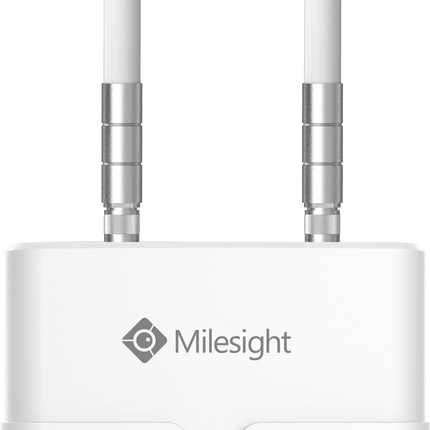

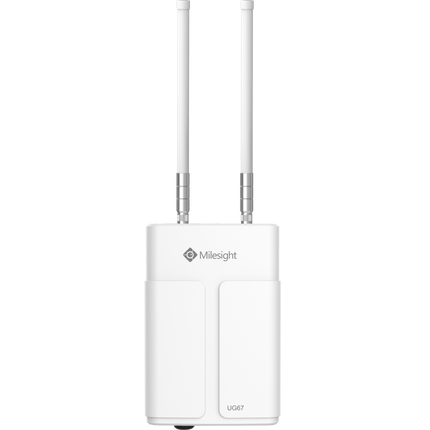

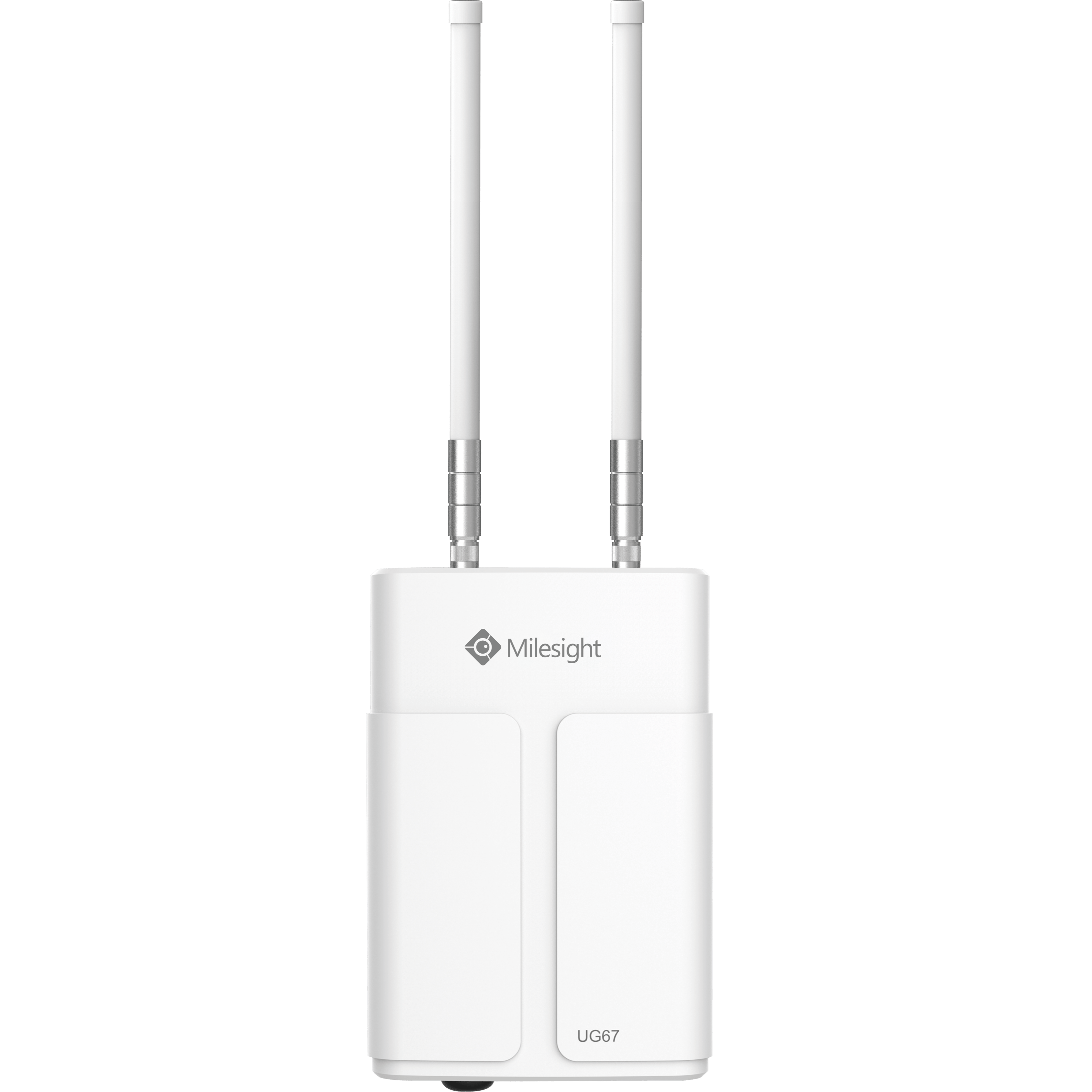

Antenna Fully Integrated Internal Antenna (Optional: 2 × 50 Ω N-Female External Antenna Connector)
Channel 8
Frequency Band AU915/AS923
Sensitivity -140dBm Sensitivity @292bps
Output Power 27dBm Max
Protocol V1.0 Class A/Class C and V1.0.2 Class A/Class C
Ethernet Interface
Port 1 × RJ45 (PoE PD Supported)
Physical Layer 10/100/1000 Base-T (IEEE 802.3)
Data Rate Rate 10/100/1000 Mbps (Auto-Sensing)
Interface Auto MDI/MDIX
Mode Full or Half Duplex (Auto-Sensing)
Wi-Fi
Antenna Fully Integrated Internal Antenna
Standards IEEE 802.11 b/g/n
Tx Power 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
Cellular Interface (Optional)
Antenna Fully Integrated and Internal Antenna
SIM Slot 1
GPS
Antenna Internal Antenna
Sensitivity -167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition
Position Accuracy <2.5 m CEP
Software
Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
Reliability WAN Failover
Power Supply and Consumption
Power Supply 1. 1 × 802.3 af PoE input
2. 1 × 12 VDC with M12 Connector
Consumption Typical 3.6 W, Max 4.8 W
Physical Characteristics
Ingress Protection Protection IP67
Dimensions 250 x 172 x 92 mm

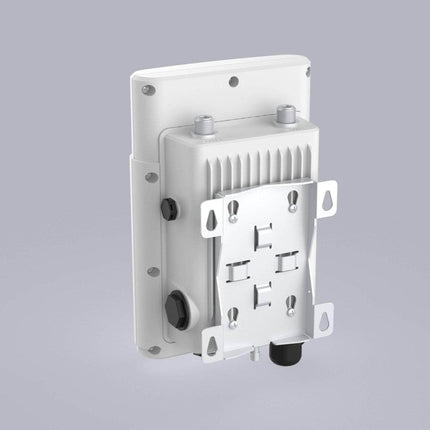

Mounting Wall or Pole Mounting
Others
Reset Button 1 × RST
Console Port 1 × Type-C Port
LED Indicators 1 × SYS, 1 × LoRa, 1 × LTE
Built-in Watchdog, RTC, Timer
Certification CE, FCC
Environmental
Operating Temperature -40°C to +70°C (-40℉ to +158℉)
Reduced Cellular Performance Above 60°C
Storage Temperature -40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation 1.5 kV RMS
Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉



Documents




Read more

Milesight UG67 Outdoor LoRaWAN Gateway, 8-CH WiFi GPS POE

Product form
Free pickup in our shop(s)

SKU: UG67-915M

$1,099.00 $999.00 Excl. GST

$999.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
