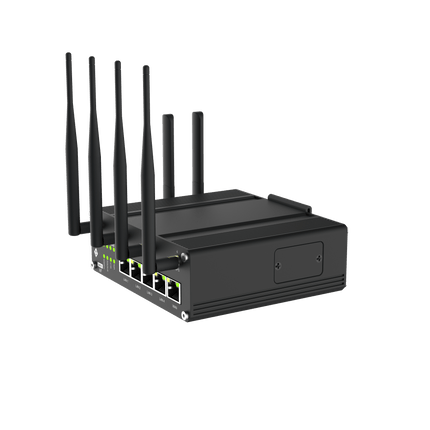

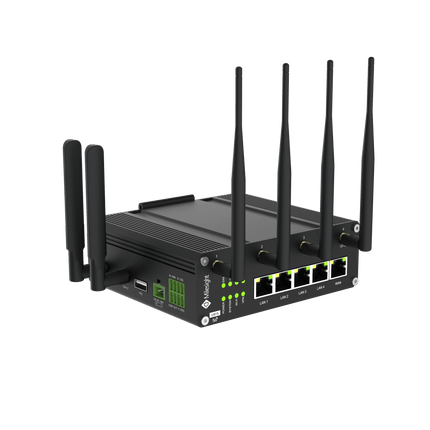

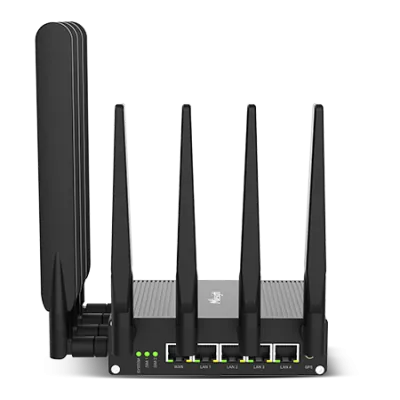

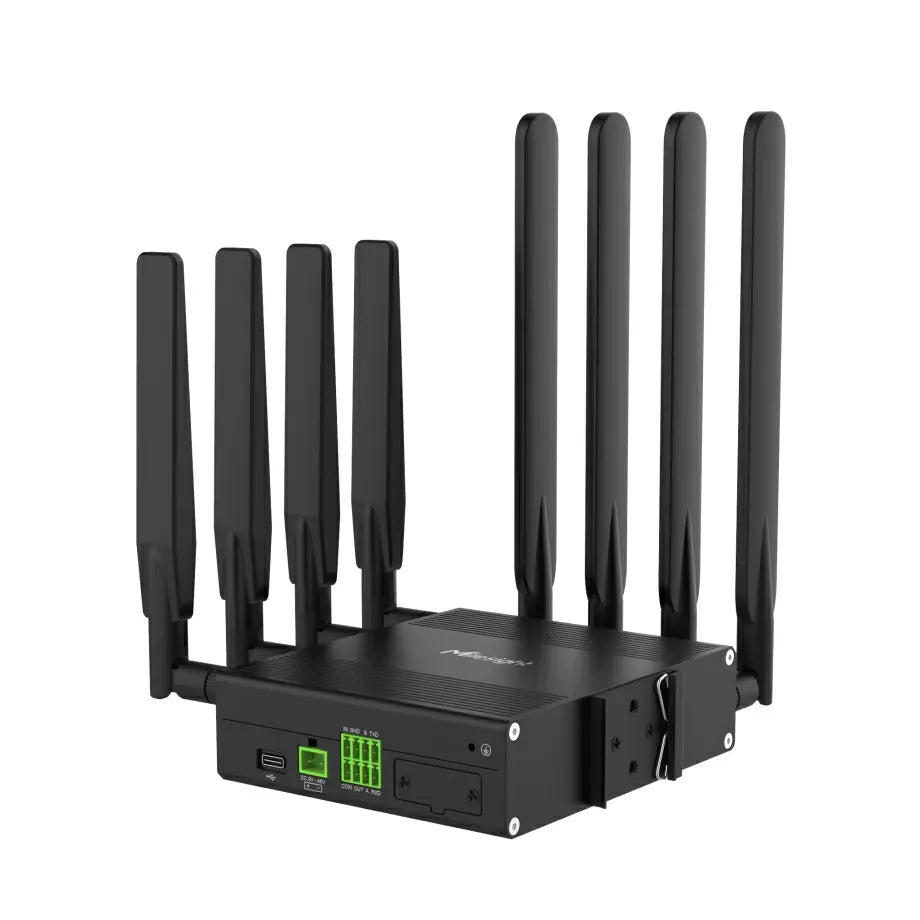

Milesight UR75 5G Industrial Cellular Router Dual Sim WiFi

Description



Milesight UR75 5G Industrial Cellular Router Dual Sim WiFi

Featuring the latest and fastest cellular technology – 5G, UR75 is not only an intelligent industrial IoT router but also an unrivaled wireless networking solution.

Equipped with 5-port Ethernet interface for mission-critical communications, featured with multiple network protocols and VPN tunnels, UR75 provides secure and reliable solutions for a range of M2M/IoT deployments.

To fulfill the market demand, UR75 is built with a hardened enclosure, industrial components, and wide operation range from -40°C to 70°C for harsh environments.
Aside from Dual SIM redundancy and Wi-Fi for seamless wireless connectivity, it is also equipped with 4 PSE PoE ports, serial ports, digital I/O for field communications.

  • 5G & 4G
  • Dual SIM

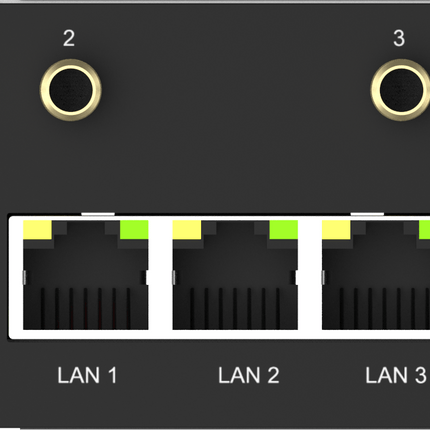

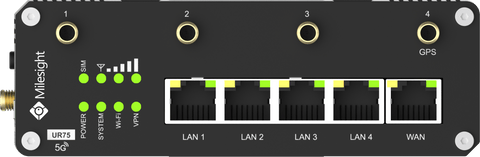

  • 5*10/100Mbps (1*WAN + 4*LAN)
  • 1*RS232 + 1*RS485
  • 1 Digital Input and 1 Digital Output
  • 1*MicroSD
  • Hardened & Rugged Enclosure
  • 4 PoE PSE Ethernet Ports
  • Supports Wi-Fi Client and AP Mode
  • OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE
  • Wide Operating Temp Range and Input Voltage

Specifications

Interfaces SIM Slots 2
Ethernet Ports 5 × 10/100/1000 Mbps
Serial Ports 1 × RS232 + 1 × RS485
DI/DO 1 × DI + 1 × DO
Voice N/A
Antenna Connectors 3 x Cellular Connectors
1 x Cellular/GPS Connector
2 x Wi-Fi Connectors
Network Cellular 5G, 4G CAT4/6/9/12/20 (Optional)
Wi-Fi IEEE 802.11b/g/n/ac
Serial Port Transparent (TCP Client/Server, UDP),
Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master
Network Protocols PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF,
DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
AAA RADIUS, TACACS+, LDAP, Local Authentication
Firewall URL Filtering/ACL/DMZ/Port Mapping/MAC Binding/SPI/DoS Protection
Reliability VRRP, WAN Fail-over, Dual SIM Backup
VPN OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE
Maintenance Management Web, CLI, SMS, Watchdog, On-demand Dial Up
Multilevel Authority Multiple Levels of User Authority
Capabilities CPU 716 MHz, Quad-Core ARM Cortex-A7
Flash 8 GB
Memory 512 MB DDR3
Built-in Watchdog
GPS GPS + GLONASS
Extended Memory 1 × M.2 NVMe SSD Slot

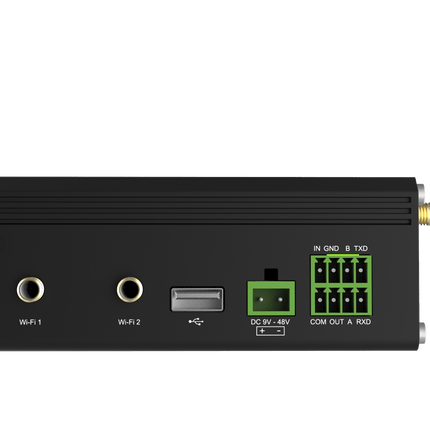

Hardware Power Input 9 ~ 48 VDC
Power Output (Optional) 4 × 802.3af/at PoE PSE
Ingress Protection IP30
Housing & Weight Metal, 525 g (1.16 lb)
Dimensions 135 × 118 × 45 mm (5.31 × 4.65 × 1.77 in)
Mounting Desktop, Wall or DIN Rail Mounting
Others Operating Temperature -40°C to +70°C (-40℉ to +158℉) Reduced cellular performance above 60°C
Storage Temperature -40°C to +85°C (-40℉ to +185℉) to +185℉)℉))
Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉
Certifications RoHS, CE, FCC
Frequency Band E LTE: B1/B3/B5/B7/B8/B20/B38/B40/B41 3G: B1/B5/B8 GSM: B3/B8
AF LTE: B2/B4/B5/B12/B13/B14/B66/B71 3G: B2/B4/B5 /
AU LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40 3G: B1/B2/B5/B8 GSM: B2/B3/B5/B8
500GL* N1/N2/N3/N5/N7/N8/N12/N20/N28/N41/N66/N71/N77/N78/N79 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)
/B25/B26/B28/B29/B30/B32/B66/B71
LTE TDD: B34/B38/39/B40/B41/B42/B48


Documentations:

Datasheet

Quick User Guide

User Manual

Manufacturer Product Page

Read more
