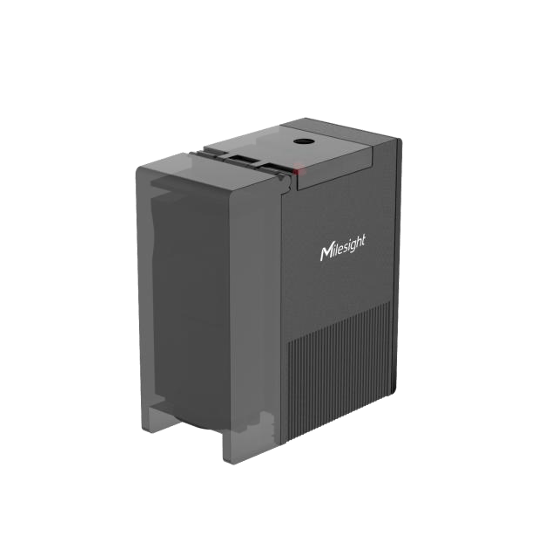

Milesight VS361 LoRaWAN Storefront Footfall People Counter
VS361 is an entry-level people-counting sensor that measures storefront traffic trends. It helps retailers understand and optimise store conversion rates with minimal
installation effort.
With an IP65-rated enclosure, VS361 supports installation in various storefront environments, including semi-outdoor conditions. Its adjustable detection range of up to 9m allows flexible deployment across different storefront layouts.
Complete Retail Insights
VS361 is designed to track passing traffic trends in retail settings. When combined with other Milesight People Counters, it helps link passing traffic visibility with walk-in data to support store conversion rate analysis.
High Cost-Performance
As an entry-level solution, VS361 is designed for easy adoption of passing traffic trend analysis. Its simple deployment and minimal setup requirements help retailers quickly experience the value of traffic insights.
| Measurement |
| Sensor Technology |
Diffuse Reflective |
| Installation Height |
0.7 - 1.2 m |
| Adjustable Detection Distance (Unobstructed) |
1 - 9m (through the adjustment knob) |
| Light |
Infrared LED (940nm) |
| Digital Output |
| Output Type |
1 × NPN open-collector Output |
| Maximum Load |
1mA@5VDC |
| Connector |
3.5mm Terminal Block |
| Other Interfaces |
| Power Interface |
• 1 × RJ45 (PoE PD) for Power Supply Only
• 1 × 2-pin Terminal Block (VIN+GND) |
| LED Indicators |
1 × Infrared-triggered indicator |
| Physical Characteristics |
| Power Supply |
802.3af PoE or 12 - 60 V DC/ 1 mA |
| Power Consumption |
Max. 0.9W |
| Operating Temperature |
-20°C ~ 50°C |
| Relative Humidity |
0 - 95% (Non-condensing) |
| Ingress Protection |
IP65 |
| Dimension |
73.5 × 80 × 36 mm (2.89 × 3.15 × 1.42 in) |
| Weight |
122 g |
| Material |
Polycarbonate (UL94 V2) |
| Color |
Black |
| Installation |
Wall Mounting |
