Milesight WS302 LoRaWAN Sound Level Sensor

Description



Milesight WS302 LoRaWAN Sound Level Sensor

WS302 is an advanced LoRaWAN® Sensor for monitoring noise/sound level in decibels (dB) with ease.

  • 30 to 120 dBA Measurement Range
  • ± 3 dB Accuracy; 0.1 dB Resolution
  • A-Weighting, C-Weighting & Fast-Time Weighting
  • Measurement Unit: SPL Actual, Leq, and Lmax
  • Accurate Sound Level Measurement
  • LED Alarm Indicator
  • 1.5~4 Years Battery Life
  • Easy Configuration (Via NFC)

A & C Weighting as Needed

Choose A-weighting or C-weighting based on scenarios. Usually, A-weighting is appropriate for quiet environments while C-weighting is for noisy environments.


Fast-Time Weighting

Fast-time weighting uses a time constant of 125 milliseconds for measuring unstable noise with large fluctuations.

Fast weighting is turned off by default. When turned on, battery life will be shortened.


More Sound Levels for more Insight

Support reporting of three sound level values (maximum sound level, sound pressure level, and equivalent continuous sound level) based on different weighting methods.

Specifications

Wireless Transmission Technology LoRaWAN®
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137 dBm @300bps
Mode OTAA/ABP Class A
Measurement Range 30 dBA to 120 dBA, 35 dBC to 120 dBC
Accuracy ± 3 dB (0°C to +45°C)
Resolution 0.1 dB
Frequency Range 30 Hz to 8 kHz
Frequency Weighting A and C Weighting (Software Switchable)
Time Weighting Fast Weighting
Measurement Unit SPL Actual, Leq, Lmax
Others Configuration NFC
Button 1 × Power/Reset Button
LED 1 × Status/Alarm Indicator
Physical Characteristics Power Supply 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Operating Temperature -20°C to +60°C
Relative Humidity ≤95% (Non-condensing)
Ingress Protection IP30

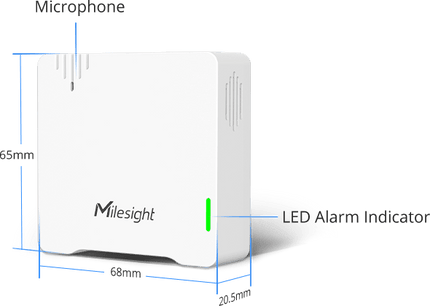

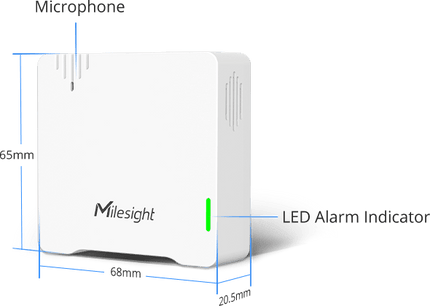

Dimension 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)
Material & Color PC+ABS, White
Installation On the flat surfaces with screws or 3M tapes



WS302 Datasheet

WS302 User Guide



Read more

Milesight WS302 LoRaWAN Sound Level Sensor

Product form
Free pickup in our shop(s)

SKU: WS302

$119.00 $99.00 Excl. GST

$99.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
