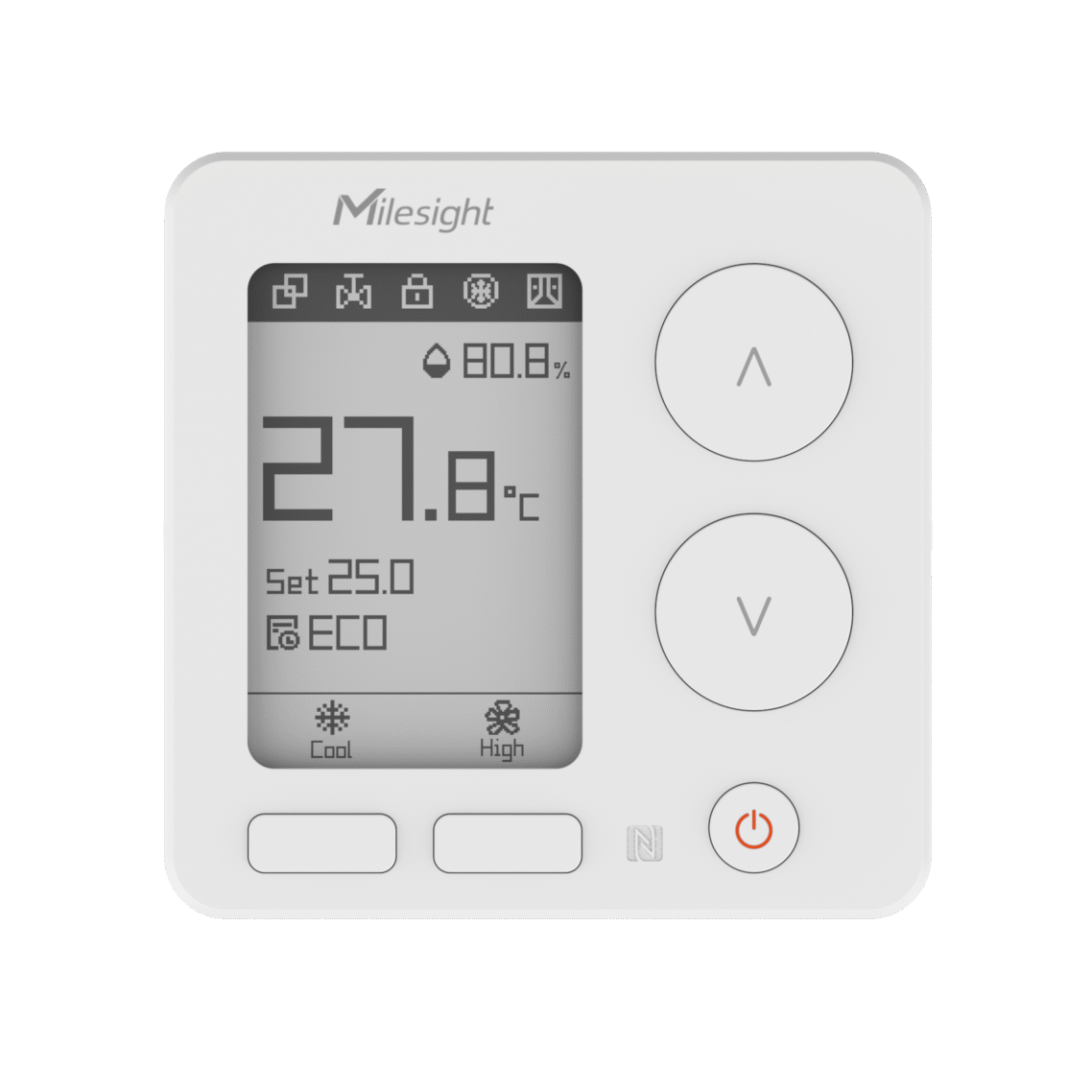

Milesight WT30x LoRaWAN Smart Fan Coil Thermostat Temperature Control
Milesight WT30x LoRaWAN Smart Fan Coil Thermostat Temperature Control
The Milesight Smart Fan Coil Thermostat WT30x is an advanced touchscreen room thermostat, offering access to parameters such as system mode, fan mode and temperature setpoints. Valves and auxiliary electric heaters can be controlled using a relay or contactor system switch controlled by the thermostat. It can be used in a variety of building applications, including hotels, schools and offices.
- LoRaWAN® Based for Wireless Transmission
- Compact Size Design with Easy Installation
- Compiled with 2-Pipe FCU with up to a 3-Speed Fan
- Temperature Adjustment Available
- Support Pre-set Date Period with Programmable Schedules
- 86mm Hidden Box and European 60mm Round Box Available
User-friendly and Elegant Product Design
The WT30x comes in an all-white color and fits perfectly into different scenes. It features an LED matrix light for a simple, energy-efficient display. Digital display of ambient temperature, setpoint, mode icons when cooling or heating relays operate, when energy savings mode is active, and fan status.
Rotating Based on Accurate Temperature Sensing
By comparing the temperature setpoint with the current temperature, the WT30x enables both proactive management and automatic control based on predefined logic.
The fan can be controlled from the thermostat, which offers three fan speeds (Low, Med, High) and Auto With Built-in temperature sensor, WT30x enables environmental detection and accurate control NTC port allows connection of additional temperature sensors for more precise monitoring Supports wireless connection of external temperature sensors via LoRaWAN gateway.
Strong Connectivity
By incorporating Milesight LoRaWAN® gateways and harnessing the power of platforms using various communication protocols that encompass MQTT(s), HTTP, and BACnet, the WT30x brings advanced performance to energy-efficient management, remote control, and data-driven management optimizations.

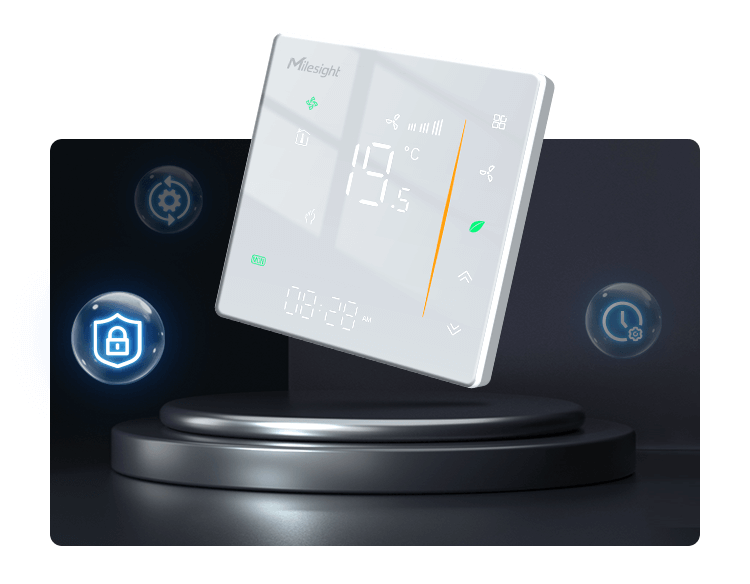

Smarter Temperature Management
With factory default and customized settings, users can adjust the thermostat to their actual needs while enjoying precise and stable management.
- Clock display with 12-hour system or 24-hour system
- Support temperature compensation factory default
- Secured data memory when power is off
- Button lock functions to avoid tampering
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
WT301 Specifications:
| Thermostat Feature | |
|---|---|
| Compatible Fan Coil | Two Pipes, 3-Speed Fan, 95~240VAC |
| Fan Relay Amps | Resistance: 5A, Inductive: 3A |
| Fan Mode | Low, Medium, High, Auto |
| Compatible Valve | Two-wire On/Off Motorized Valve |
| Valve Relay Amps | Resistance: 3A, Inductive: 1A |
| Temperature | |
| Internal Sensor Type | NTC10K |
| Set Temperature Range | 5°C ~ 35°C |
| Accuracy | ±0.5°C |
| Others | |
| Inputs | 1 × Keycard Switch Input (Dry Contact), 1 × NTC Input for External NTC Sensor |
| Wireless Transmission | |
| Protocol | LoRaWAN® |
| Frequency | CN470/EU868/RU864/1N865/AU915/US915/KR920/A5923-1&2&3&4 |
| Tx Power | 16dBm (868 MHz) / 19dBm (470 MHz) / 22dBm (915 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class C |
| Display & Configuration | |
| Display | LCD Screen with Four-color LED |
| Display Temperature | 5°C ~ 99°C |
| Configuration | 5 Capacitive Touch Buttons |
| Physical Characteristics | |
| Power Supply | 95 ~ 240 VAC, 50 ~ 60Hz |
| Power Consumption | <1.5W |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -5°C ~ 45°C |
| Relative Humidity | 5 ~ 95% (Non-condensing) |
| Ingress Protection | IP20 |
| Color & Material | White, PC + ABS (Flame-retardant) |
| Dimension | 88 × 88 × 41.8 mm |
| Wire Connection | 2 x 1.5 mm² or 1 x 2.5 mm² |
| Installation | 86*86mm Square or European 60mm Round Box Mounting |
WT302 Specifications:
| Thermostat Feature | |
|---|---|
| Compatible Fan Coil | Two Pipes, 3-Speed Fan, 95~240VAC |
| Fan Relay Amps | Resistance: 5A, Inductive: 3A |
| Fan Mode | Low, Medium, High, Auto |
| Compatible Valve | 0-10V Proportional Integral Valve |
| Valve Relay Amps | Resistance: 3A, Inductive: 1A |
| Temperature | |
| Internal Sensor Type | NTC10K |
| Set Temperature Range | 5°C ~ 35°C |
| Accuracy | ±0.5°C |
| Others | |
| Inputs | 1 × Keycard Switch Input (Dry Contact), 1 × NTC Input for External NTC Sensor |
| Wireless Transmission | |
| Protocol | LoRaWAN® |
| Frequency | CN470/EU868/RU864/1N865/AU915/US915/KR920/A5923-1&2&3&4 |
| Tx Power | 16dBm (868 MHz) / 19dBm (470 MHz) / 22dBm (915 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class C |
| Display & Configuration | |
| Display | LCD Screen with Four-color LED |
| Display Temperature | 5°C ~ 99°C |
| Configuration | 5 Capacitive Touch Buttons |
| Physical Characteristics | |
| Power Supply | 95 ~ 240 VAC, 50 ~ 60Hz |
| Power Consumption | <1.5W |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -5°C ~ 45°C |
| Relative Humidity | 5 ~ 95% (Non-condensing) |
| Ingress Protection | IP20 |
| Color & Material | White, PC + ABS (Flame-retardant) |
| Dimension | 88 × 88 × 41.8 mm |
| Wire Connection | 2 x 1.5 mm² or 1 x 2.5 mm² |
| Installation | 86*86mm Square or European 60mm Round Box Mounting |
Documents:
WT30x Fan Coil Thermostat Datasheet
