MINI-32 Board - MikroElektronika Development Board PIC32MX534F064H

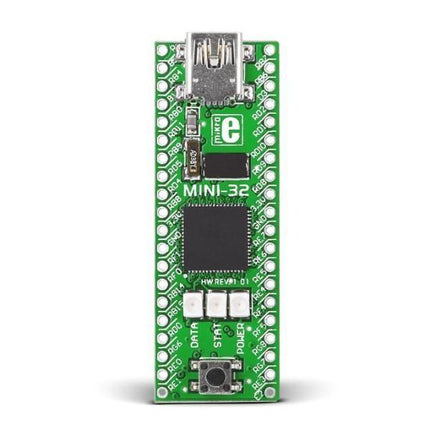

MINI-32 is a small development board containing PIC32MX534F064H microcontroller. It operates on 3.3V power supply. On-board voltage regulator allows the board to be powered directly from USB cable. It is pin compatible with PIC16F887 and PIC18(L)F45K20 microcontrontrollers and it perfectly fits into the standard DIP40 socket. Board is equipped with SMD crystal oscillator, and 32.768KHz crystal which can be used for internal RTCC module. It has reset button and three signal LEDs.
Programming. Board comes preprogrammed with fast USB HID bootloader, so no external programmers are needed for development.
Specifications
| Architecture |
PIC32 (32-bit) |
| MCU |
PIC32MX534F064H |
| MCU speed |
80MHz |
| MCU Memory |
64KB of Flash, 16KB of RAM, 1KB boot Flash |
| On-board modules |
3 x LEDs, 1 x Reset Button, USB 2.0 OTG connector |
| Programming |
Comes preprogrammed with USB HID bootloader |
| Key Features |
Supports CAN communication |
| Integration |
Pin compatible with PIC16F887 and PIC18(L)F45K20 |
| Input Voltage |
5V (via USB) or 3.3V (via external source) |
