Mini Conductivity K 1.0 Kit - Atlas Scientific
An E.C. (electrical conductivity) probe measures the electrical conductivity of a solution. It is commonly used in hydroponics, aquaculture and freshwater systems to monitor the number of nutrients, salts or impurities in the water. Inside the conductivity probe, two electrodes are positioned opposite from each other, an AC voltage is applied to the electrodes causing cations to move to the negatively charged electrode, while the anions move to the positive electrode. The more free electrolyte the liquid contains, the higher the electrical conductivity.
If you are new to electrochemical sensing, knowing what components you need can get confusing. Let us help you. The Atlas Scientific Mini K1 EZO-Conductivity Kit is perfect measuring water with a conductivity range from 10µs to 100,000µs. That means this kit is perfect for environmental monitoring, hydroponics, and both freshwater and saltwater aquariums.
A conductivity probe is a very simple device. It is just two conductors with a fixed surface area at a fixed distance from each other. This distance and surface area is known as the conductivity cell. The cells distance and surface area is quantified as the conductivity cells K constant.

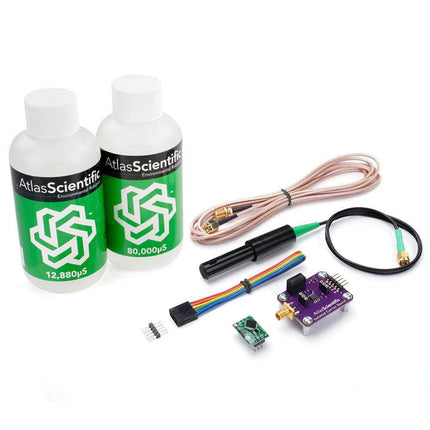

Kit includes:

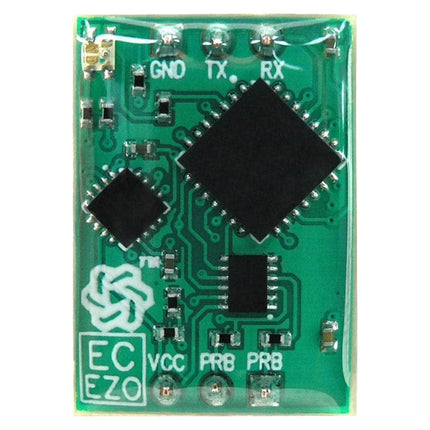

• 1 EZO™ Conductivity Circuit

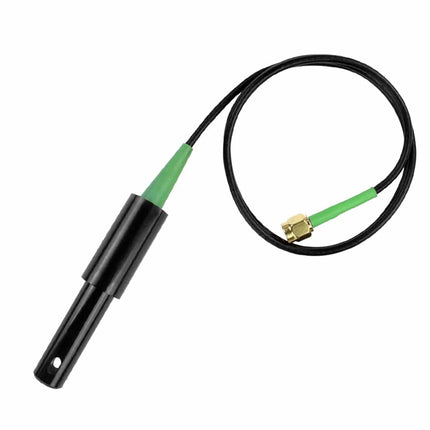

• 1 Mini Conductivity Probe: 5 µS/cm to 200,000 µS/cm

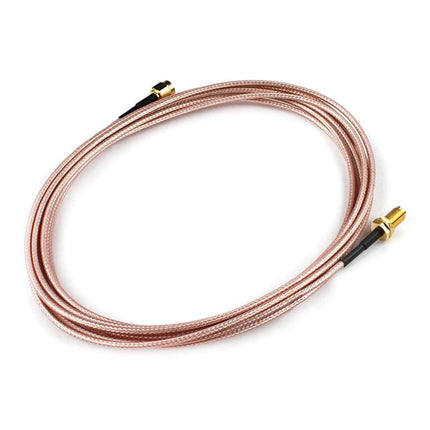

• 1 3 Meter SMA male to SMA female Extension Cable

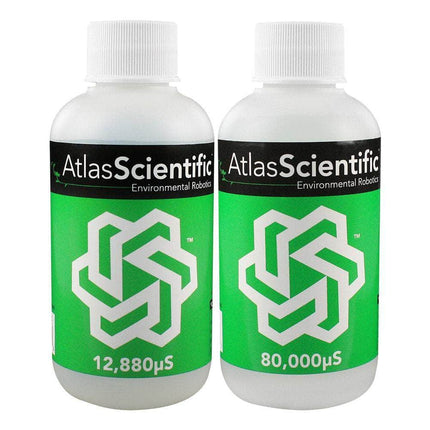

• 2 125ml (4oz) calibration solutions
K 1.0 – This set includes 1 (12,880µS) and 1 (80,000µS)

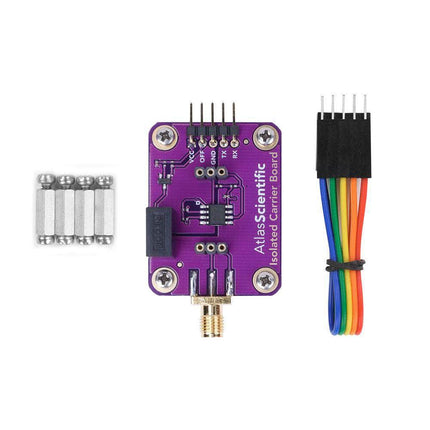

• 1 Electrically Isolated EZO™ Carrier Board
Carrier Board dimensions
56.2mm x 32mm (2.2″ x 1.2″)
Weight: 25 grams
The Conductivity Probe can be fully submerged in fresh water or salt water, up to the SMA connector indefinitely.
