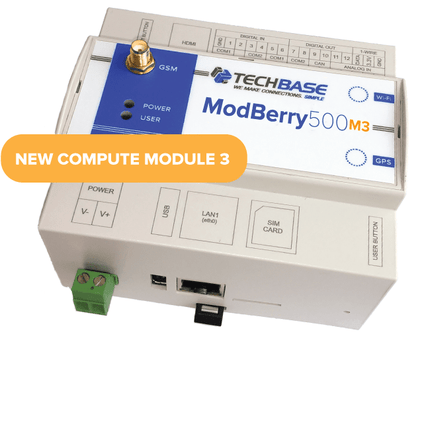

ModBerry 500-M3 MAX with 4G and Raspberry Pi Compute Module
Industrial Embedded Raspberry PI Based Computer

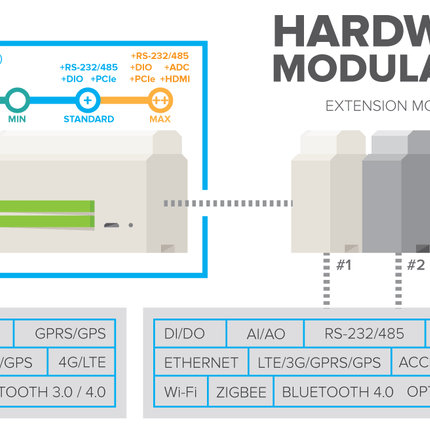

The ModBerry 500-M3 device designed by TECHBASE allows the use of up to 3 expansion modules, increasing its capabilities with additional I/Os, providing support for additional modems and wireless communication modules, and adding new features such as accelerometer and opto-isolation.
TECHBASE provides solutions for industrial automation, telemetry, remote access and integration with IT systems.
Main features of ModBerry 500-M3:
-
Energy efficient Quad-core Cortex A53 processor @ 1.2 GHz with Videocore IV GPU
-
1GB LPDDR2 RAM
-
4GB eMMC Flash
- Rich set of I/O interfaces: including digital and analogue inputs/outputs, RS-232/RS-485 serial ports
- Full Modbus/M-Bus/SNMP/MQTT protocol support
- Wide range of wired and wireless communication protocols (Wi-Fi, 3G/LTE, GPS, Bluetooth, ZigBee, etc.)
-
Industrial-grade components and casing with DIN rail mounting
- Designed for the needs of automation, telecommunications, remote supervision, and monitoring

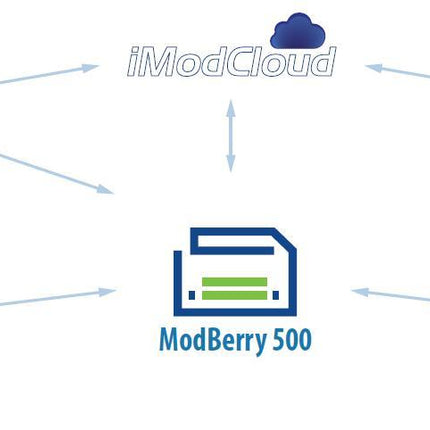

- Web page visualization of current/archived data and remote control directly from the device or cloud service

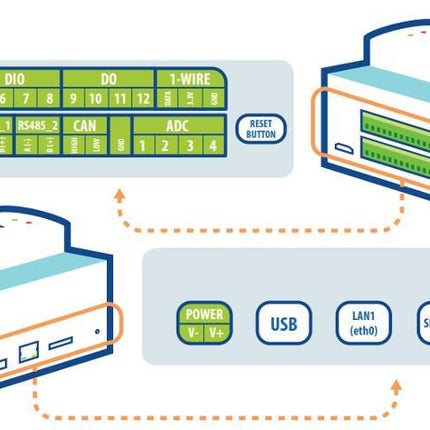

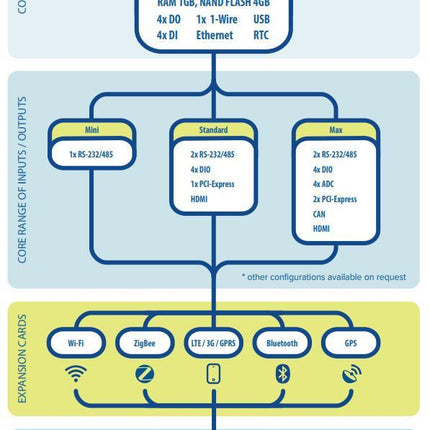

Available hardware functions:
- Serial ports: 2x RS-232/485
- Digital inputs/outputs: 4x Digital input, 4x Digital output
- Configurable digital inputs/outputs: 4x Digital input/output
- Analog inputs: 4x Analog input
- Communication interfaces: Ethernet, 1-Wire, CAN, 2x USB
- Audio/Video: HDMI
- Expansion cards (available per request): Wi-Fi, ZigBee, LTE/3G/GPRS/EDGE, Bluetooth, GPS, ExCard modules
