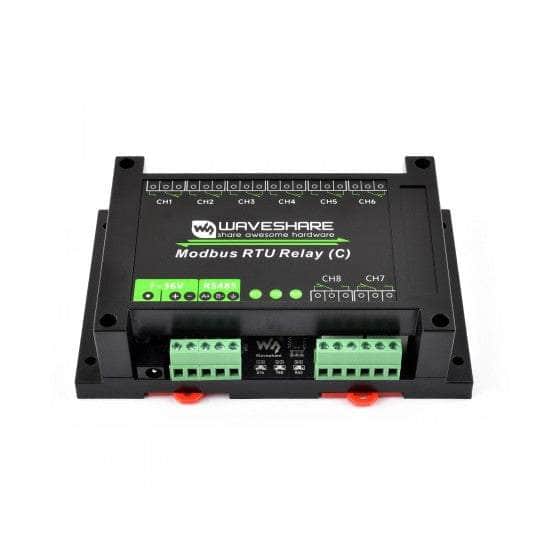

Modbus RTU 8-ch Latching Relay with RS485 Interface

Description

Modbus RTU 8-ch Latching Relay Module (C) with RS485 Interface, Multi Isolation Protection Circuits, Rail-mounted Case

Modbus RTU Protocol, Latching Relay, Multi Isolation Protection Circuits

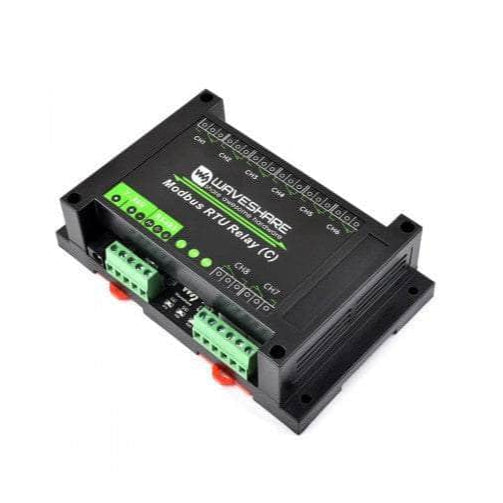

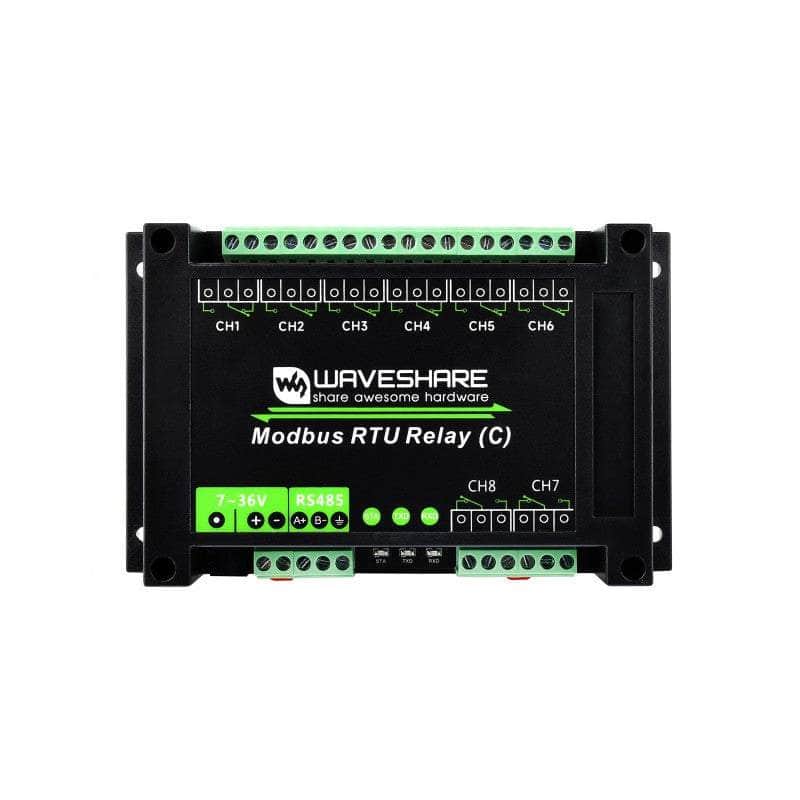

 Modbus RTU 8-ch Latching Relay Module (C), front view

Features:

This is an industrial 8-ch latching relay module controlled via RS485 bus, which can keep the relay state unchanged after power loss. It adopts Modbus RTU protocol, featuring embedded protection circuits such as power isolation, magnetical isolation, and TVS diode, etc. It also comes with an ABS enclosure. The Modbus RTU Relay (C) is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipment and/or applications with high communication requirements.

  • Adopts latching relay, the state of the relay can remain unchanged after power loss
  • Configurable device address (1~255), multi-devices can be cascaded on RS485 bus
  • Features flash-on, and flash-off functions, by passing arguments to the command, it is possible to turn on the relay for a while and then close it automatically
  • Onboard unibody power supply isolation, provides stable isolated voltage, and needs no extra power supply for the isolated terminal
  • Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
  • Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightning proof & anti-electrostatic
  • Adopts dedicated latching relay driver chip for stronger and more stable driving ability
  • Reverse-proof circuit, prevents the circuit from being damaged accidentally by incorrect connection
  • High-quality relay, contact rating: ≤10A 250VAC/30VDC
  • Rail-mounted ABS plastic enclosure, easy to install, safe to use
  • 3 LEDs for indicating the MCU status and signal transceiving status

Specifications

Power supply 7~36V
Communication interface RS485
Baudrate 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default communication format 9600, N, 8, 1
Relay channels 8
Relay type Latching relay
Contact form 1NO 1NC
contact rating ≤10A 250VAC/30VDC
Communication protocol Standard Modbus RTU protocol
RS485 address 1~255
LED indicators STA: MCU indicator, keeps flashing when the MCU is normally working
TXD: TX indicator, lights up when sending data
RXD: RX indicator, lights up when receiving data

Primary function

Supports sending Modbus RTU protocol commands via RS485 for relay output control

Modbus RTU 8-ch Latching Relay Module (C), connection example

Hardware Analysis

Multiple protections for safer and more reliable use

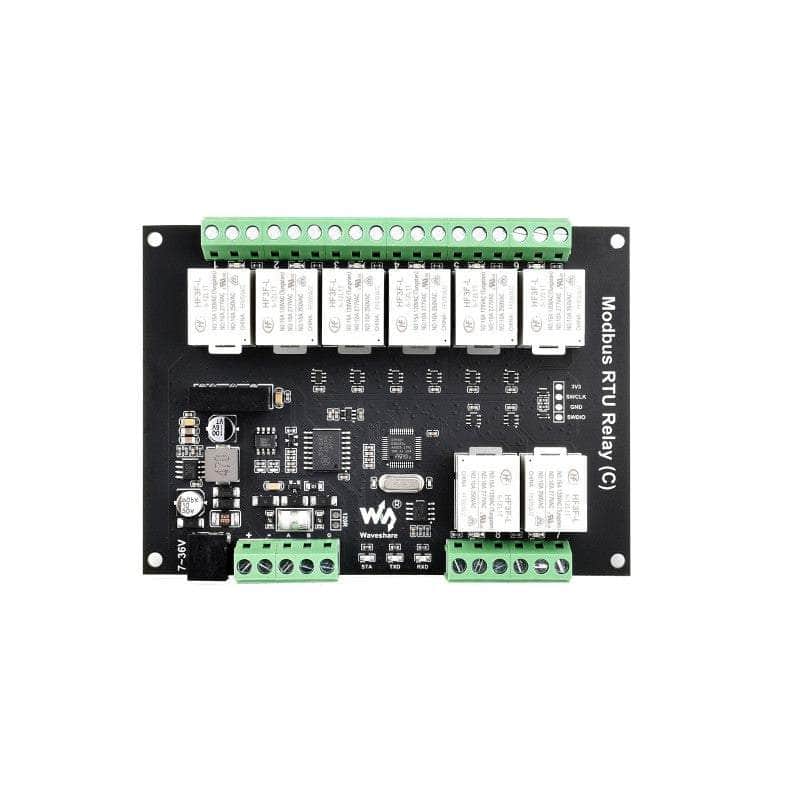

Modbus RTU 8-ch Latching Relay Module (C), onboard components

Enclosure Design

Rail-mounted ABS plastic enclosure, easy to install, safe to use

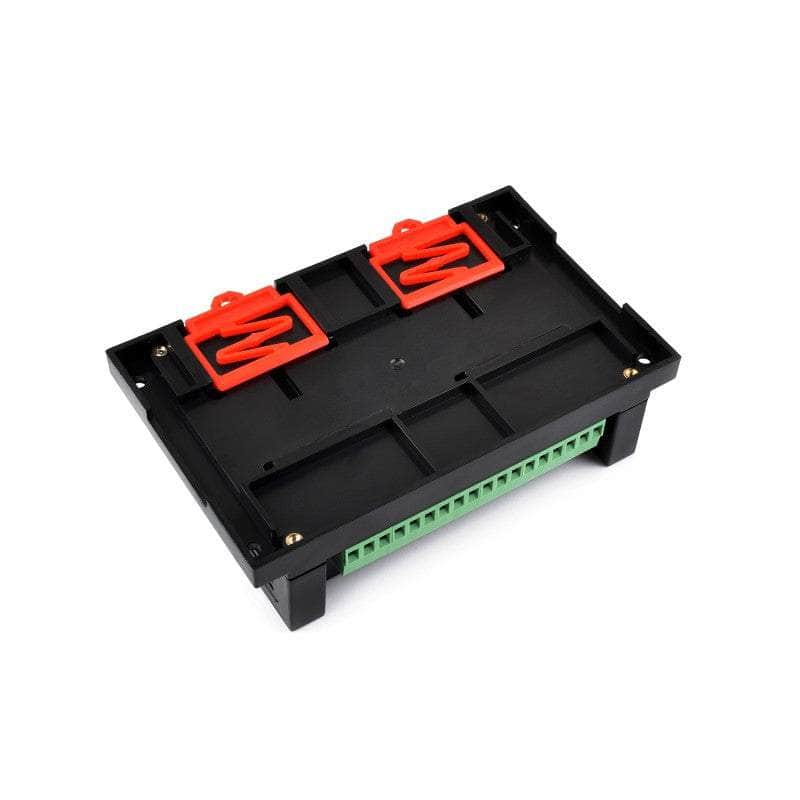

Modbus RTU 8-ch Latching Relay Module (C), with ABS plastic enclosure

RS485 Communication

Configurable device address (1~255), multi devices can be cascaded on RS485 bus

In case of many devices are cascaded, or communication distance is quite long, it is necessary to use RS485 repeaters

Modbus RTU 8-ch Latching Relay Module (C), RS485 communication connection

for reference only, the USB TO RS232/485/TTL converter is Not included

Relay connection

Contact rating of the onboard relay up to 10A 250VAC/30VDC

Modbus RTU 8-ch Latching Relay Module (C), connection examples with load

Applications

Modbus RTU 8-ch Latching Relay Module (C), applications

Product show

Modbus RTU 8-ch Latching Relay Module (C), product show

Outline dimensions

Modbus RTU 8-ch Latching Relay Module (C), outline dimensions

Modbus RTU 8-ch Latching Relay with RS485 Interface

Product form
Free pickup in our shop(s)

SKU: Modbus RTU Relay (C) 30460

$99.00 $79.00 Excl. GST

$79.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    Modbus RTU 8-ch Latching Relay Module (C) with RS485 Interface, Multi Isolation Protection Circuits, Rail-mounted Case

    Modbus RTU Protocol, Latching Relay, Multi Isolation Protection Circuits

     Modbus RTU 8-ch Latching Relay Module (C), front view

    Features:

    This is an industrial 8-ch latching relay module controlled via RS485 bus, which can keep the relay state unchanged after power loss. It adopts Modbus RTU protocol, featuring embedded protection circuits such as power isolation, magnetical isolation, and TVS diode, etc. It also comes with an ABS enclosure. The Modbus RTU Relay (C) is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipment and/or applications with high communication requirements.

    • Adopts latching relay, the state of the relay can remain unchanged after power loss
    • Configurable device address (1~255), multi-devices can be cascaded on RS485 bus
    • Features flash-on, and flash-off functions, by passing arguments to the command, it is possible to turn on the relay for a while and then close it automatically
    • Onboard unibody power supply isolation, provides stable isolated voltage, and needs no extra power supply for the isolated terminal
    • Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
    • Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightning proof & anti-electrostatic
    • Adopts dedicated latching relay driver chip for stronger and more stable driving ability
    • Reverse-proof circuit, prevents the circuit from being damaged accidentally by incorrect connection
    • High-quality relay, contact rating: ≤10A 250VAC/30VDC
    • Rail-mounted ABS plastic enclosure, easy to install, safe to use
    • 3 LEDs for indicating the MCU status and signal transceiving status

    Specifications

    Power supply 7~36V
    Communication interface RS485
    Baudrate 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
    Default communication format 9600, N, 8, 1
    Relay channels 8
    Relay type Latching relay
    Contact form 1NO 1NC
    contact rating ≤10A 250VAC/30VDC
    Communication protocol Standard Modbus RTU protocol
    RS485 address 1~255
    LED indicators STA: MCU indicator, keeps flashing when the MCU is normally working
    TXD: TX indicator, lights up when sending data
    RXD: RX indicator, lights up when receiving data

    Primary function

    Supports sending Modbus RTU protocol commands via RS485 for relay output control

    Modbus RTU 8-ch Latching Relay Module (C), connection example

    Hardware Analysis

    Multiple protections for safer and more reliable use

    Modbus RTU 8-ch Latching Relay Module (C), onboard components

    Enclosure Design

    Rail-mounted ABS plastic enclosure, easy to install, safe to use

    Modbus RTU 8-ch Latching Relay Module (C), with ABS plastic enclosure

    RS485 Communication

    Configurable device address (1~255), multi devices can be cascaded on RS485 bus

    In case of many devices are cascaded, or communication distance is quite long, it is necessary to use RS485 repeaters

    Modbus RTU 8-ch Latching Relay Module (C), RS485 communication connection

    for reference only, the USB TO RS232/485/TTL converter is Not included

    Relay connection

    Contact rating of the onboard relay up to 10A 250VAC/30VDC

    Modbus RTU 8-ch Latching Relay Module (C), connection examples with load

    Applications

    Modbus RTU 8-ch Latching Relay Module (C), applications

    Product show

    Modbus RTU 8-ch Latching Relay Module (C), product show

    Outline dimensions

    Modbus RTU 8-ch Latching Relay Module (C), outline dimensions
