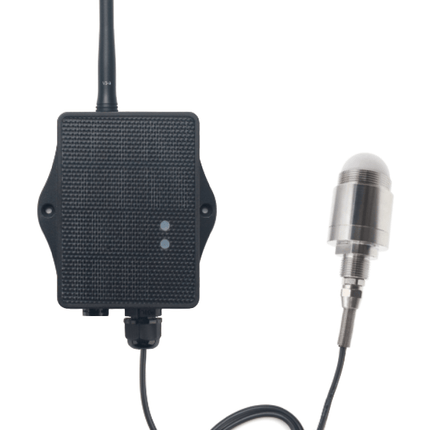

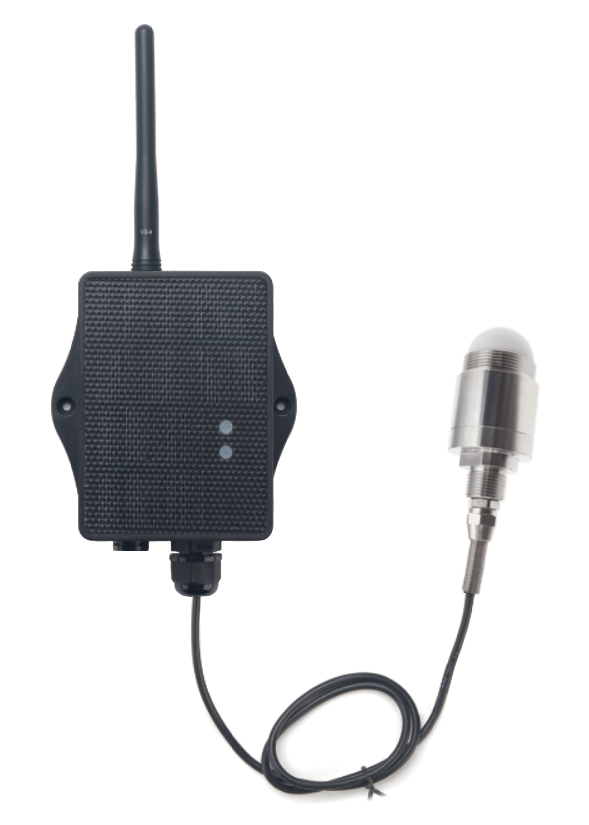

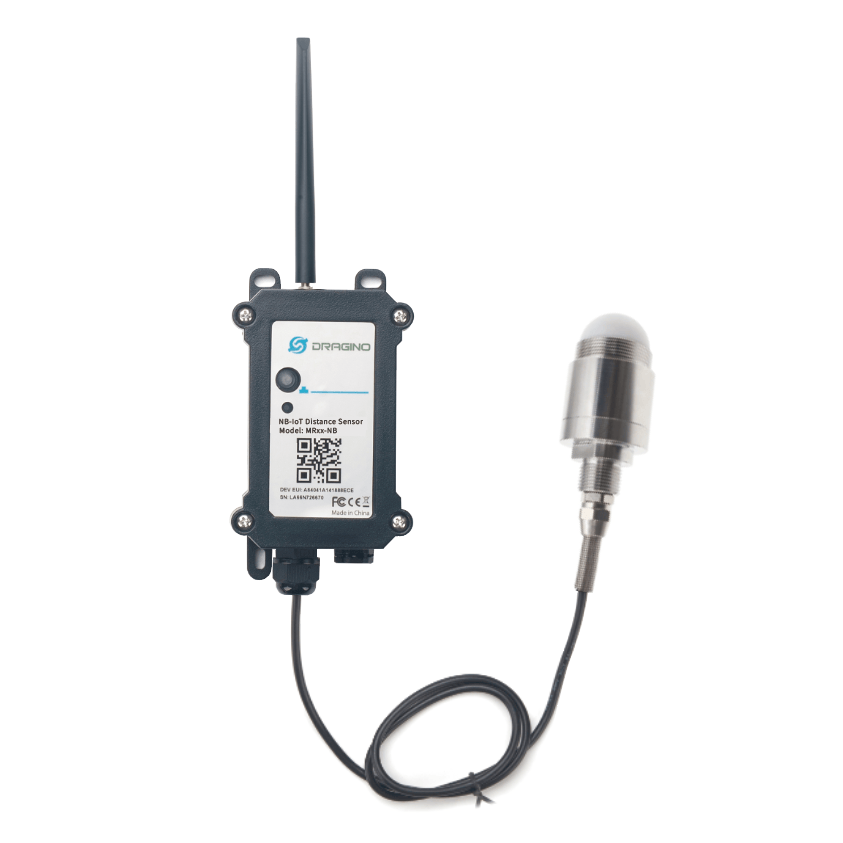

MR-XX-CB NB-IoT LTE CAT-M Microwave Radar Distance Sensor
The Dragino MR-XX-NB/NS is an advanced NB-IoT Microwave Radar Distance Sensor designed for Internet of Things (IoT) applications requiring stable and accurate distance measurement. Utilizing 80 GHz microwave radar technology, it measures the distance between the sensor and surrounding objects with high precision. Compared to ultrasonic or LiDAR sensing, microwave radar offers superior reliability in moist, dusty, or condensation-prone environments, maintaining accurate readings even when water or heavy dust accumulates on the sensor surface.
The MR-XX-NB/NS is suitable for a wide range of use cases, including:
-
Horizontal distance measurement
-
Smart parking and vehicle detection
-
Proximity and presence monitoring
-
Intelligent waste bin management
-
Autonomous robot obstacle avoidance
-
Automated control systems
-
Sewer and harsh-environment sensing
For ease of deployment, the device supports BLE configuration and wireless OTA firmware updates, simplifying setup and maintenance.
The MR-XX-NB/NS also provides flexible connectivity, supporting multiple uplink protocols such as TCP, MQTT, UDP, MQTTS, and CoAP, enabling integration with various IoT platforms and server architectures.
Powered by an 8500 mAh Li-SOCl₂ battery or an optional solar panel with Li-ion backup, the sensor is engineered for multi-year, long-term operation, even in remote installations.
Features:
- NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD
- Ultra-low power consumption
- 80Ghz Microwave Radar for distance detection
- Measure Range: 3m: 200 ~ 3000mm; 12m: 200 ~ 12000mm; 25m: 200 ~ 25000mm
- Accuracy: ±20mm
- Resolution: 1mm
- Measurement Angle: 7.6 degrees horizontal and 7.6 degrees vertical
- Multiply Sampling and one uplink
- Support Bluetooth v5.1 remote configuration and update firmware
- Uplink on periodically
- Downlink to change configuration
- 8500mAh Li/SOCl2 Battery (MR-XX-NB)
- Solar panel + 3000mAh Li-ion battery (MR-XX-NS)
Applications:
- Horizontal distance measurement
- Liquid level measurement
- Parking management system
- Object proximity and presence detection
- Intelligent trash can management system
- Robot obstacle avoidance
- Automatic control
- Sewer
-
Bottom water level monitoring
Specifications:
Common DC Characteristics:
- Supply Voltage: Built-in Battery, 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C
Radar probe specification:
- Measuring Method: FMCW
- Frequency: 80 GHz
- Measure Range :3m: 200 ~ 3000mm; 12m: 200 ~ 12000mm; 25m: 200 ~ 25000mm
- Accuracy: ± 20mm
- Resolution: 1mm
- Measurement Angle: 7.6 degrees horizontal and 7.6 degrees vertical
Battery:
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuous current: 130mA
- Max boost current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
