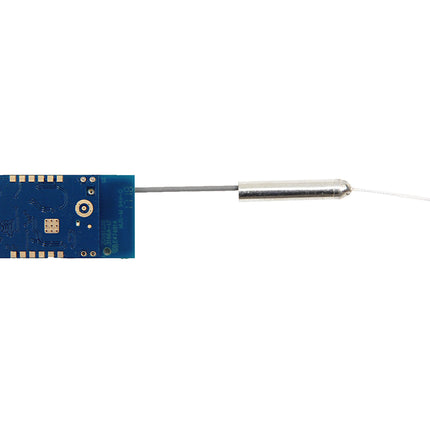

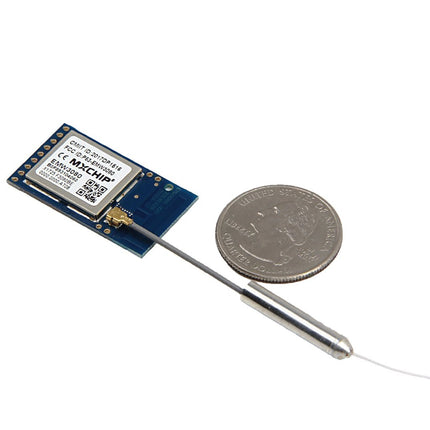

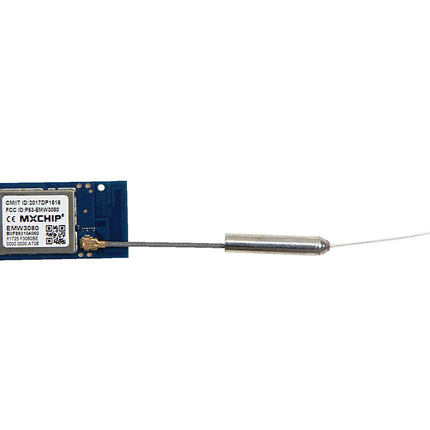

MXCHIP EMW3080(BE) Embedded WiFi Module

Description

MXCHIP EMW3080(BE) Embedded WiFi Module

EMW3080 is a cost-effectively embedded Wi-Fi module released by MXCHIP with high integrating ARM CM4F, WLAN MAC/Baseband/RF. Maximum frequency 133MHz with 256KB SRAM and 2M FLASH. The power supply is DC 3.3V. Installation modes are LGA SMT and Pin Connection. Peripheral: 2xUART / 1x SPI /2x I2C / 6x PWM / Up to 13 GPIOs. EMW3080 operates MiCO 3.0 IoT operating system, supporting Micoder 1.0 development system. Provide fast, stable and secure end-to-end cloud links to users with integrating TCP/IP protocol stack, various security encryption algorithm, intelligent cloud such as MXCHIP easylink/Alink 1.1/Joinlink 3.0/Hilink/One Net/Gome/Suning, oversea cloud such as AWS/Ayla/Azure/IBM Watson/Google/Apple Homekit. EMW3080 (B): Abundant peripherals and memory to supply most application and multi-cloud requirement.



Application scenarios

Intelligent Security

Industrial automation

Smart Home Application

Intelligent Transportation

Intelligent lighting

Features

Properties

  • Support 802.11b/g/n,  integrate ARM-CM4F, WLAN MAC/Baseband/RF

  • 256KB RAM/ 2MB FLASH

  • Working Voltage: DC 3.0-3.6V

  • Maximum transmission rate up to 72.2 Mbps with 20 MHz bandwidth.

  • Maximum transmission rate up to 150 Mbps with 40 MHz bandwidth.

  • EMW3080B is standard module；EMW3080A has hardware encryption. Improve the security level of Cloud connection and firmware protection. Security level in accordance with CC EAL5+ AVA_VAN5

  • EMW3080(A) Hardware Encryption Features

  • Encrypt firmware of clients to prevent cracking

  • Digital signature is used in firmware to ensure integrity and legality, preventing being tampering or replaced in OTA.

  • Automatically generate private key to save the certificate issued from the cloud, the cloud can identify the legality of the device to prevent illegal, counterfeit, non-secure accessing.

  • Prevent hackers to obtain sensitive data and code

Wi-Fi Features

  • Support 802.11b/g/n，HT-40

  • Support Station, Soft AP, Station+Soft AP

  • Support EasyLink，Alink，Joinlink

  • Antenna: IPX

Peripherals

  • 2x UART

  • 2x I2C

  • 1x SPI

  • 1x SWD

  • 6x PWM

  • Up to 13GPIOs

Operating Temperature

  • -20℃ to +85℃

Technical Details

Weight G.W 3g
Battery Exclude

Part List

EMW3080(BE) WiFi Module 1


Documents

    MXCHIP EMW3080(BE) Embedded WiFi Module

    Product form

    SKU: 113990418

    $30.00 $10.00 Excl. GST

    $10.00
    Product available in stock.

      • We ship from our stock in AU (Perth), pickup by prior booking
      • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
      • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

      Description

      MXCHIP EMW3080(BE) Embedded WiFi Module

      EMW3080 is a cost-effectively embedded Wi-Fi module released by MXCHIP with high integrating ARM CM4F, WLAN MAC/Baseband/RF. Maximum frequency 133MHz with 256KB SRAM and 2M FLASH. The power supply is DC 3.3V. Installation modes are LGA SMT and Pin Connection. Peripheral: 2xUART / 1x SPI /2x I2C / 6x PWM / Up to 13 GPIOs. EMW3080 operates MiCO 3.0 IoT operating system, supporting Micoder 1.0 development system. Provide fast, stable and secure end-to-end cloud links to users with integrating TCP/IP protocol stack, various security encryption algorithm, intelligent cloud such as MXCHIP easylink/Alink 1.1/Joinlink 3.0/Hilink/One Net/Gome/Suning, oversea cloud such as AWS/Ayla/Azure/IBM Watson/Google/Apple Homekit. EMW3080 (B): Abundant peripherals and memory to supply most application and multi-cloud requirement.



      Application scenarios

      Intelligent Security

      Industrial automation

      Smart Home Application

      Intelligent Transportation

      Intelligent lighting

      Features

      Properties

      • Support 802.11b/g/n,  integrate ARM-CM4F, WLAN MAC/Baseband/RF

      • 256KB RAM/ 2MB FLASH

      • Working Voltage: DC 3.0-3.6V

      • Maximum transmission rate up to 72.2 Mbps with 20 MHz bandwidth.

      • Maximum transmission rate up to 150 Mbps with 40 MHz bandwidth.

      • EMW3080B is standard module；EMW3080A has hardware encryption. Improve the security level of Cloud connection and firmware protection. Security level in accordance with CC EAL5+ AVA_VAN5

      • EMW3080(A) Hardware Encryption Features

      • Encrypt firmware of clients to prevent cracking

      • Digital signature is used in firmware to ensure integrity and legality, preventing being tampering or replaced in OTA.

      • Automatically generate private key to save the certificate issued from the cloud, the cloud can identify the legality of the device to prevent illegal, counterfeit, non-secure accessing.

      • Prevent hackers to obtain sensitive data and code

      Wi-Fi Features

      • Support 802.11b/g/n，HT-40

      • Support Station, Soft AP, Station+Soft AP

      • Support EasyLink，Alink，Joinlink

      • Antenna: IPX

      Peripherals

      • 2x UART

      • 2x I2C

      • 1x SPI

      • 1x SWD

      • 6x PWM

      • Up to 13GPIOs

      Operating Temperature

      • -20℃ to +85℃

      Technical Details

      Weight G.W 3g
      Battery Exclude

      Part List

      EMW3080(BE) WiFi Module 1


      Documents
