Description

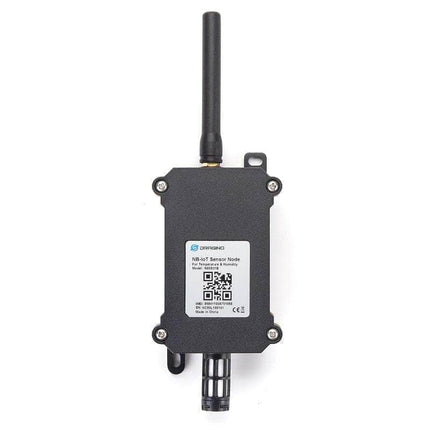

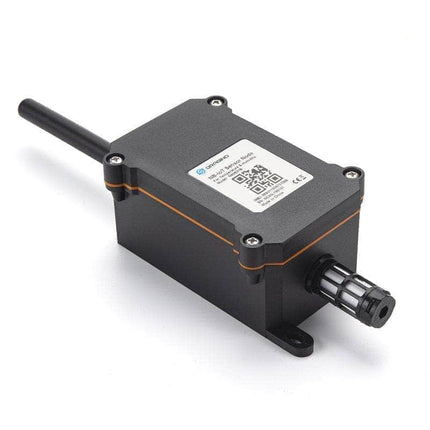

S31B LPWAN NB-IoT Outdoor Temperature and Humidity Sensor

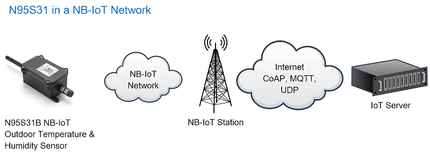

The Dragino S31 is an NB-IoT Temperature and Humidity Sensor for the Internet of Things solution. It is used to measure the surrounding environment temperature and relative air humidity precisely, and then upload to IoT server via NB-IoT network*.

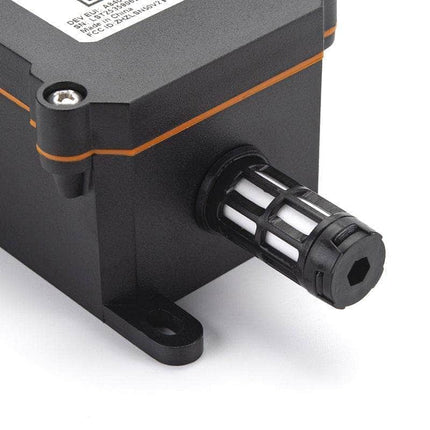

The temperature & humidity sensor used in S31 is SHT31, which is fully calibrated, linearized, and temperature compensated digital output from Sensirion, it provides strong reliability and long-term stability. The SHT31 is fixed in a waterproof anti-condensation casing for long-term use.
S31B supports different uplink methods include TCP, MQTT, UDP, and CoAP for different application requirements.
S31 is powered by an 8500mAh Li-SOCI2 battery, It is designed for long-term use up to several years. (Real-world battery life depends on the use environment, update period. Please check the related Power Analyze report).
Features:
- NB-IoT Bands: B1/B3/B8/B5/B20/B28 @H-FDD
- Monitor Temperature & Humidity via SHT31
- AT Commands to change parameters
- Uplink on periodically
- Downlink to change configure
- IP66 Waterproof Enclosure
- Ultra-Low Power consumption
- AT Commands to change parameters
- Micro SIM card slot for NB-IoT SIM
- 8500mAh Battery for long term use
Applications:
- Smart Buildings & Home Automation
- Logistics and Supply Chain Management
- Smart Metering
- Smart Agriculture
- Smart Cities
- Smart Factory
