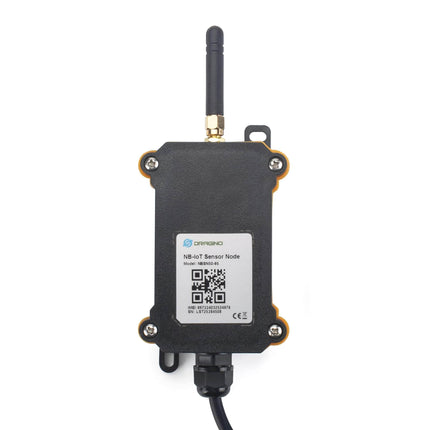

NBSN95 Waterproof Wireless NB-IoT Sensor Node
NBSN95 works with NB-IoT sim cards (global coverage).
NBSN95 is a Long Range LPWAN NB-IoT Sensor Node. It is designed for outdoor data logging and powered by 8500mAh Li/SOCl2 battery for long term use and secure data transmission. System Integrator can use NBSN95A to rapidly deploy NB-IoT sensor node for their IoT solution. NBSN95 is easy to program, create and connect things everywhere.

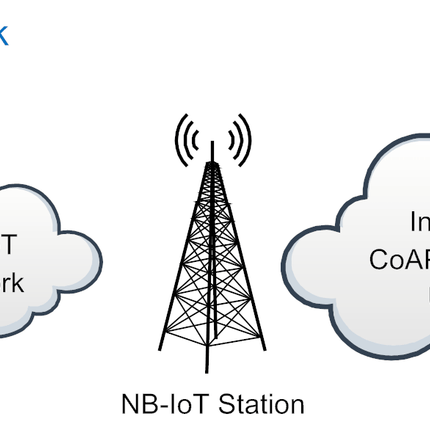

NarrowBand-Internet of Things (NB-IoT) is a standards-based low power wide area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency, especially in deep coverage.

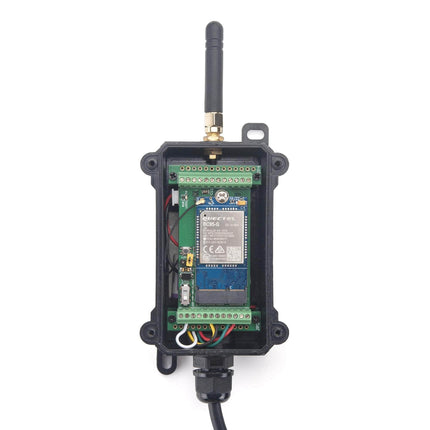

NBSN95 is an open-source project. It is based on the STM32L072CZT6 ultra-low-power ARM® Cortex®-M0+ microcontroller. Developers can get completely software and hardware design files and adapter for their projects.
Features:
- STM32L072CZT6 MCU
- NB-IoT Bands: B1/B3/B8/B5/B20/B28 @H-FDD
- Pre-load bootloader on USART1/USART2
- MDK-ARM Version 5.24a IDE
- I2C, LPUSART1, USB, SPI2
- 3x12bit ADC, 1x12bit DAC
- 20xDigital I/O
- Open-source hardware/software
- IP66 Waterproof Enclosure
- Ultra-Low Power consumption
- AT Commands to change parameters
- Micro SIM card slot for NB-IoT SIM
- 8.5 Ah Battery for long term use
Applications:
- Wireless Alarm and Security Systems
- Home and Building Automation
- Automated Meter Reading
- Industrial Monitoring and Control
- Long-range Irrigation Systems, etc.
NB-IoT Spec
- Support Bands
- - B1 @H-FDD: 2100MHz
- - B3 @H-FDD: 1800MHz
- - B8 @H-FDD: 900MHz
- - B5 @H-FDD: 850MHz
- - B20 @H-FDD: 800MHz
- - B28 @H-FDD: 700MHz
- Protocol: CoAP, UDP, MQTT
MCU Spec
- MCU: STM32L072CZT6
- Flash:192KB
- SRAM:20KB
- EEPROM:6KB
- Clock Speed: 32Mhz
Absolute Maximum Ratings:
- VCC: 0.5v ~ 3.9v
- Operating Tempature: -40 ~ 85°C
- I/O pins: 0.5v ~ VCC+0.5V
Common DC Characteristics:
Power Consumption:
Battery:
- Li/SOCI2 rechargeable battery
- Capacity: 8500mAh
- Self Discharge: <1% / Year @ 25°C
- Max continuously current: 500mA
- Max boost current: 2A, 1 second
Package Includes:
- 1 x NBSN95 NB-IoT Sensor Node (12mm diameter cable connector)
- 1 x External NB-IoT antenna
NBSN95 Download Center
