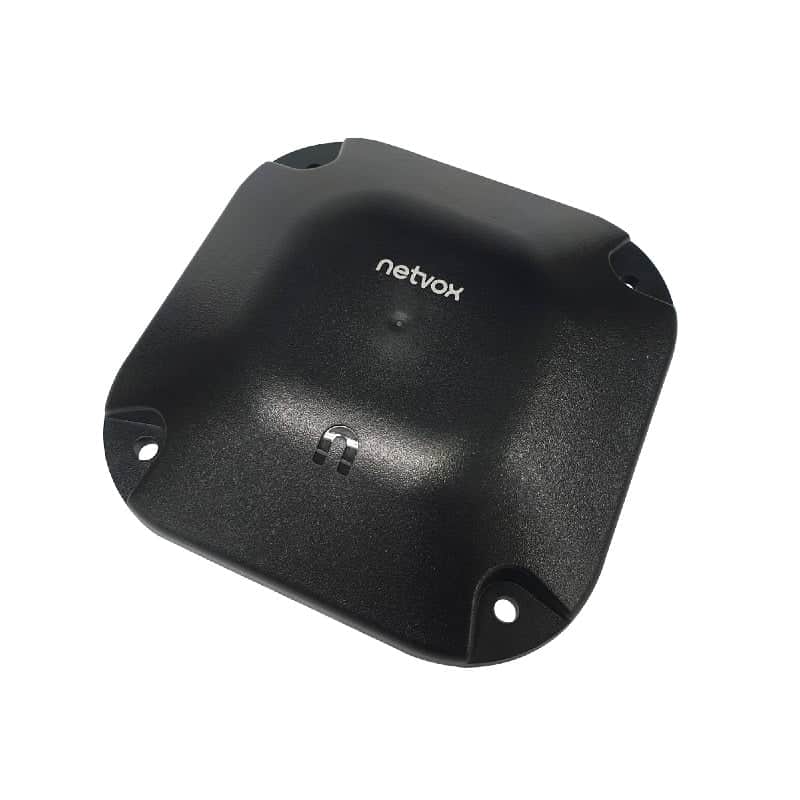

Netvox R719A Wireless LoRaWAN Surface-Mounted Parking Sensor
R719A is a smart parking vehicle detection sensor. It can be used to detect the presence or absence of parking vehicles in the parking space. It uses the SX1276 wireless communication module and adds vehicle status information to the gateway, and displays the collected data in the gateway.
Features:
• SX1276 wireless communication module
• The magnet approach to the top cover to turn on/off
• 2 ER18505 battery (3.6V/section) in parallel
• Geomagnetic and radar sensor detection
• IP67 rating
• R719A weight limit: 10 tons for 30 seconds
• LoRaWAN™ Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Configuration parameters can be configured through third-party software platforms, data can be read and alarms can be set via SMS text and email (optional)
• Available third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
• Low power consumption and long battery life
Specifications:
Electrical:
|
Input Power
|
2 x 3.6V ER18505 (3.6V 4000mAh/section) in parallel
|
|
Battery Life
|
5 years (conditions: ambient temperature: 25℃, report every 60 minutes,
txpower = 20 dBm, LoRa spreading factor SF = 10)
|
|
Standby Current
|
80 uA
|
|
Wakeup Current
|
6.3mA@3.3V
|
|
Receiving Current (max)
|
11mA @3.3V
|
|
Transmitting Current (max)
|
120mA/3.3V
|
|
Battery Voltage Measurement
Accuracy
|
±0.1V
|
Frequency:
|
Default Frequency
|
AU915Mhz
|
|
TX Power
|
US915 20dbm；
AS923 16dbm；
AU915 20dbm；
CN470 19.15dbm；
EU868 16dbm；
KR920 14dbm；
IN865 20dbm；
|
|
Receiving Sensitivity
|
-136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps)
|
|
Antenna Type
|
Build-in antenna
|
|
Communication Distance
|
10km
(The actual distance may vary depending on the environment.)
|
|
Data Transfer Rate
|
0.3kbps ~ 50kbps (LoRa)
1.2kbps ~ 300kbps (FSK)
|
|
Modulation
|
LoRa/FSK (Note: Please choose one modulation.)
|
|
Supportable LoRaWAN Frequency
|
EU863-870, US902-928, AU915-928, KR920-923, AS923-1, AS923-2, AS923-3,
IN865-867, CN470-510 (Configured before shipment)
|
Physical:
|
Dimensions
|
150mm * 150mm * 30mm
|
|
Weight
|
353g
|
|
Operating Temperature Range
|
-20℃ to 75℃
|
|
Environment Humidity Range
|
<90%RH (No condensation)
|
