Noise click - MikroElektronika Noise Detection

Description

Noise click - MikroElektronika Noise Detection

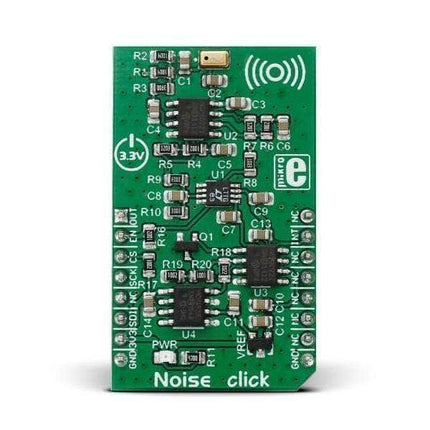

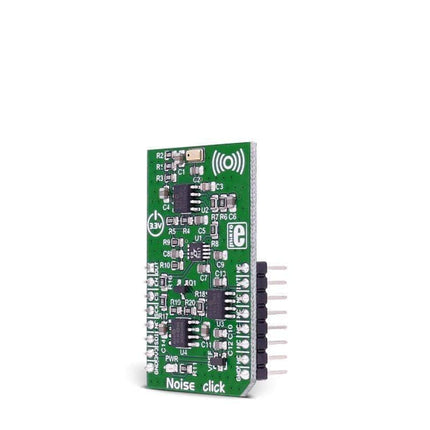

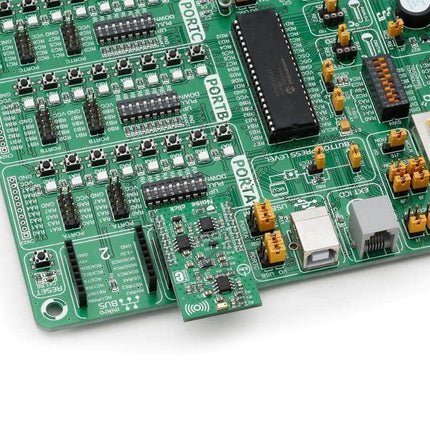

Noise click is a mikroBUS add-on board with noise detecting circuitry. It enables you to set a noise detection threshold for alarm systems, environmental monitoring or data logging.

When the volume of ambient sound reaches the set threshold, an interrupt is triggered.
The most important parts of the circuit are the microphone, an RMS-to-DC converter, two dual rail-to-rail Input/Output 10 MHz operational amplifiers, and a 12-bit digital-to-analog converter (DAC).

The 12-bit DAC provides the reference voltage — the noise threshold — for the comparator. You set the exact level through the SPI interface. The threshold should be configured through trial and error (4096 discrete values to select from).

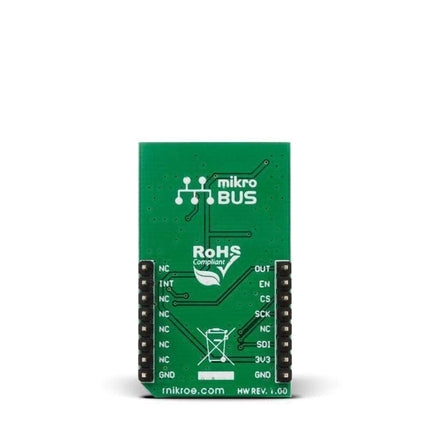

Beside SPI, EN and OUT pins provide additional functionality.

The board works on a 3.3V power supply.

Downloads

Noise click - MikroElektronika Noise Detection

Product form

SKU: MIKROE-2371

$50.00 $32.00 Excl. GST

$32.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    Noise click - MikroElektronika Noise Detection

    Noise click is a mikroBUS add-on board with noise detecting circuitry. It enables you to set a noise detection threshold for alarm systems, environmental monitoring or data logging.

    When the volume of ambient sound reaches the set threshold, an interrupt is triggered.
    The most important parts of the circuit are the microphone, an RMS-to-DC converter, two dual rail-to-rail Input/Output 10 MHz operational amplifiers, and a 12-bit digital-to-analog converter (DAC).

    The 12-bit DAC provides the reference voltage — the noise threshold — for the comparator. You set the exact level through the SPI interface. The threshold should be configured through trial and error (4096 discrete values to select from).
    Beside SPI, EN and OUT pins provide additional functionality.

    The board works on a 3.3V power supply.

    Downloads
