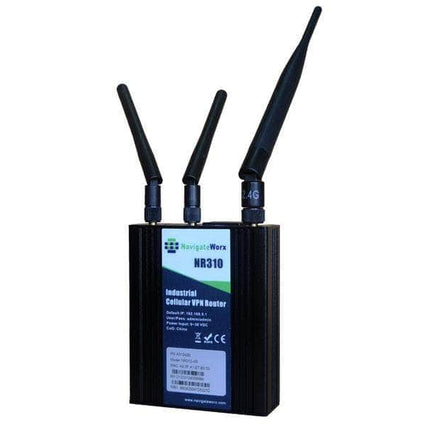

Industrial Premium 4G LTE Cellular NR310 Router Dual SIMs - 4G LTE/3G, WiFi, Dual SIMs, 1 x Eth, 1 x RS232 (3 PIN), 1 x RS485, 9 - 36VD
Frequency Bands: B1-B2-B3-B5-B7-B8-B20-B28 (Suit AU Freq. Bands inc. Telstra)
Navigateworx NR310 series industrial cellular 4G/3G VPN router offers a single, flexible platform to address a variety of wireless communications needs with over-the-air configuration and system monitoring for optimal connectivity. This router enables wireless data connectivity over public and private LTE cellular networks at 4G speeds.

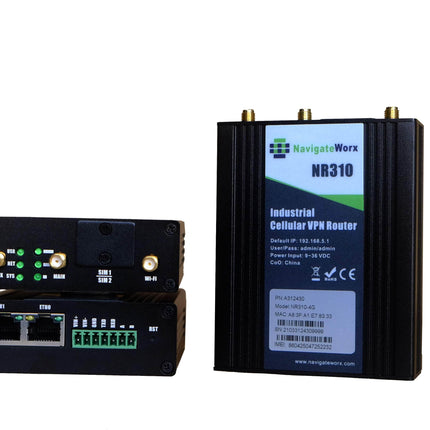

NR310 router has dual SIM backup 2 Ethernet ports 2.4GHz WiFi RS232 and RS485 interfaces
NR310 series router supports 9 to 36 VDC wide range power inputs, designed with reverse-voltage protection mechanism for greater reliability. It is an advanced choice for universal wireless M2M applications with reliable features for data transmission.
Specifications
- Includes WiFi
- Dual SIMs Card, Failover
- 1 Ethernet Port, 100 Mbps, RJ45 connector
- 1 RS232 (3 PIN) & 1 RS485
- SMS configuration System
- Number of Antennas: 2 (MAIN + AUX)
- Wide Operating Temperature: -40 to 75
- Wide Range Power Input: 9 to 48V
- Hardware RTC & Watchdog
- Timer Reboot / SMS Reboot
- LTE Connected on Demand
- Multiple VPNs Supported
- Local Web & SNMP & CLI Configuration
- 3rd party Central Management Platform
- VPNs: OpenVPN, GRE, IPSec, L2TP, PPTP, DMVPN
- Config: Local Web & SNMP & CLI Configuration
- High EMC Level
- DIN-rail mounting
Applications
- Video Surveillance
- Retail Markets, including Vending Machines, Kiosk, etc
- Remote Monitoring - SCADA
- Intelligent Transportation System
- Industrial Automation
- Automatic Metering Reading
Cellular Interface
- Standards: FDD-LTE/TDD-LTE, WCDMA/UMTS/HSPA/HSPA+/EDGE/GPRS,
- 2x SMA female antenna connector
- 2 x SIM (3.0V & 1.8v)
WiFi
- Wireless Mode: IEEE 802.1b/g/n Access Point (AP) and Client
- Wireless Speed: 150 Mbps
- Wireless Security: WPA WPA2 WEP CCMP TKIP
- Frequency Bands: 2.412 - 2.484 GHz (2.4 GHz ISM band)
- Antennas: 1 x RP-SMA for Wi-Fi antenna connector
Serial Interface
- 1 x RS232 (3 PIN): TX, RX, GND
- 1 x RS485 (2 PIN): Data+ (A), Data-(B)
- Baud rate: 300 bps to 115200 bps
- Connector: terminal block
- 15KV ESD protection
Software
- Network protocols: DHCP, ICMP, PPPoE, HTTP, HTTPS, DNS, VRRP, NTP.
- VPN: IPSec, PPTP/L2TP client, GRE, OpenVPN, DMVPN
- Policy: RIPv2/OSPF/BGP dynamic route (optional)
- Firewall & Filter: Port forwarding, DMZ, anti-DoS, ACL
- Serial port: TCP server and client, UDP
- Management: Web, SNMP, 3rd party platform
Power Supply and Consumption
- Connector 3-pin 3.5 mm female socket with lock
- Input voltage range:
- Power consumption:
- Idle: 100 mA@12V
- Data link: 400 mA (peak) @12V
- 9-48VDC
Environmental
- Operation temperature:-40 +75 C
- Store temperature: -40-+85 C
- Operation humidity: 5% to 95% non-condensing
| Optional Accessories |
|
| Power Supply |
Power Supply Adapter, AU Plug, Input 100 to 240VAC, Output 12VDC 1.5A |
| Cellular Antenna |
4G / 3G / 2G Megnet Antenna, 3 Meters Long, 698-960 / 1710-2700 MHz, 3bi, Φ 29×112mm, AC |
| Din Railway Kit |
Din Railway Kit, 35 mm, Alumunium with Black Spray Surface, 50 * 40 * 8.5 mm, 3 * M3.5 Screw Holes |
Documentations:
NR310 Datasheet
NR300 User Manual
