NR530X 5G NR WiFi6 AX7800 tri-band Outdoor Modem WiFi Access Point

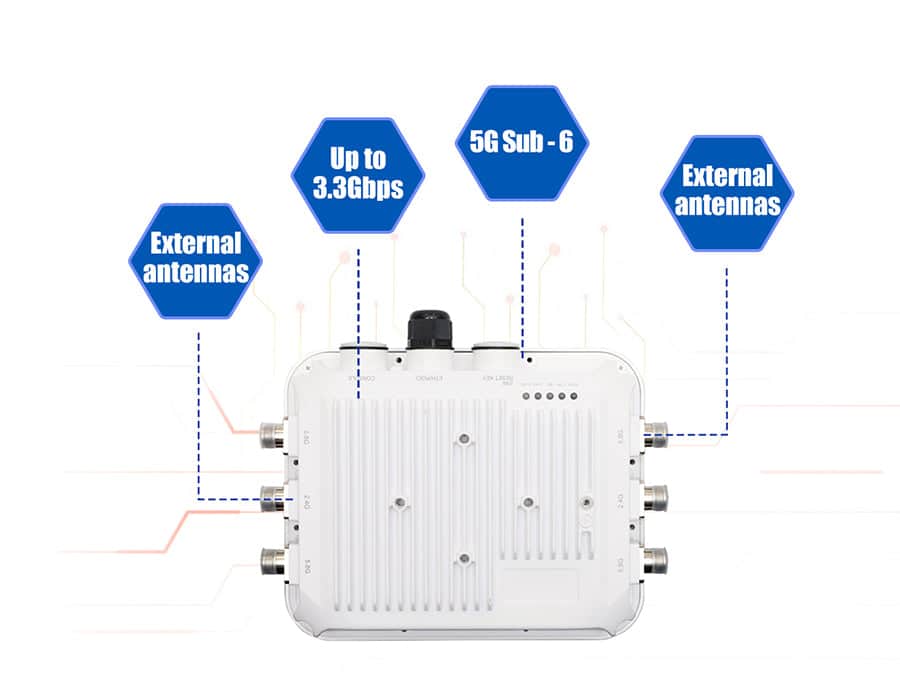

NR530X is an outdoor WiFi6 tri-band AP that supports 5G NR, which is also called FWA (Fixed Wireless Access) AP. The product is based on the powerful Qualcomm wireless core. The product is based on the powerful Qualcomm core, with 27dBm TX power and external antennas. It is compatible with IEEE 802.11a/b/g/n/ ac /ax protocols and supports WiFi6 tri- band(2.4 Ghz/5Ghz-1/5Ghz-2) , the maximum concurrent rate is close to 7800Mbps. The product comes with a standard configuration of 512MB RAM(customizable from 256MB to 1GB). The product is equipped with the 5G Sub-6GHz M.2 module designed for IoT/eMBB applications, automatically adapts to 5G NR NSA&SA and supports mutual backup between wired broadband and cellular wireless broadband networks. The excellent performance and stability not only come from the high-end Qualcomm core platform, but also rely on the professional hardware and software designed by our professional R&D team. The product can be widely used in industries and scenarios such as park coverage, mine sites, smart warehousing and logistics, smart city, exhibition halls and venues.

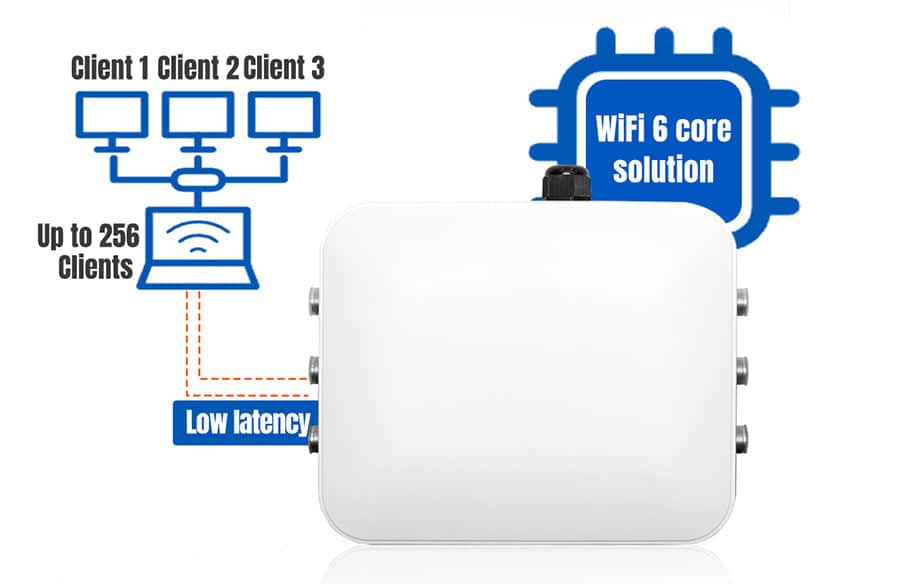

Powerful wireless core

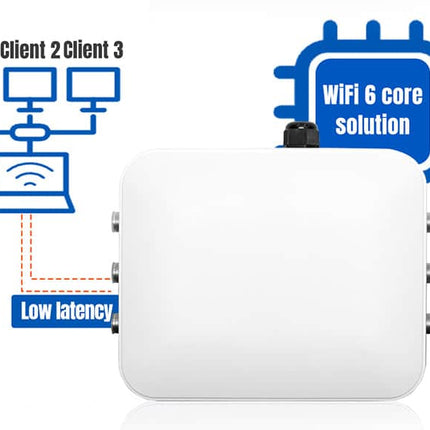

The product adopts the powerful WiFi6 wireless core of Qualcomm, which supports the latest features such as tri-band concurrency, OFDMA, MU-MIMO, and 160Mhz, and supports up to 256 wireless terminals. With the support of MU-MIMO technology, multi-user wireless access does not require queuing and access latency can be minimised.

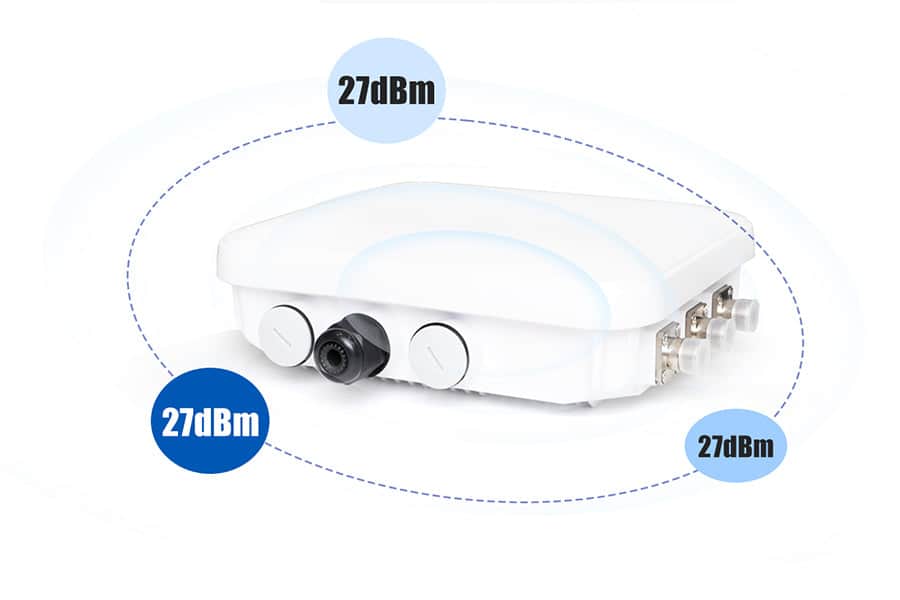

High-power WiFi

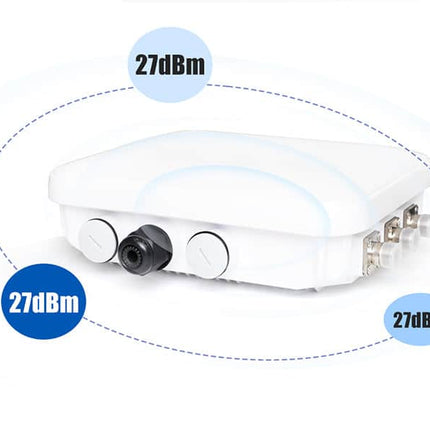

The wireless transmission power of up to 27dBm ensures stronger signals, wider coverage, and stronger penetration capabilities.

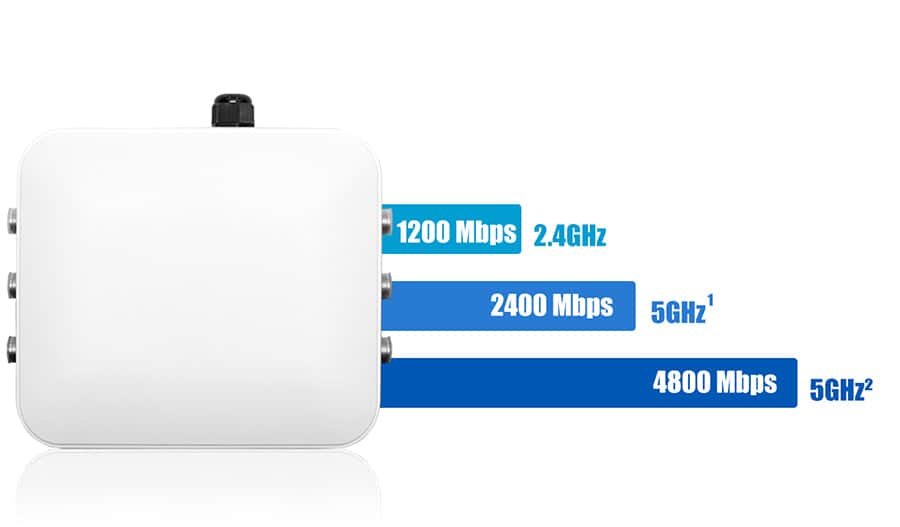

WiFi6 tri-band concurrency, ultra-high speed

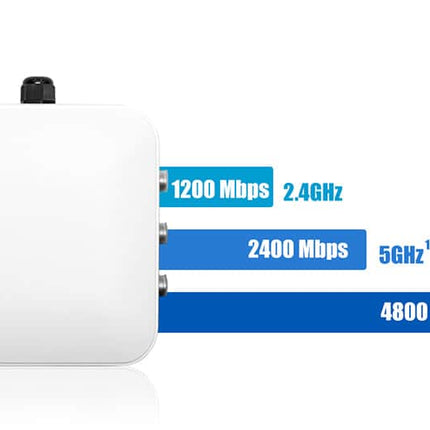

Tri-band concurrent rate reaches 7776.5Mbps - - 2.4Ghz maximum rate 573.5Mbps, 5Ghz-1 maximum rate 2401Mbps, 5Ghz-2 or 6Ghz maximum rate 4802Mbps.

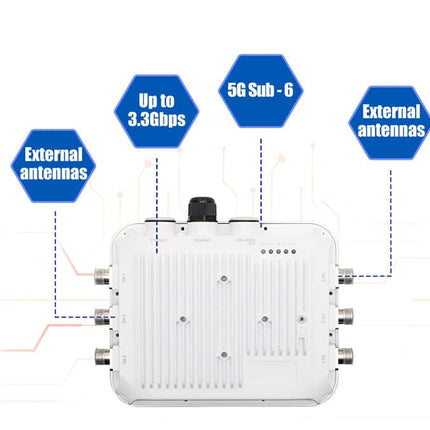

Supports 5G NR
The product is equipped with the 5G cellular module based on Qualcomm X62 platform, which provides the highest 5G rate and the best stability&compatibility. Mutual backup between wired broadband and cellular broadband is achievable.

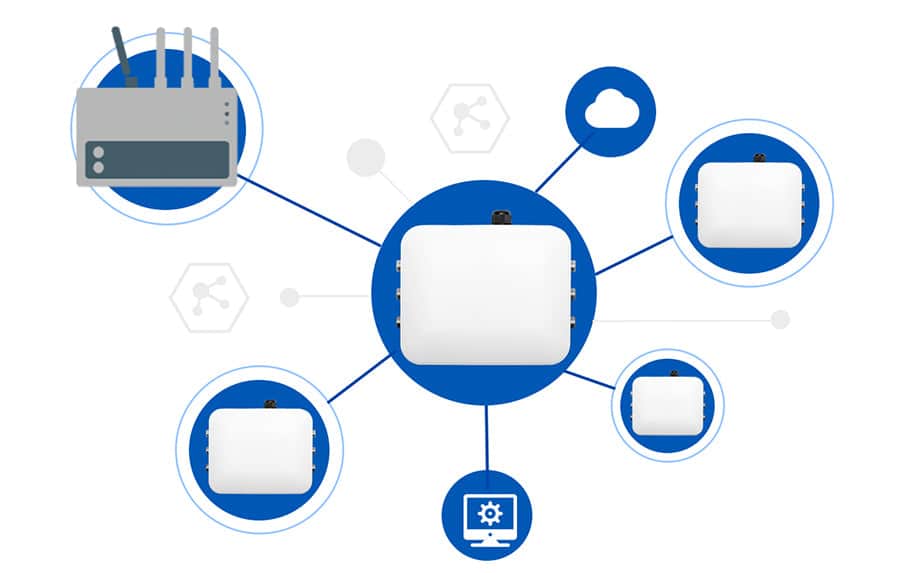

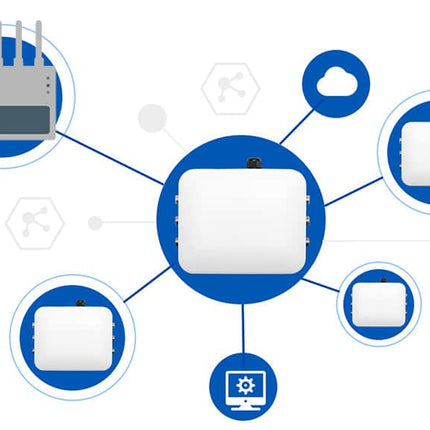

Fat and thin AP in one, supporting centralised controller management

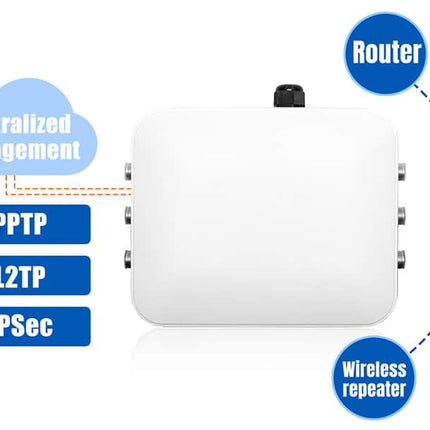

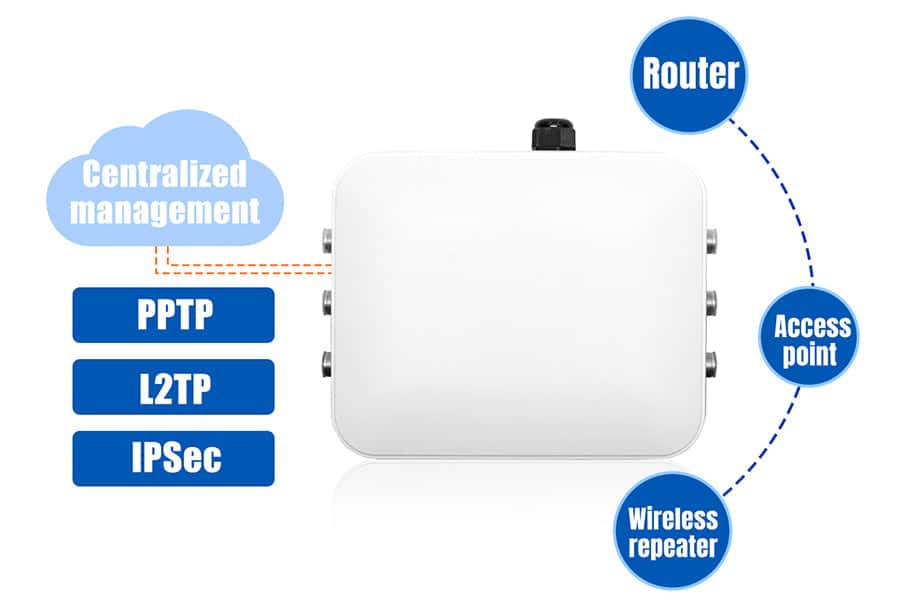

The device supports two AP modes: fat and thin. Different modes can be selected for different scenarios. In fat AP mode, each AP can be managed flexibly and independently, which is suitable for small networks with only a few APs and can be deployed flexibly and quickly; In thin AP mode, all APs are centrally managed by the controller, which is suitable for medium-sized and above networks. The controller delivers configurations to all APs remotely and supports remote upgrade of AP firmware.
Specifications
|
Mobile(Optional)
|
|
5G NR Module
|
Qualcomm Snapdragon X62
|
|
Frequency Bands
|
5G NR SA:
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
|
|
5G NR NSA:
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
|
|
LTE FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/ B30/B32/B66/B71
|
|
LTE TDD:
B34/B38/B39/B40/B41/B42/B43//B48
|
|
LAA:B46
|
|
WCDMA:B1/B2/B4/B5/B8/B19
|
|
Data Transmission Rates
|
5G SA Sub-6: Max. 2.4 Gbps (DL)/Max. 900 Mbps (UL)
|
|
5G NSA Sub-6: Max. 3.4 Gbps (DL)/Max. 550 Mbps (UL)
|
|
5G NSA mmWave: Max. 4.0 Gbps (DL)/Max. 1.4 Gbps (UL)
|
|
LTE-FDD: Max. 1.6 Gbps (DL)/Max. 200 Mbps (UL)
|
|
HSPA+ : Max. 42Mbps (DL)/Max. 5.76Mbps (UL)
|
|
Antennas
|
Internal 4 high gain antennas
|
|
SIM Card
|
1 x Mini SIM(2FF), Push-push type
|
|
Wi-Fi Interface
|
|
Wi-Fi Chipsets
|
2.4GHz: Qualcomm IPQ5018 (Dual-core ARM Cortex-A53@1GHz)
|
|
5GHz: Qualcomm QCN6102+QCN6024
|
|
Memory
|
Flash:SPI NAND 128MB + SPI NOR 32MB
|
|
RAM:512MB DDR3L SDRAM
|
|
Wi-Fi Standards
|
2.4 GHz: IEEE802.11b/g/n/ax
|
|
5.8 GHz: IEEE 802.11a/n/ac/ax
|
|
Frequency
|
2.4 GHz(2.412GHz - 2.484GHz)
|
|
5 GHz(5.15GHz～5.85GHz)
|
|
Antennas
|
2.4GHz: 2 × N-K type connectors
|
|
5GHz: 4 × N-K type connectors
|
|
Wi-Fi Security
|
Open, WPA, WPA2PSK_TKIPAES,WAP2_EAP, WPA3
|
|
Operating Modes
|
Wireless router mode
Access point mode
Repeater mode
|
|
End Users
|
256
|
|
Wi-Fi Data Rates
|
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 2402 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804Mbps
|
|
TX Power
|
27dBm
|
|
Ethernet Interface
|
|
WAN/LAN Port
|
1 x Gigabit WAN (can be configured as LAN) RJ45, 10/100/1000 Mbps, auto MDI/MDIX
|
|
Mode
|
Full or Half Duplex (Auto-Sensing)
|
|
Power Supply
|
|
Power Input
|
48V PoE input over WAN
|
|
Power Consumption
|
≤18W
|
|
Standard
|
IEEE 802.3at standard
|
|
Physical Characteristics
|
|
Housing
|
Metal
|
|
Dimension
|
263.6*198.46*82mm(L*W*H)
|
|

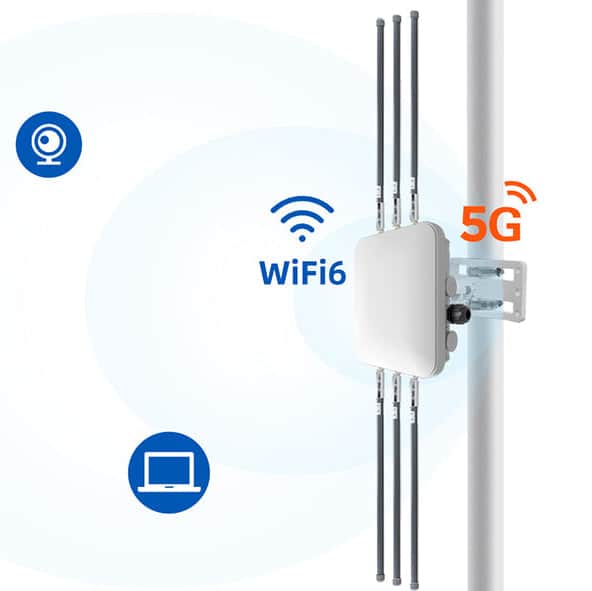

Installation
|
Wall or Bracket mounting
|
|
Operating Temperature
|
-40℃ ~ +70℃
|
|
Storage Temperature
|
-40℃ ~ +85℃
|
|

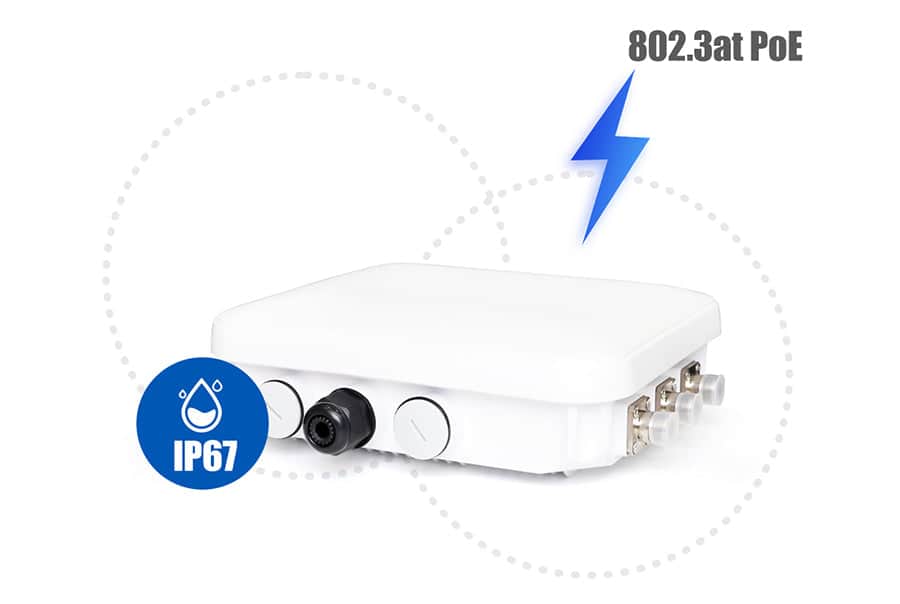

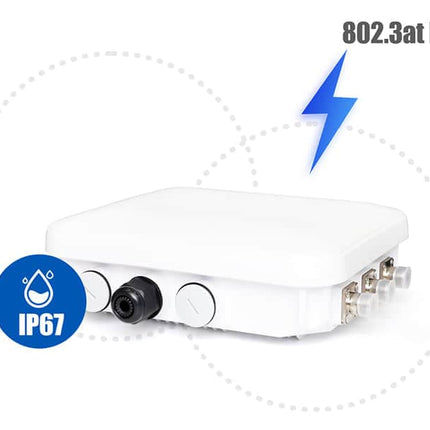

Ingress Protection
|
IP67
|
|
Weight
|
1800g
|
|
Software
|
|
VPN Client
|
IPSec Client
PPTP VPN Client
L2TP VPN Client
|
|
Others
|
|
Button
|
Press and hold 5s to restore factory Settings
|
|
Console
|
RJ45
|
|
Indicators LED
|
PWR, ETH, 5G, 2.4G, 5.8G.
|
