Jetson Orin Nano System on Module
|
|
AI Performance
|
Jetson Orin Nano 8GB with SD card slot on module - 67 TOPS
|
|
GPU
|
NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and
32 Tensor cores
|
|
CPU
|
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
|
|
Memory
|
8GB 128-bit LPDDR5 102 GB/s
|
|
Video Encoder
|
1080p30 supported by 1-2 CPU cores
|
|
Video Decoder
|
1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265)
|
|
Power
|
7W-25W
|
|

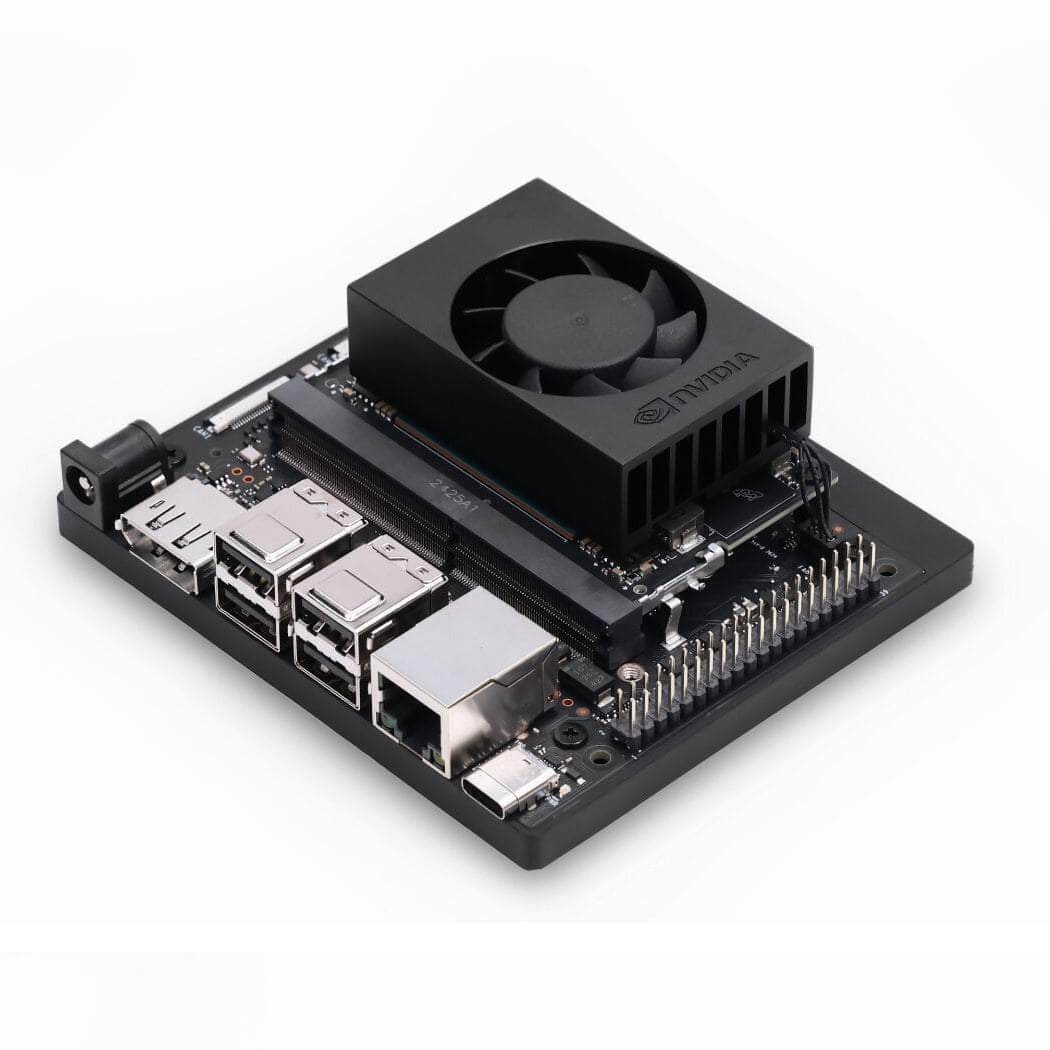

Carrier Board
|
|
Storage
|
1x microSD slot (UHS-1 cards up to SDR104 mode)
|
|
Networking
|
Ethernet
|
1x Gigabit Ethernet (10/100/1000M)
|
|
PCIe
|
M.2 KEY M
|
4x PCIe GEN3
2x PCIe GEN3
|
|
M.2 KEY E
|
1x M.2 Key E(pre-installed 1x Wi-Fi/Bluetooth combo module);
PCIe (x1), USB 2.0, UART, I2S, and I2C
|
|
I/O
|
USB
|
4x Type A USB 3.2 Gen2
1x Type C for UFP
|
|
CSI Camera
|
2x MIPI CSI-2 (22pin)
|
|
Display
|
1x DP 1.2 (+MST) connector
|
|
Fan
|
1x 4 pin Fan Connector (5V PWM)
|
|
CAN
|
1x CAN
|
|
Multifunctional Port
|
1x 40-Pin Expansion header
1x 12-Pin Control and UART header
|
|
RTC
|
RTC 2-pin, supports CR1220 but not included
|
|
Power Supply
|
9V-19V DC
|
|
Mechanical (W x D x H)
|
100mm x 79mm x 21mm
|
|
Product Weight
|
0.176 kg
|
|
Warranty
|
1-year warranty for development use only
|
