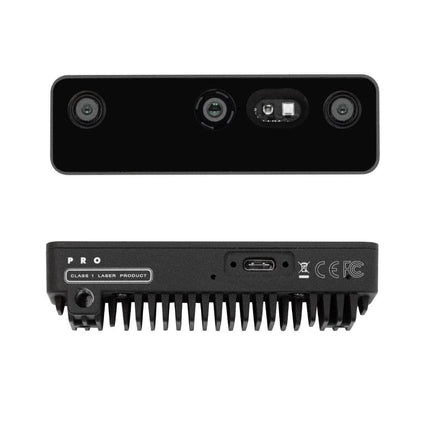

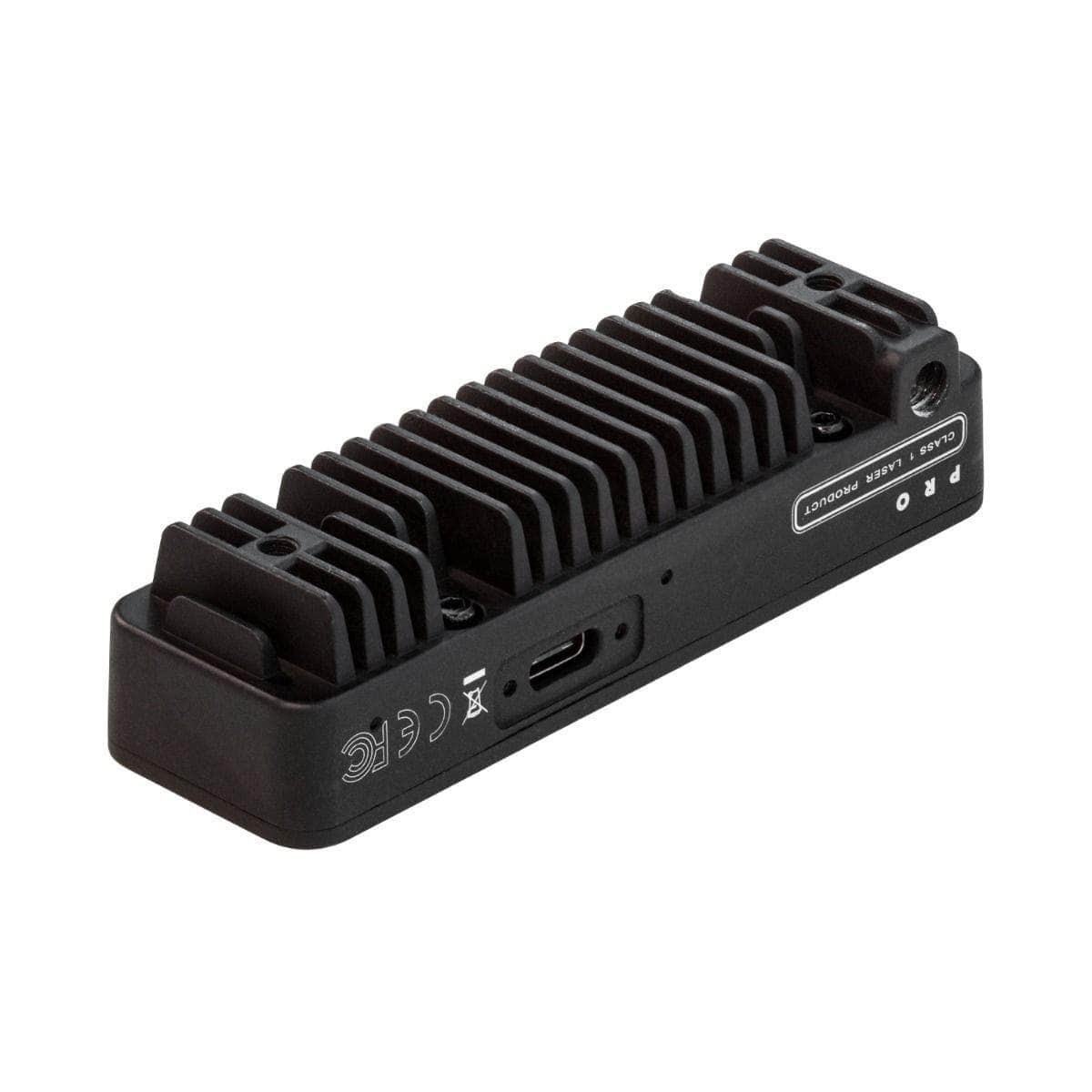

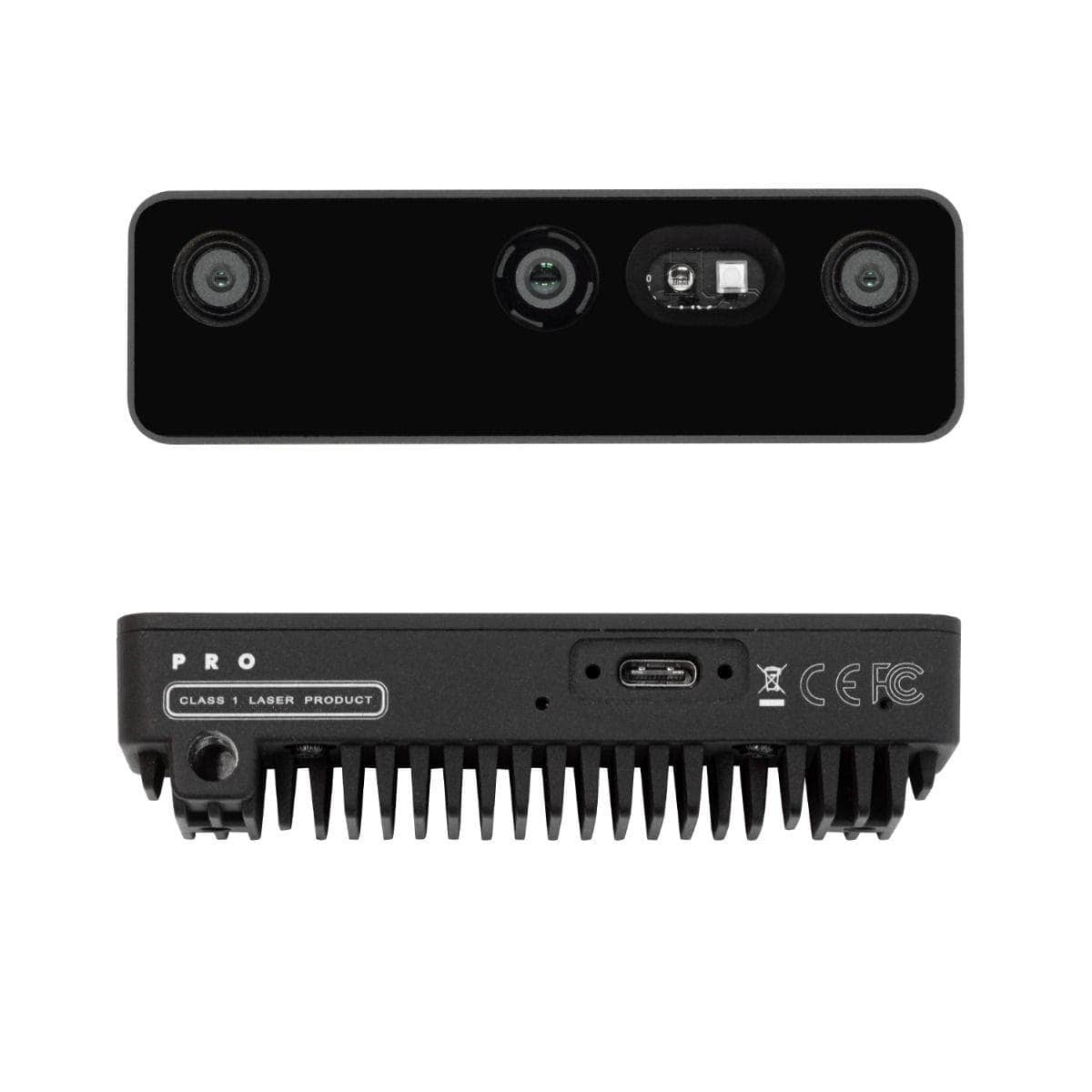

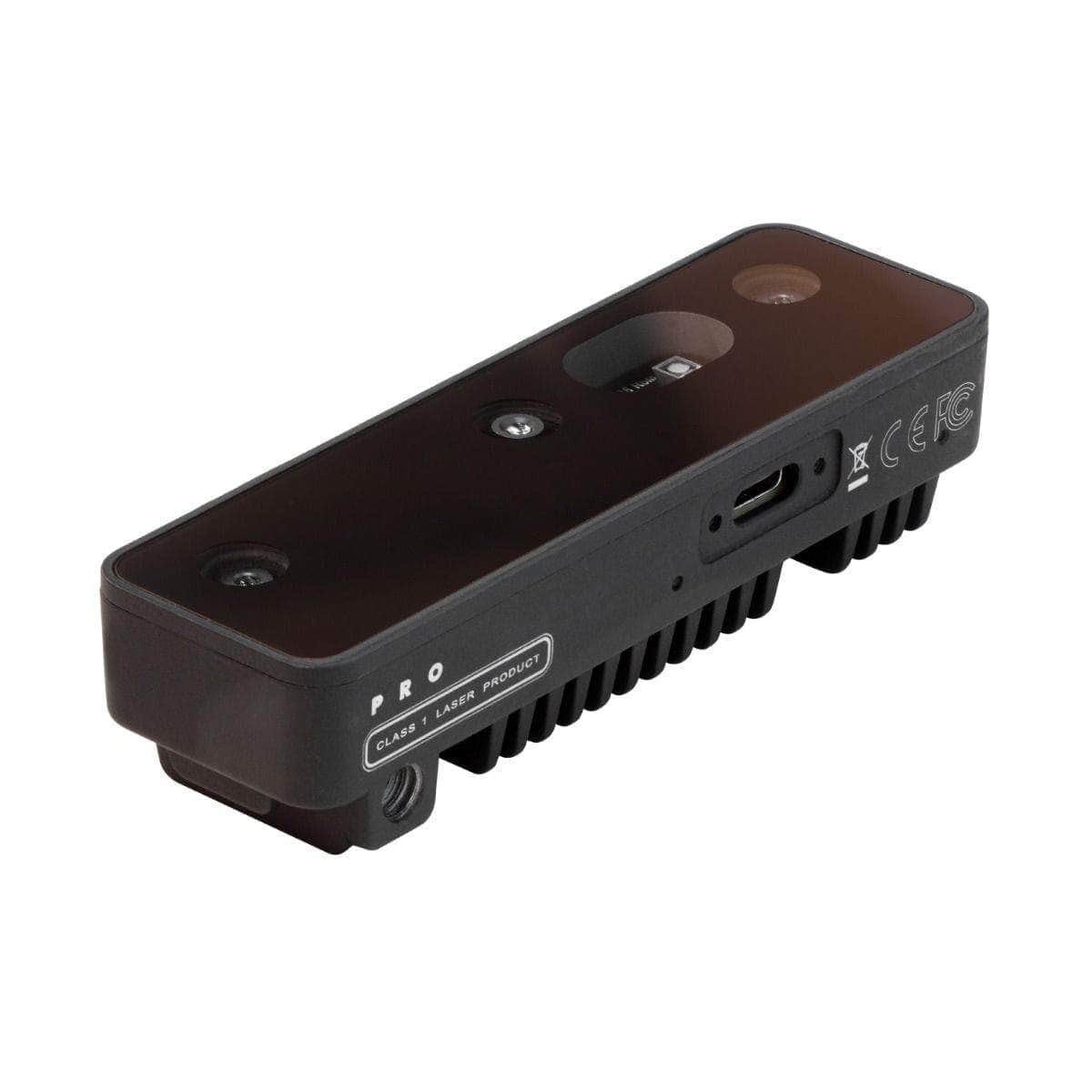

OAK-D-Pro: OV9282×2+IMX378+Intel Movidius Myriad X for Depth AI OAK
The OAK-D Pro is an upgraded version of OAK-D, featuring an IR laser dot projector (active stereo) and IR illumination LED (for “night vision”). It’s also smaller and lighter than the OAK-D.
Available in two variants:
Both the Fixed-Focus and Auto-Focus variants have fixed-focus grayscale stereo cameras. The Auto-Focus vs. Fixed-Focus variants of OAK-D-Lite differ only in the 12.3 MP colour camera. Fixed-Focus has the lens fixed in place mechanically and cannot move, whereas Auto-Focus has an electromagnet that controls the lens position dynamically.
-
Auto-Focus can focus on objects dynamically, which is mainly useful for objects within 50cm of the device. Auto-focus cameras can also be manually set to a specific focus position, utilising our API.
-
Fixed-Focus is recommended for heavy-vibration applications (e.g., drones, lawnmowers, bikes w/out suspension, etc. (see video)
Both Auto-Focus and Fixed-Focus can clearly see objects beyond 50 cm, working between 50 cm and infinity. Auto-Focus has the advantage that it can focus on objects as close as 10cm (see video).
Features:
-
Active Laser Depth: depth with no ambient light
-
Active Blanket IR illumination: computer vision with no ambient light
-
4 TOPS of processing power (1.4 TOPS for AI)
-
Run any AI model, even custom architectured/built ones
-
Encoding: H.264, H.265, MJPEG – 4K/30FPS, 1080P/60FPS
-
Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
-
Stereo depth perception at 120 FPS with filtering
-
Object tracking: 2D and 3D tracking
-
Dimension: 97×29.5×22.9 mm
-
Weight: 91g
Camera Specifications:
| |
Color camera |
Stereo pair |
| Sensor |
IMX378 |
OV9282 |
| DFOV / HFOV / VFOV |
81° / 69° / 55° |
81° / 72° / 49° |
| Resolution |
12MP (4032×3040) |
1MP (1280×800) |
| Focus |
Auto-Focus: 8cm – ∞ |
Fixed-Focus: 19.6cm – ∞ |
| Max Framerate |
60 FPS |
120 FPS |
| F-number |
2.0 |
2.2 |
| Lens size |
1/2.3 inch |
1/4 inch |
Laser dot projector projects many small dots in front of the device, which helps with disparity matching, especially for low-visual-interest surfaces (blank surfaces with little to no texture), such as a wall or floor. The technique that we use is called ASV – conventional active stereo vision – as stereo matching is performed on the device the same way as on OAK-D (passive stereo).
Blanket IR LED illumination allows perceiving low-light and no-light environments. You can run your AI/CV processes on frames that are illuminated by the IR LED. Note that the color camera doesn’t perceive IR light, so you would need to use a mono camera stream for your AI/CV processes.
Resources:

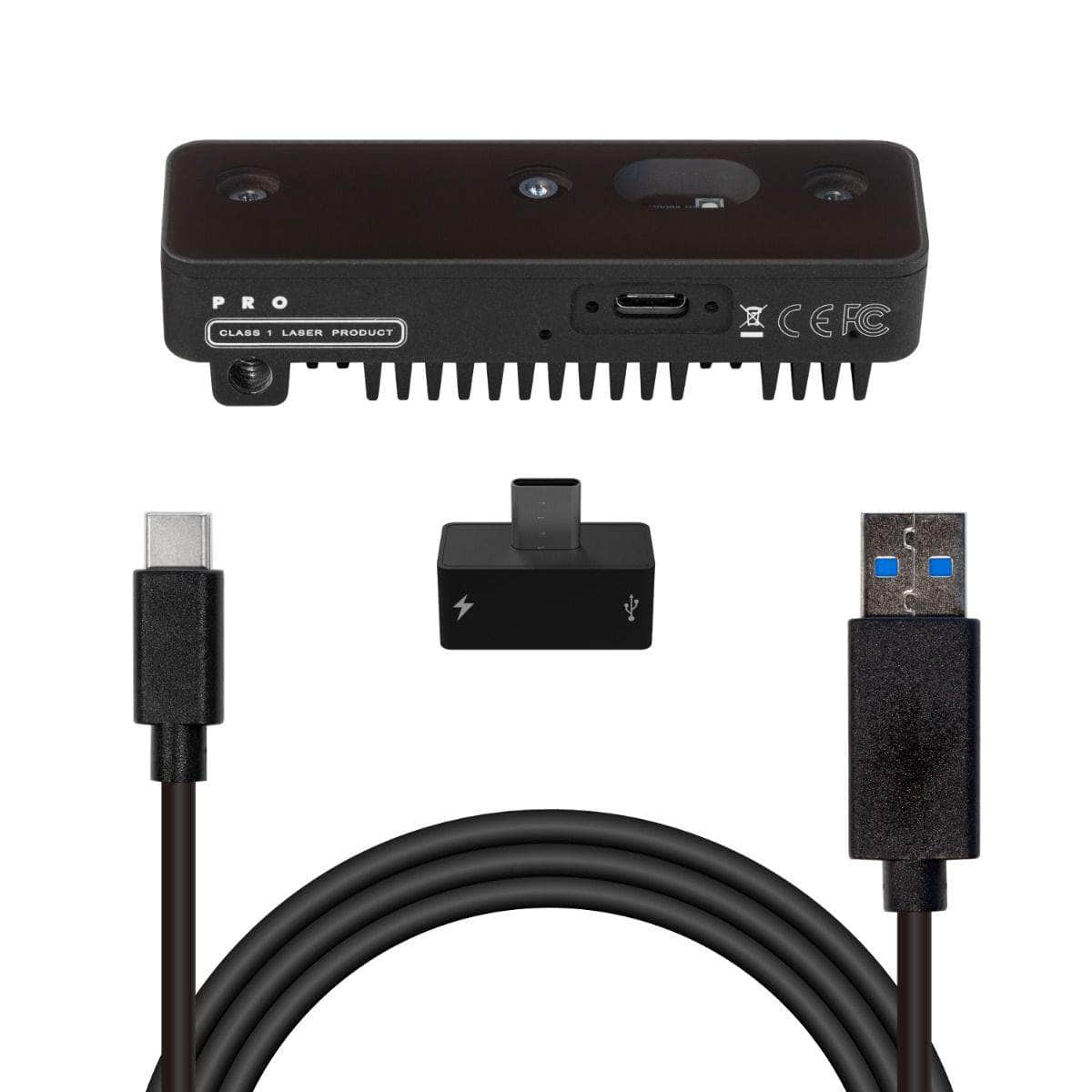

Includes:
- OAK-D-Pro camera

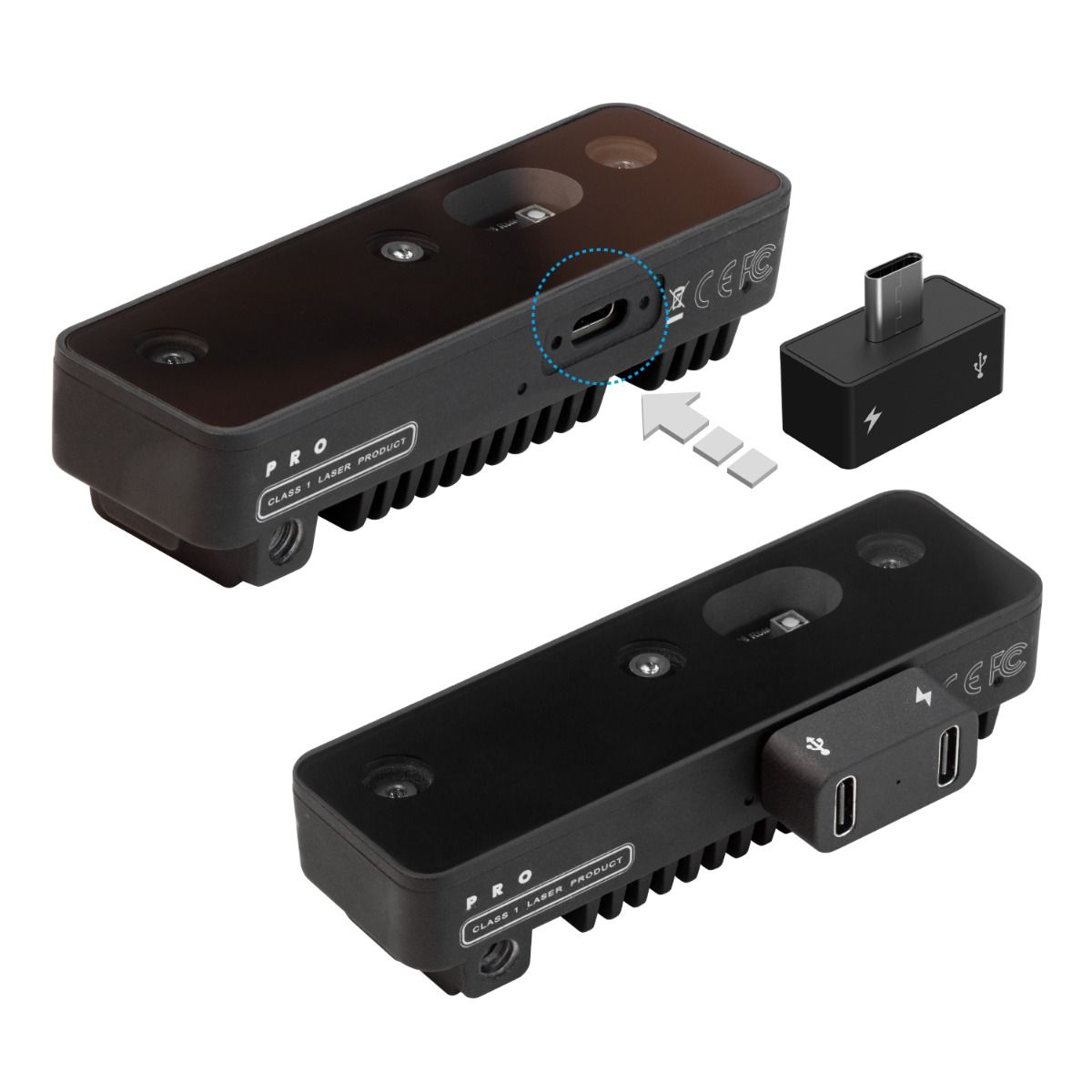

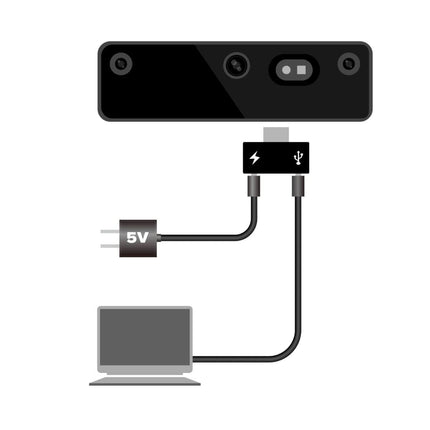

- Y-Adapter
- USB-C cable
