OAK-D Pro W OpenCV Depth AI Camera Kit

Description

OAK-D Pro W OpenCV Depth AI Camera Kit

OAK-D-Pro W is the ultimate camera for robotic vision that perceives the world like a human by combining a wide active stereo depth camera and a wide high-resolution colour camera with an on-device Neural Network inferencing and Computer Vision capabilities. It also features night vision for perceiving low-light and no-light environments. The Pro version is advised for applications that require high-quality and reliable stereo depth perception in any kind of environment, including low-light and texture-less scenes, where the traditional passive stereo approach struggles. Wide FOV allows you to capture more area in one shot, which can be especially useful for: Multi-camera setup, to reduce the number of cameras needed to cover the whole area AMRs, to cover larger area and to get more features for localization and 3D mapping - see VIO/SLAM documentation for more information Object tracking/counting, for example vehicle or people counting over a larger area.

Features

  • 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
  • Active stereo: IR dot projector improves depth perception, especially for low-visual-interest surfaces by projecting thousands of IR dots to the scene.
  • Night vision: IR illumination LED enables running your AI and CV algorithms in low-light or no-light environments
  • Run any AI model, even custom-architected/built ones (models need to be converted)
  • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
  • Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
  • Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability

Specifications

Central RGB Camera
Sensor IMX378

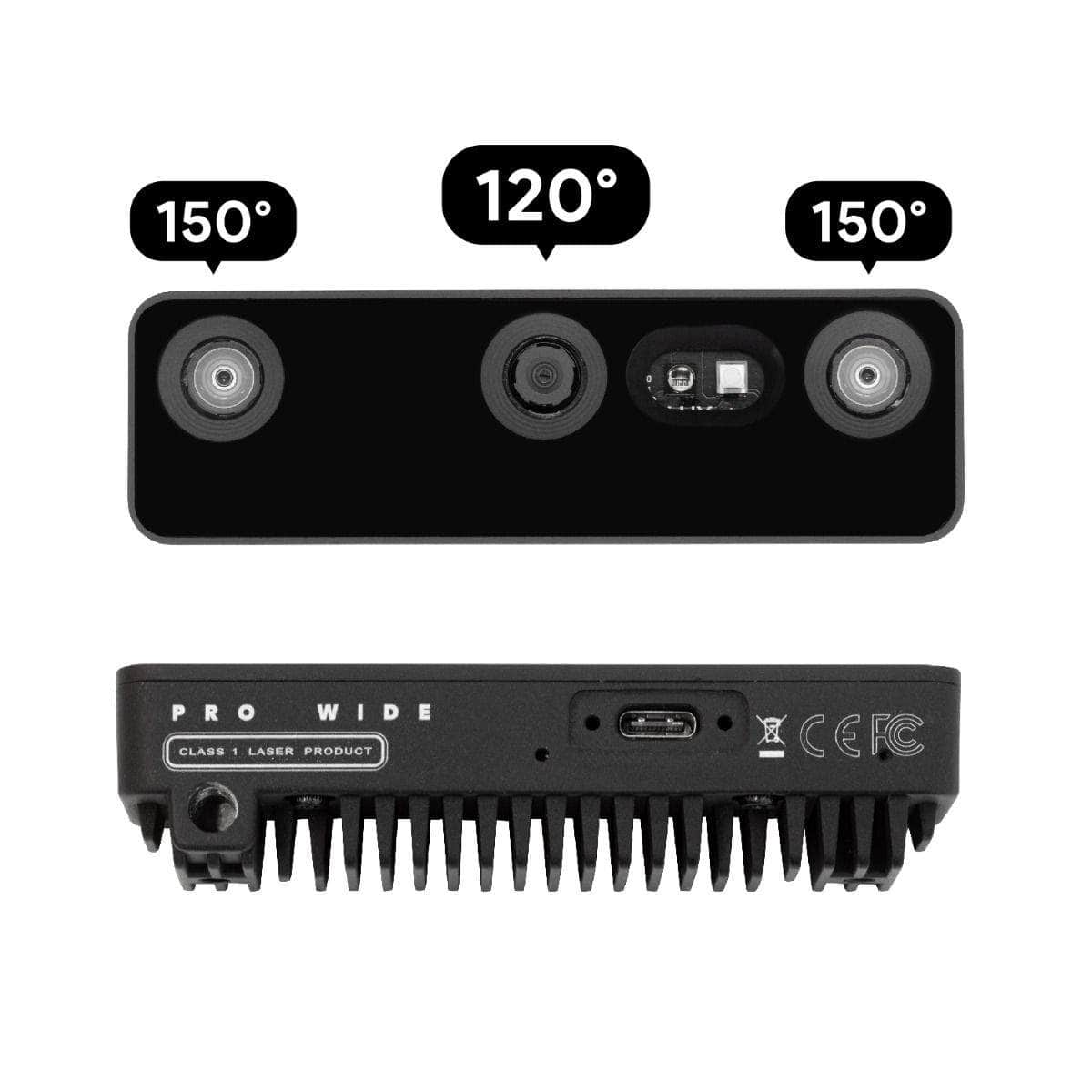

DFOV / HFOV / VFOV 120° / 95° / 70°
Resolution 12MP (4056x3040)
Focus FF: 60cm - ∞
Max Framerate 60 FPS
Stereo Pair Cameras
Sensor OV9282
DFOV / HFOV / VFOV 150° / 127° / 79.5°
Resolution 1MP (1280x800)
Focus FF: 18 cm - ∞
Max Framerate 120 FPS


Package Including

  • OAK-D Pro W camera
  • Cable USB-CA-1m

Product Documentation




OAK-D Pro W OpenCV Depth AI Camera Kit

Product form
Free pickup in our shop(s)

SKU: OAK-D-Pro-W

$799.00 $749.00 Excl. GST

$749.00
New stock coming, dispatch in about 15 days.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    OAK-D Pro W OpenCV Depth AI Camera Kit

    OAK-D-Pro W is the ultimate camera for robotic vision that perceives the world like a human by combining a wide active stereo depth camera and a wide high-resolution colour camera with an on-device Neural Network inferencing and Computer Vision capabilities. It also features night vision for perceiving low-light and no-light environments. The Pro version is advised for applications that require high-quality and reliable stereo depth perception in any kind of environment, including low-light and texture-less scenes, where the traditional passive stereo approach struggles. Wide FOV allows you to capture more area in one shot, which can be especially useful for: Multi-camera setup, to reduce the number of cameras needed to cover the whole area AMRs, to cover larger area and to get more features for localization and 3D mapping - see VIO/SLAM documentation for more information Object tracking/counting, for example vehicle or people counting over a larger area.

    Features

    • 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
    • Active stereo: IR dot projector improves depth perception, especially for low-visual-interest surfaces by projecting thousands of IR dots to the scene.
    • Night vision: IR illumination LED enables running your AI and CV algorithms in low-light or no-light environments
    • Run any AI model, even custom-architected/built ones (models need to be converted)
    • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
    • Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
    • Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability

    Specifications

    Central RGB Camera
    Sensor IMX378
    DFOV / HFOV / VFOV 120° / 95° / 70°
    Resolution 12MP (4056x3040)
    Focus FF: 60cm - ∞
    Max Framerate 60 FPS
    Stereo Pair Cameras
    Sensor OV9282
    DFOV / HFOV / VFOV 150° / 127° / 79.5°
    Resolution 1MP (1280x800)
    Focus FF: 18 cm - ∞
    Max Framerate 120 FPS

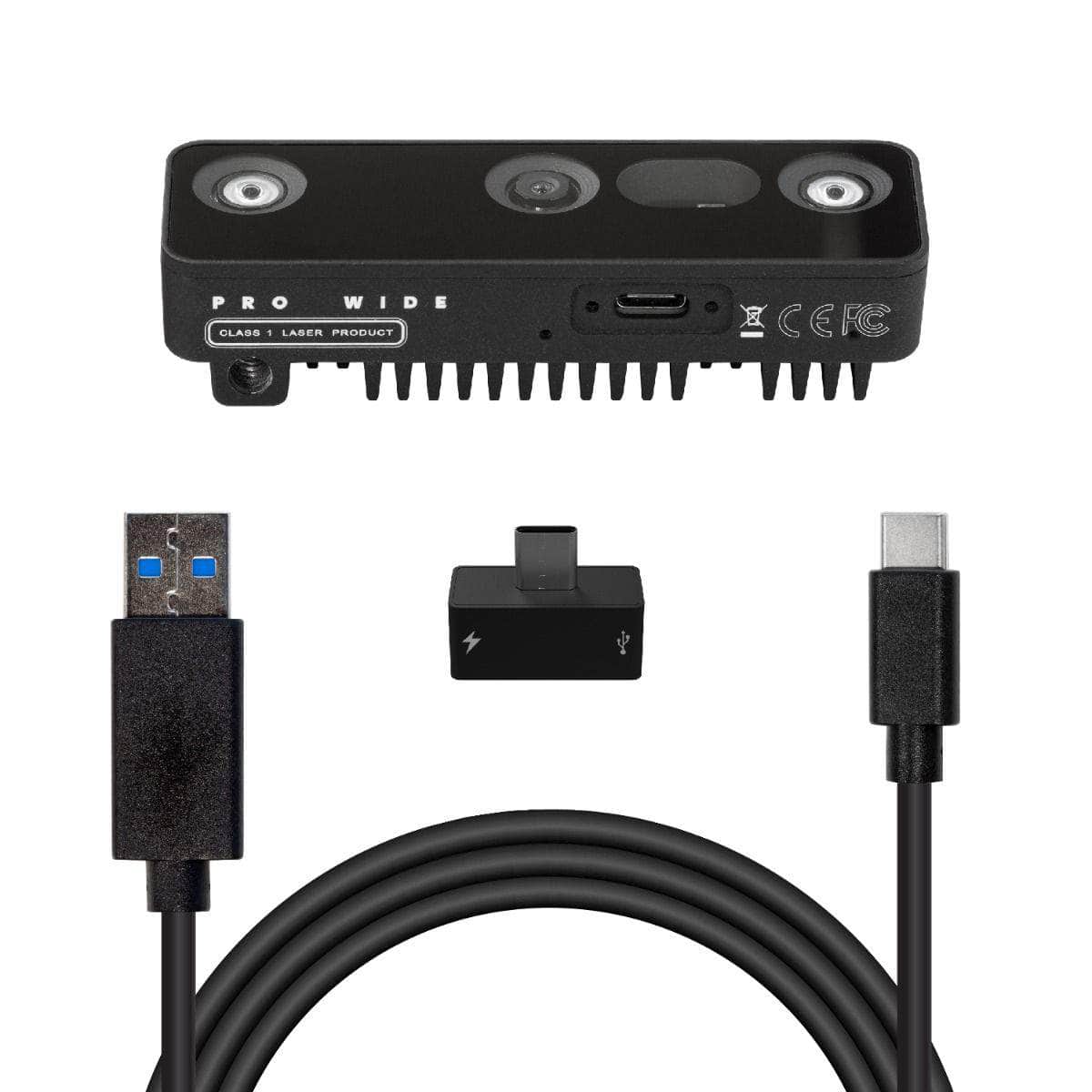

    Package Including

    • OAK-D Pro W camera
    • Cable USB-CA-1m

    Product Documentation
