Odyssey Blue J4125 128 GB is a powerful mini PC with super low power consumption. It’s a perfect device for personal, commercial, and industrial applications. You can use it as office equipment such as a desktop PC, NAS, router, or a home server for 4K media theater, NVR, Home Automation, gaming PC, and many more! The compact and stylish design will keep your desk clean and neat.
It's small, it's inexpensive for a fully activated Windows system or Ubuntu desktop. We also have Windows 10 pre-installed. Just simply connect it to a mouse, a keyboard, and a monitor with the ODYSSEY Blue. You can start playing your favorite game right away. Are you a Linux user? Just install your favorite Linux distribution! ODYSSEY Blue provides full support for popular Linux OS, like Ubuntu, Mint, Manjaro, etc. There are also abundant tutorial resources to help everyone no matter you are a mini PC beginner or a developer!
.png)
Odyssey Blue has been recognized and featured by leading industry media and community: ArsTechnica, Tom’s Hardware, The New Stack, CNXSoftware, TechRadar, HACKADAY, Notebook Check, Hackster, ExplainingComputers, Android Central, Linux Gizmos, PC Perspective, ETAPrime, and many more!
Features
- Fast processor: Intel® Celeron® J4125, Quad-Core 2.0-2.7GHz and Intel® UHD Graphics 600
- Integrated Arduino Coprocessor ATSAMD21 ARM® Cortex®-M0+
- Hybrid connectivity: Dual-Band 2.4GHz/5GHz WiFi, Dual Gigabit Ethernet, LTE capability with additional module
- Install whatever OS you like: Pre-installed Windows 10 (Unactivated), support Linux OS.
- Plenty of I/Os: Raspberry Pi 40-pin GPIO, Arduino headers, M.2 PCIe, SATA III, USB 2.0, Micro SD card slot; SIM Card slot, etc
-
Stylish mini PC with transparent acrylic re_computer case
Applications
Office PC/ NAS/ Soft Router/ Firewall/ 4K Home Theater/ NVR/ Home Automation/ Gaming/ Virtual Machine Monitor, and many more!
It can also be a NAS work with Open Media Vault and FreeNAS, it's both fast and large enough with external SSDs. If you want higher performance and more storage, you can use a standard M.2 PCIe or SATA SSD.
Flashing OpenWrt firmware, you can use Odyssey as the most trusted high-speed router with OpenWrt or OPNSense / pfSense with Dual Gigabit Ethernet. With 4G, even 5G cellular network connectivity via two of M.2 PCIe (B Key and M Key), it can also be a hybrid speed gateway.
Media Server? Of course, let Odyssey steam 4K for you with Plex, and enjoy family sharable entertainment. Plus, without any Ads using Pi-hole!
The J4125 supports Intel Hyper V virtualization and can be virtualized with Promox or VMware ESXi to create multiple instances or install multiple systems which makes it perfect for homelab option. For more information, please check this blog for ESXi installation.
Perfect work with Home Assistant, use Odyssey as your center of private and local home automation.
Connecting to IP cameras, it can also work as an NVR system, even with local processing AI capability with Frigate. (we recommend you can also add Coral AI accelerator for a faster inference, we tested there is 10FPS without Coral, enough tho!)
Also an Arduino fan? Program Arduino with onboard ATSAMD21 Core, an ARM Cortex-M0+ MCU. The ODYSSEY Blue J4125 128 GB is more than just a computer, with the Arduino Co-processor onboard, it can be used to connect with sensors, gyroscope, and much more. Why don’t you start exploring your IoT journey from here!
Specification
|
Components
|
ODYSSEY Blue J4125 128 GB
|
|
Processor
|
Intel® Celeron® J4125 (Frequency: 2.0 - 2.7GHz)
|
|
Coprocessor
|
Microchip® ATSAMD21G18 32-Bit ARM® Cortex® M0+
|
|
Graphics
|
Intel® UHD Graphics 600 (Frequency: 250 – 750MHz)
|
|
Memory
|
LPDDR4 8GB
|
|
Storage
|
External 128GB SSD
|
|
Wireless
|
Wi-Fi 802.11 a/b/g/n/ac @ 2.4/5 GHz HT160
|
|
Networking
|
Intel® I211AT PCIe Gigabit LAN, Supports Wake-On-LAN, Supports PXE
|
|
Audio
|
Microphone + headphone Combo Connector
|
|
USB
|
USB 2.0 Type-A x2, USB 3.1 Type-A x1, USB 3.1 Type-C x1
|
|
Video Interfaces
|
HDMI2.0a: Up to 4096x2160 @ 60Hz 24bpp / DP1.2a: Up to 4096x2160 @ 60Hz 24bpp
|
|
Expansion Slots
|
M.2(Key B, 2242/2280): SATA III, USB2.0, UIM; M.2 (Key M, 2242/2280): PCIe 2.0 ×4; Micro SD card Socket; SIM Card Socket; SATA III
|
|
Operating temperature
|
0°C～45°C
|
|
Storage temperature
|
-20°C～60°C
|
|
TPM
|
Built-in TPM 2.0
|
|
Power
|
DC Jack 5.5/2.1mm or Type-C PD; DC Jack input: 12-19V DC; Type-C input: 15V DC
|
|

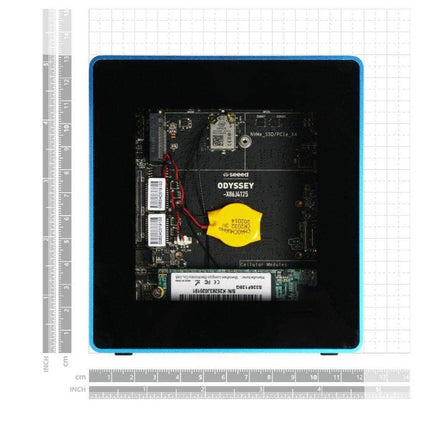

Dimensions
|
130x120x50mm
|
|
Certifications
|
FCC, CE, TELEC
|
Hardware Overview
Part List
- ODYSSEY - X86J4125 x 1
- User Manual x 1
- International Power Adapter
- Antenna x 2（Assembled）
- RTC Battery x 1（Assembled）
- Heat Sink(Assembled)
- Cooling Fan (Assembled)
- re_computer case x 1
- External 128g SSD (Assembled) x 1
