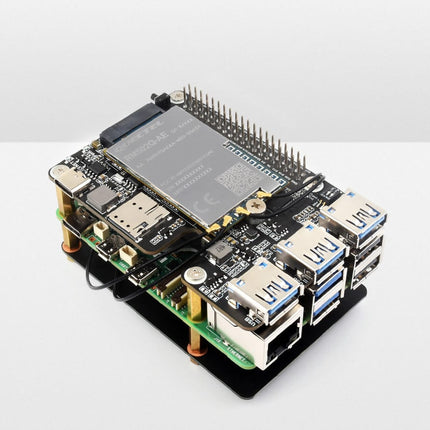

PCIe to M.2 4G/5G And USB 3.2 HAT for Raspberry Pi 5
Compatible With Multiple SIMCom/Quectel 4G/5G Modules With M.2 Key B Interface
Features:
- Designed for Raspberry Pi 5, HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion
- Extends 3x high-speed USB 3.2 Gen1 ports for connecting more peripherals
- Onboard M.2(NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages
- Onboard Type-C port for connecting to a PC for 4G/5G networking, debugging and firmware updating, or external power supply input
- Onboard power monitoring chip for real-time measurement of voltage, current and power
- Onboard SIM card slot for NANO-SIM card
- Onboard Reset button, Power and Network indicators for easy debugging and monitoring the operating status
- Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation
- Reserved airflow vent and mounting holes for cooling fan to increase airflow and provide better heat dissipation
Designed For Raspberry Pi 5, HAT+ Standard
Onboard PCIe Interface For Directly Connecting To Raspberry Pi 5 Via 16PIN Cable
More USB Capability For Raspberry Pi 5
Extends The PCIe Interface To 3x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals
Compatible With Multiple SIMCom/Quectel 4G/5G Modules With M.2 Key B Interface
Onboard M.2(NGFF) Key B Slot, Tested To Support SIM7600XX-M.2, SIM82XX And RM5XX Series Modules, Compatible With 3042/3052 Packages
Multi-System Support
Supports Systems Such As Raspberry Pi OS, Ubuntu, OpenWRT, Etc.
Comes With 5G-4IN1-PCB Antenna
Supports Top And Bottom Mounting, Easy To Install, Good Communication Effect
Onboard Power Monitoring Chip And EEPROM
For Real-Time Monitoring Voltage, Current And Power Of Module Via I2C
Supports Saving HAT+ ID And Product Information, Compatible With HAT+ Standard
Reserved Airflow Vent For Cooling Fan
More Airflow For Pi5, Faster Cooling Effect, More Stable Operation

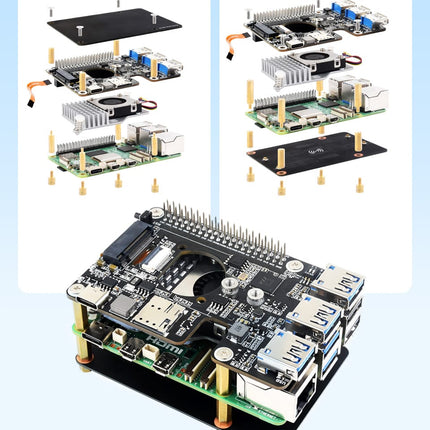

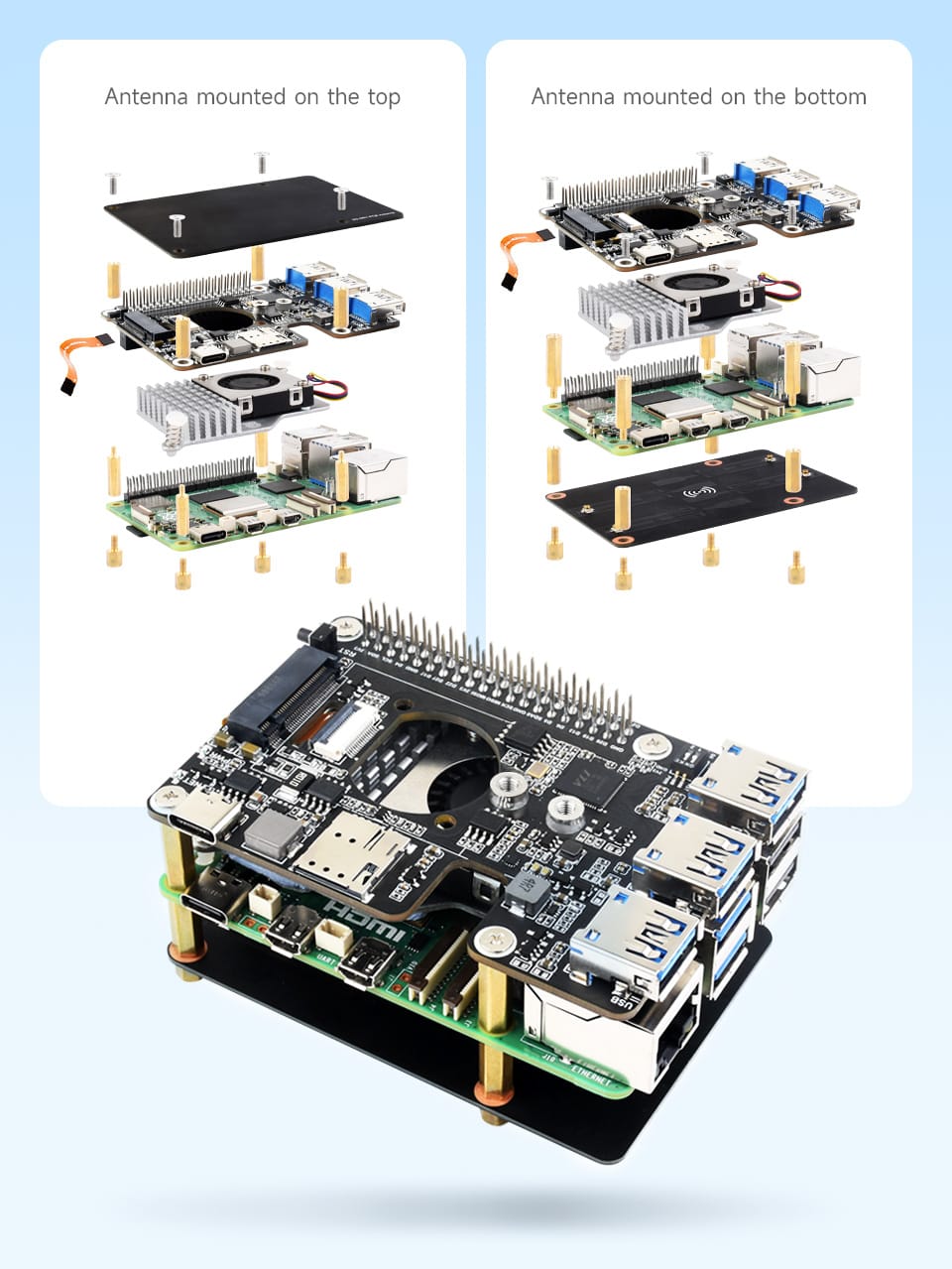

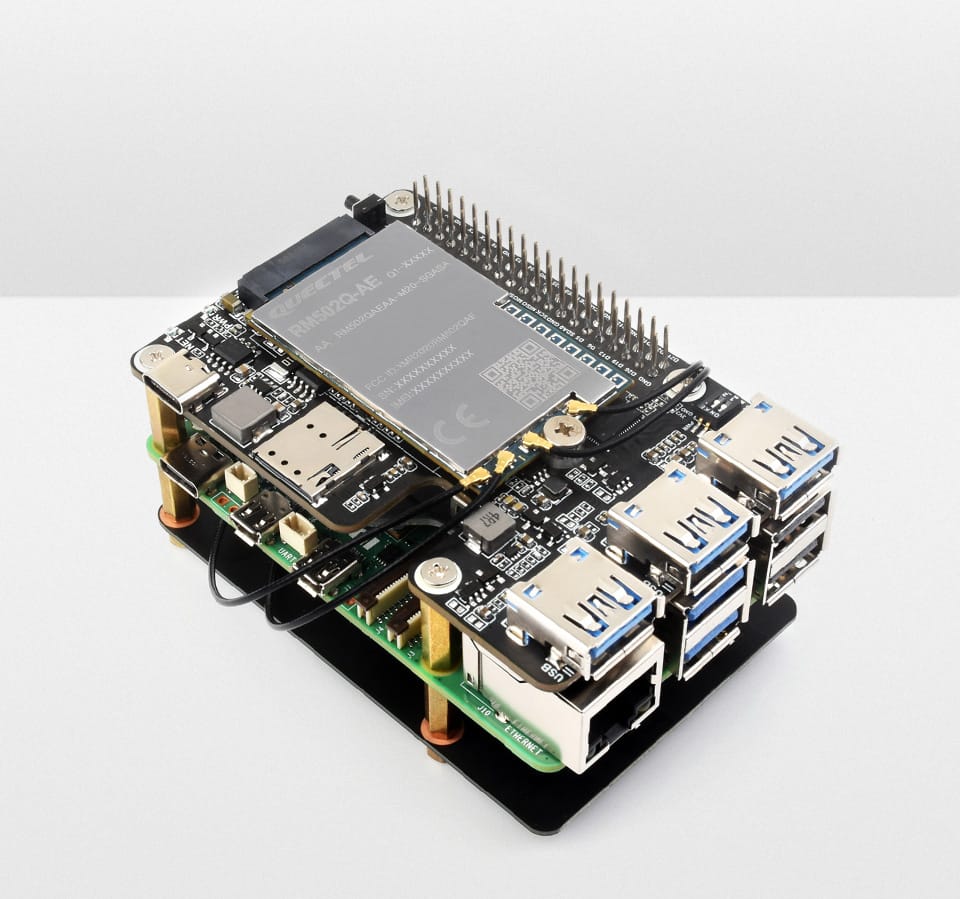

How To Install

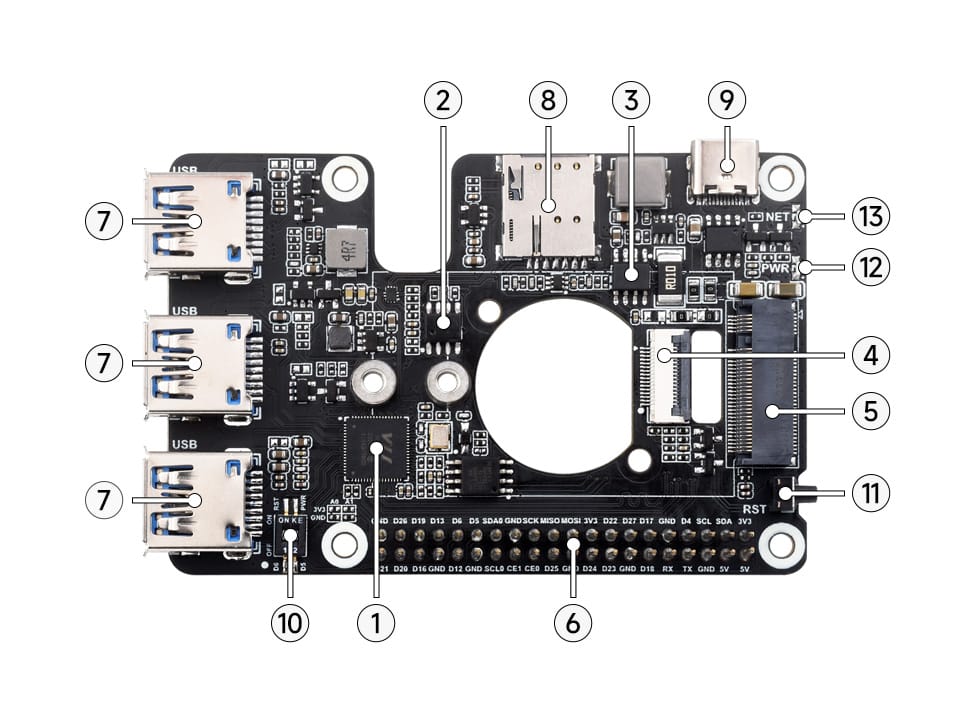

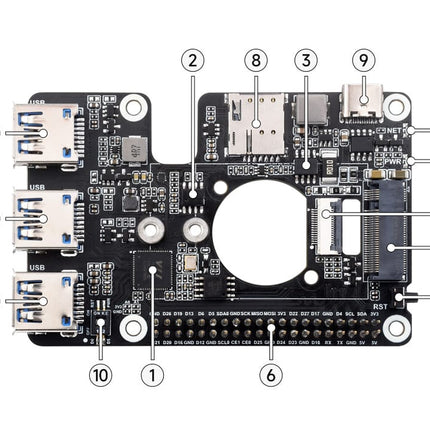

What's On Board
-
VL805
PCIe to USB 3.2 Gen1 HUB chip
-
EEPROM
for saving HAT ID and product information
-
INA219
Power monitoring chip
-
16PIN PCIe interface
for connecting to the PCIe interface of Raspberry Pi 5
-
M.2(NGFF) Key B slot
Compatible with 3042/3052 packages M.2 4G/5G modules
-
Raspberry Pi GPIO header
for connecting Raspberry Pi 5
-
USB 3.2 Gen1 expanded ports
USB1~USB3
-
Nano SIM card slot
for installing Nano-SIM card
-
Type-C interface
for 4G/5G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
-
DIP switch
for switching to use GPIO pins to control power on/off and reset of the module
-
Reset button
Press it to reset the module
-
PWR indicator
Power indicator
-
NET indicator
Module Network status indicator

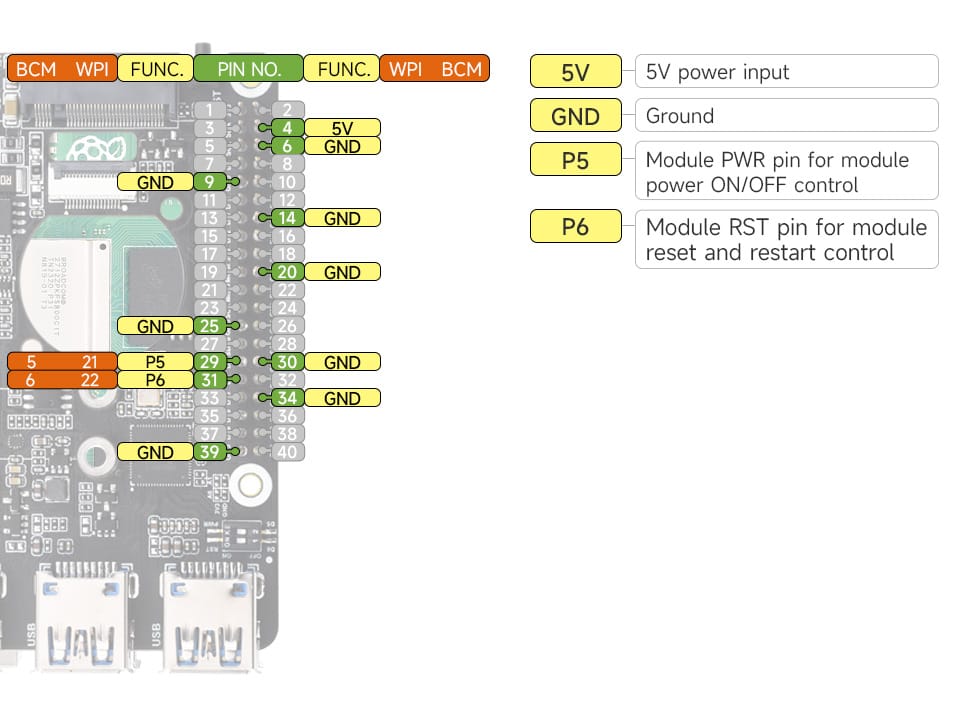

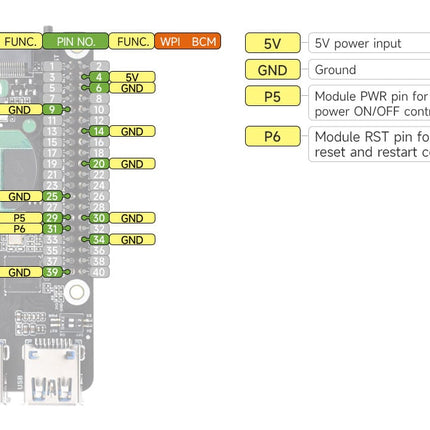

Pinout Definition

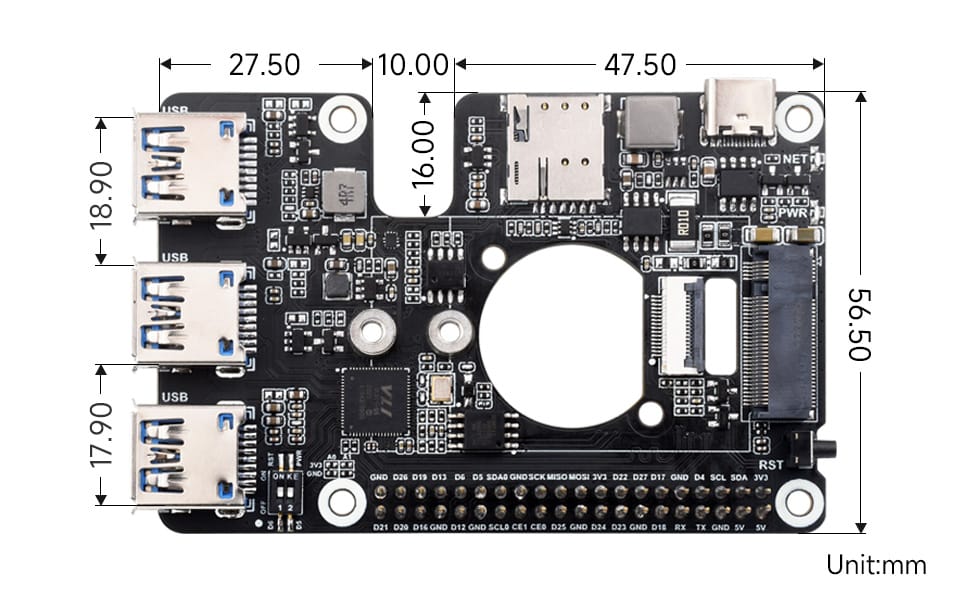

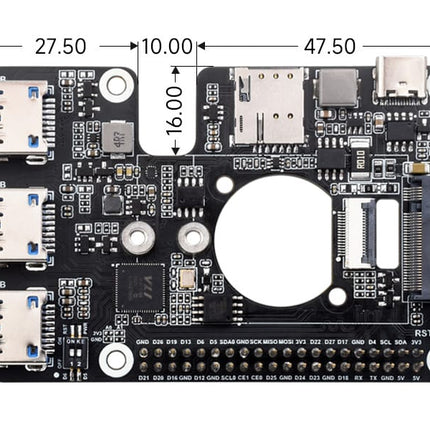

Outline Dimensions
