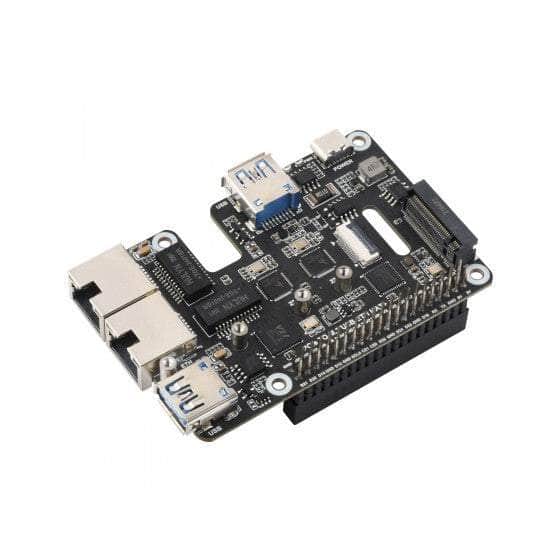

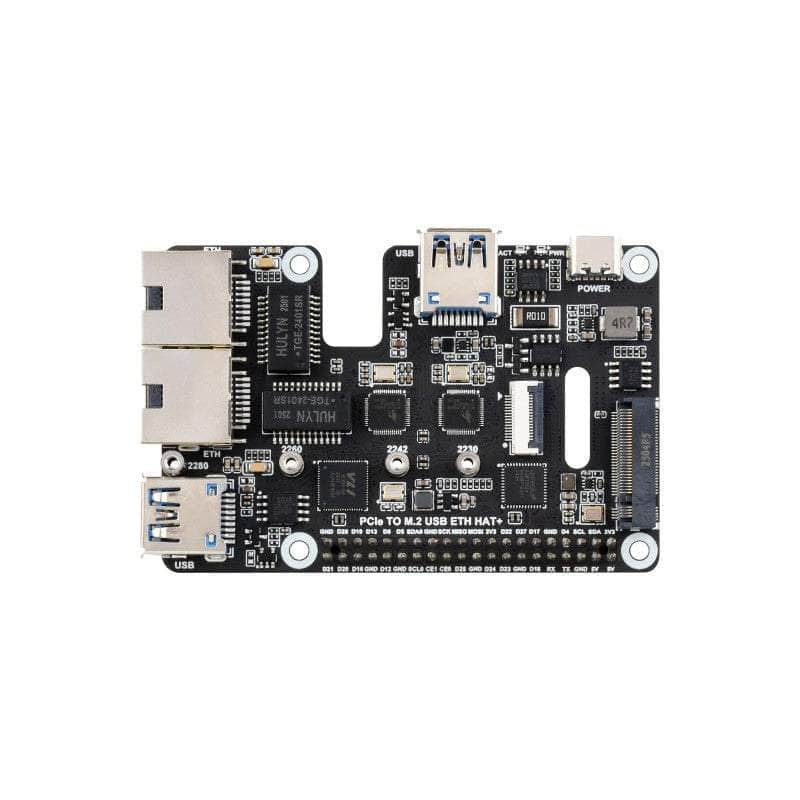

PCIe TO M.2 USB ETH HAT+
Designed For Raspberry Pi 5, driver-free, plug and play
Dual 2.5G Ethernet Ports | Dual USB 3.2 Ports | M.2 NVMe Slot
Connecting to Pi 5 via 16PIN Cable
Based on 16PIN PCIe Interface of Raspberry Pi 5
* for reference only, the Raspberry Pi 5 is not included
NVMe Drive Protocol Support
Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive
Supports Gen2 Mode, Supports Booting PI5 From Solid State Drive
NVMe Drive Slot Support
* Only supports the NVMe Protocol Solid State Drives.
Onboard 2-channel USB 3.2 ports
Extends The PCIe Interface To 2-ch High-Speed USB 3.2 Gen1 Ports for connecting
more peripherals
Extends 2-channel 2.5G Ethernet ports
Onboard RTL8156B high-performance Gigabit ETH chip, sinking design of network port, neat and beautiful
* for reference only, the Raspberry Pi 5 is not included
Improves reading/writing speed of your Pi
Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive
* for reference only, the Raspberry Pi 5 and Solid State Drive are not included.
Onboard Dual LED Indicators
Easy to monitor the Working Status
Onboard Power Monitoring Chip And EEPROM
Real-time monitoring of Solid State Drive power status for More Stable operation

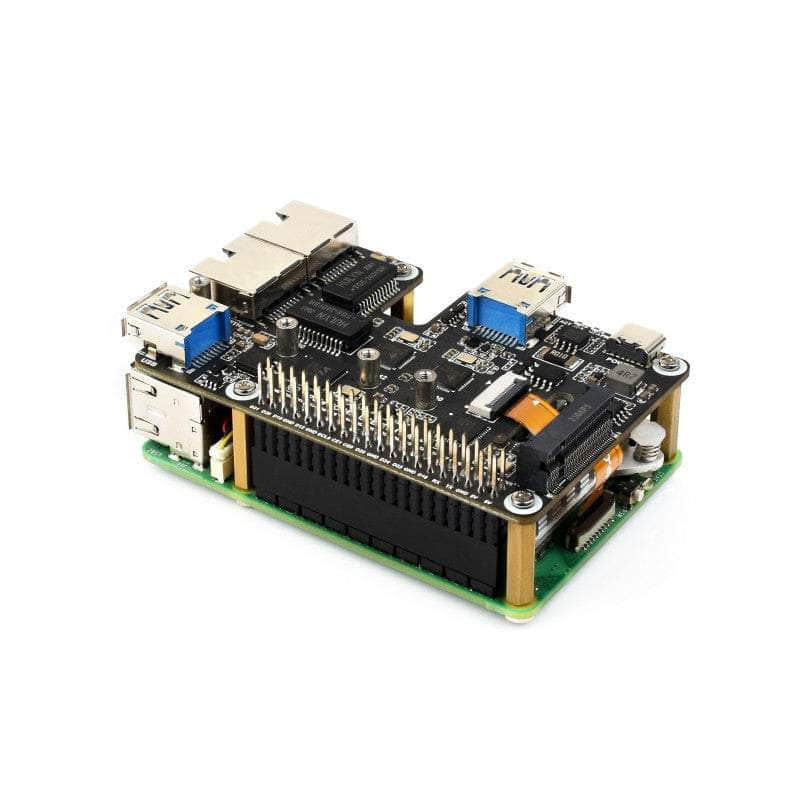

How to install
Attach the thermal tapes first, then install the Official Active Cooler and fix the HAT
* For reference only, please refer to the Package Content for the detailed part list.
Outline dimensions
