Phidget RFID Tag - Metal Mount - 3904

Description

Phidget RFID Tag - Metal Mount - 3904

An EM4012 RFID tag that can even be read when it is in close proximity to metal. If you want to use a tag on metal this is it.

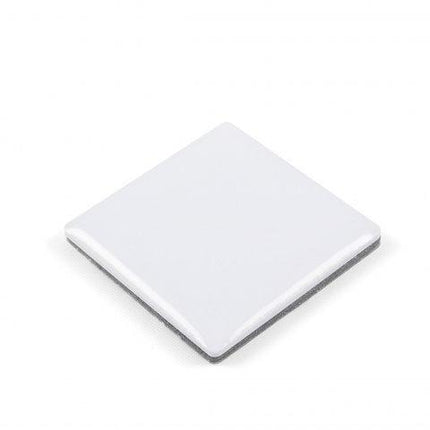

This RFID tag is a white plastic square with adhesive backing. The tag continues to operate normally when attached to metals, unlike most standard RFID tags. The tag contains a unique ID that can be read by the 1024 – RFID reader at a distance of 5cm or less.

Product Specifications

Tag Properties
Protocol EM4102
Tag Characteristics Passive, Read-Only
Transmission Frequency 125 kHz
Encoding Method Manchester
Message Length 64 bit
Unique ID Length 40 bit
Typical Read/Write Distance
(with 1024 - PhidgetRFID R-W)		 50 mm
Physical Properties
Material ABS
Color White
Thickness 4.3 mm
Length 30 mm
Width 30 mm
Weight 7.2 g
IP Rating IP68



Documents

Projects

Read more

Phidget RFID Tag - Metal Mount - 3904

Product form
Free pickup in our shop(s)

SKU: 3904_0

$8.00 $7.00 Excl. GST

$7.00
Product available in stock.
