Phidget 12V Sensor Adapter - 1144_0

Description

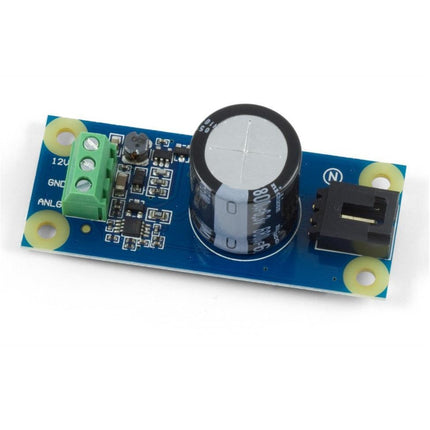

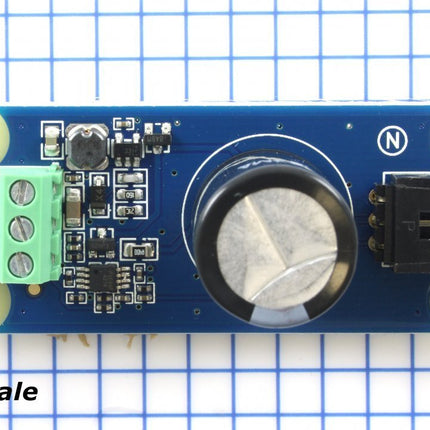

Phidget 12V Sensor Adapter - 1144_0

Phidgets mostly run on 5V, but if you need 12V to power up your sensor you can use this adapter.

The 5V to 12V Sensor Adapter provides an easy solution for using 12V sensors with Phidgets. Simply hook up the sensor to the terminal blocks, and connect it to the analog input of any Phidget InterfaceKit. The 1144 is powered by the attached interface kit, so you don't need a separate power supply for the sensor. For a list of sensors that can be interfaced with the 1144, see the Compatible Products tab.

Comes Packaged with

Product Specifications

Sensor Properties
Controlled By Voltage Input (0-5V)
Sensor Output Type Non-Ratiometric
Electrical Properties
Available External Voltage 12 V DC
Available External Current 20 mA
Supply Voltage Min 4.8 V DC
Supply Voltage Max 5.3 V DC
Current Consumption Max 50 mA
Output Impedance 1 kΩ
Physical Properties
Recommended Wire Size 16 - 26 AWG
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C



Phidget 12V Sensor Adapter - 1144_0

Product form
Free pickup in our shop(s)

SKU: 1144_0

$29.00 $19.00 Excl. GST

$29.00 $19.00
Product available in stock, Express post same business day.

    • 100% Australian Owned and Operating
    • Local Australian Stock — Fast Same-Day Dispatch or Pickup
    • Price Matching & Bulk Discounts — Request a Quote
    • Purchase Orders & 30-Day Accounts for Approved Accounts
    • Accounts Auto Apply to AU/NZ Universities, Schools, ASX-Listed Companies & Government Departments
    • Free Local Technical Support from a Qualified Scientist — Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government
    • 30-Day Free Return and Refund Policy
    • Min 1-Year Warranty on All Products — Extension on Selected Ranges

    Description

    Phidget 12V Sensor Adapter - 1144_0

    Phidgets mostly run on 5V, but if you need 12V to power up your sensor you can use this adapter.

    The 5V to 12V Sensor Adapter provides an easy solution for using 12V sensors with Phidgets. Simply hook up the sensor to the terminal blocks, and connect it to the analog input of any Phidget InterfaceKit. The 1144 is powered by the attached interface kit, so you don't need a separate power supply for the sensor. For a list of sensors that can be interfaced with the 1144, see the Compatible Products tab.

    Comes Packaged with

    Product Specifications

    Sensor Properties
    Controlled By Voltage Input (0-5V)
    Sensor Output Type Non-Ratiometric
    Electrical Properties
    Available External Voltage 12 V DC
    Available External Current 20 mA
    Supply Voltage Min 4.8 V DC
    Supply Voltage Max 5.3 V DC
    Current Consumption Max 50 mA
    Output Impedance 1 kΩ
    Physical Properties
    Recommended Wire Size 16 - 26 AWG
    Operating Temperature Min -40 °C
    Operating Temperature Max 85 °C
