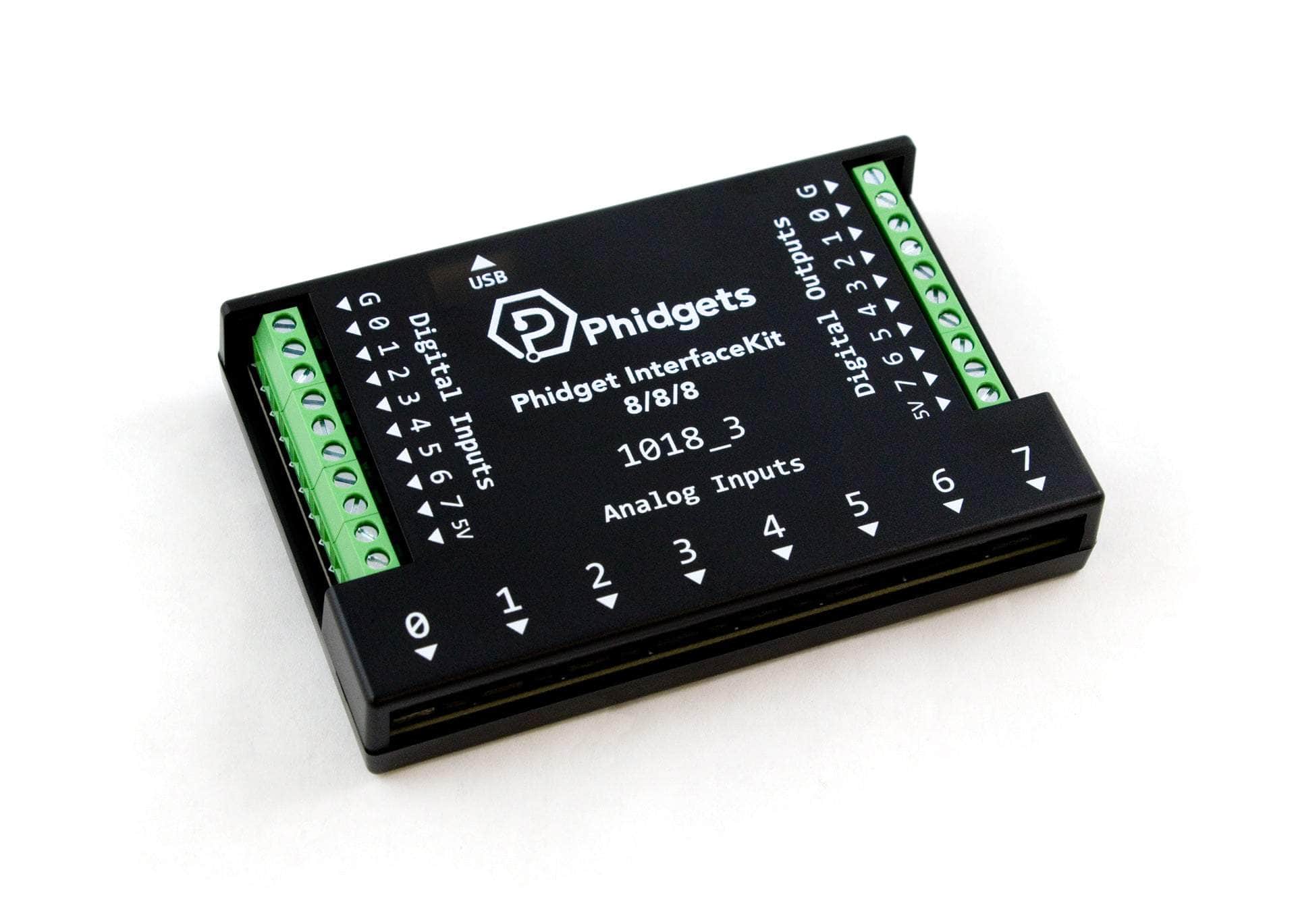

Phidget Interface Kit 8/8/8 1018_3B
Phidget Interface Kit 8/8/8 1018_3B

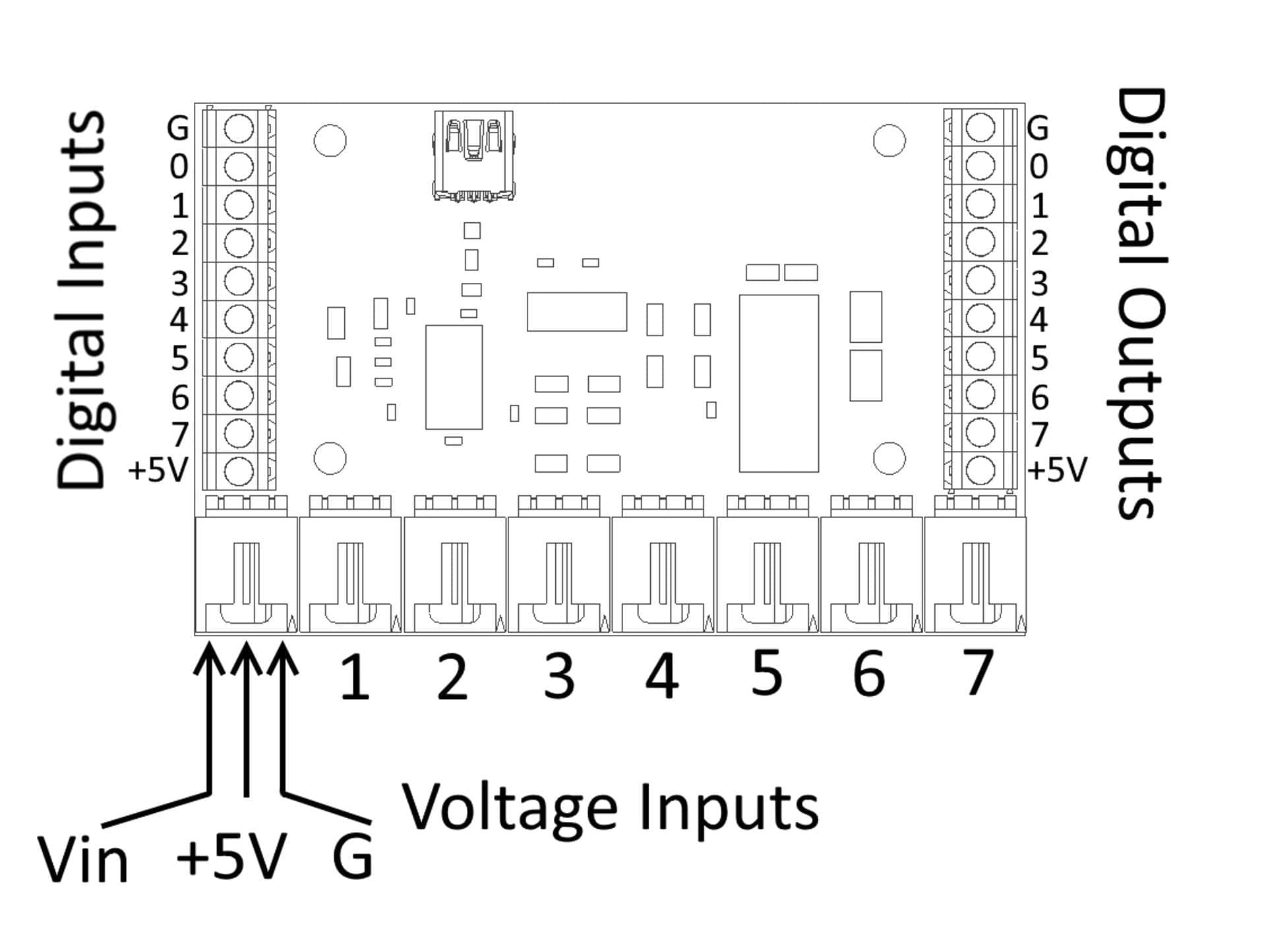

The 1018 PhidgetInterfaceKit provides 8 digital inputs, 8 digital outputs, and 8 analog inputs. This Phidget connects to your computer via USB.
Features
- 8 Analog Inputs to measure the 0-5V signal produced by one of our many analog sensors
- 8 Digital Inputs to read the state of a switch or button
- 8 Digital Outputs to drive an LED, relay or transistor
- Sampling intervals can be set as low as 1ms, or as high as 1 second
Product Specifications
| Board Properties | |
|---|---|
| Controlled By | USB (Mini-USB) |
| API Object Name | DigitalInput, DigitalOutput, VoltageInput, VoltageRatioInput |
| USB Voltage Min | 4.5 V DC |
| USB Voltage Max | 5.3 V DC |
| Current Consumption Min | 12 mA |
| Current Consumption Max | 500 mA |
| Recommended Wire Size | 16 - 26 AWG |
| USB Speed | Full Speed |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
| Voltage Inputs | |
| Number of Voltage Inputs | 8 |
| Voltage Resolution | * 100µV - 5 mV DC |
| Input Impedance | 1 MΩ |
| Input Voltage Min (DC) | 0 V DC |
| Input Voltage Max (DC) | 5.3 V DC |
| Sampling Interval Min | ** 0.001 s/sample |
| Sampling Interval Max | 1 s/sample |
| Digital Inputs | |
| Number of Digital Inputs | 8 |
| Pull-up Resistance | 15 kΩ |
| Low Voltage Max (True) | 1 V DC |
| High Voltage Min (False) | 1.8 V DC |
| Low Voltage Trigger Length Min | 4 ms |
| High Voltage Trigger Length Min | 15 ms |
| Digital Input Voltage Max | ± 5.3 V DC |
| Digital Input Update Rate | 125 samples/s |
| Digital Outputs | |
| Number of Digital Outputs | 8 |
| Series Resistance | 220 Ω |
| Digital Output Voltage Min | 0 V DC |
| Digital Output Voltage Max | 5 V DC |
