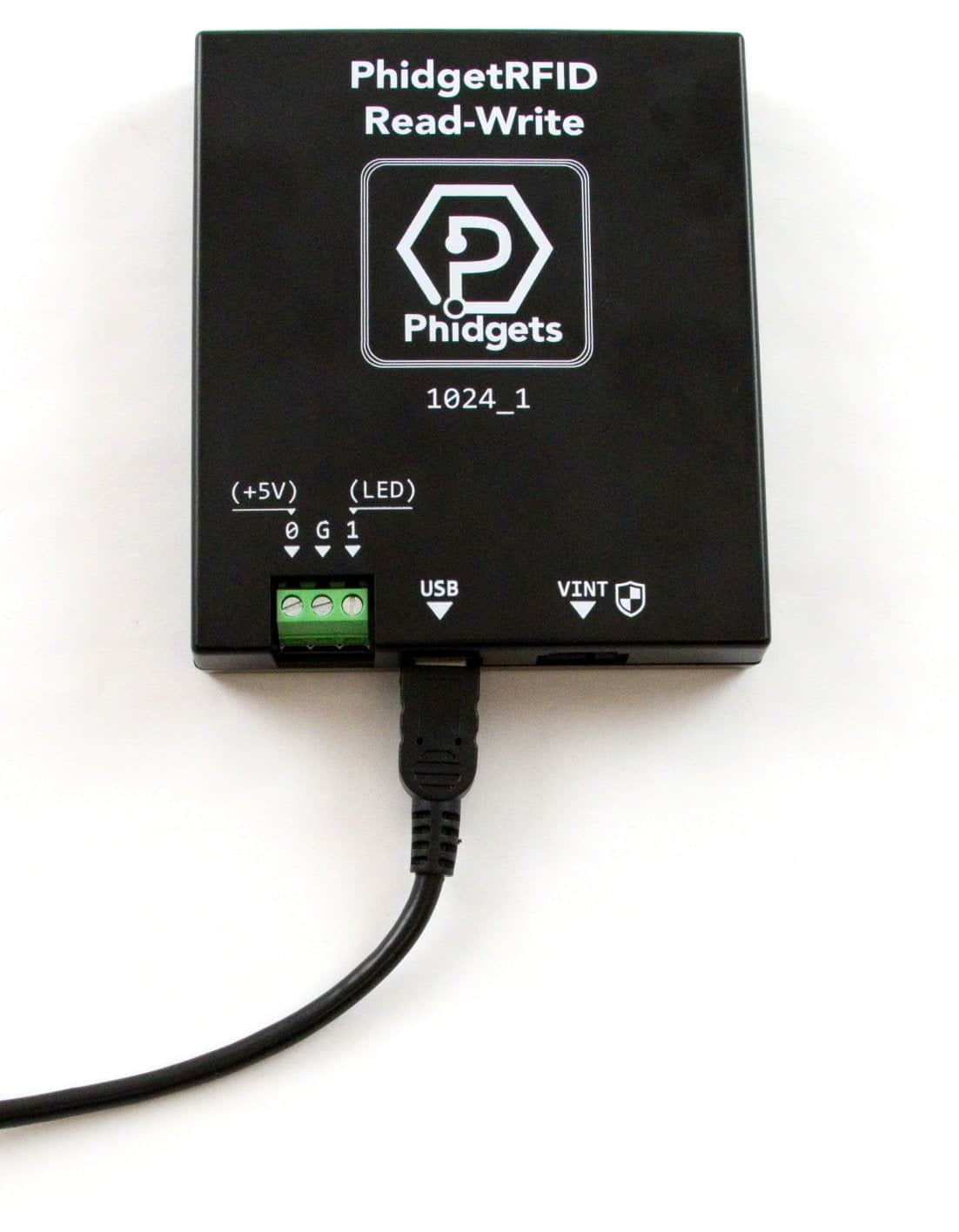

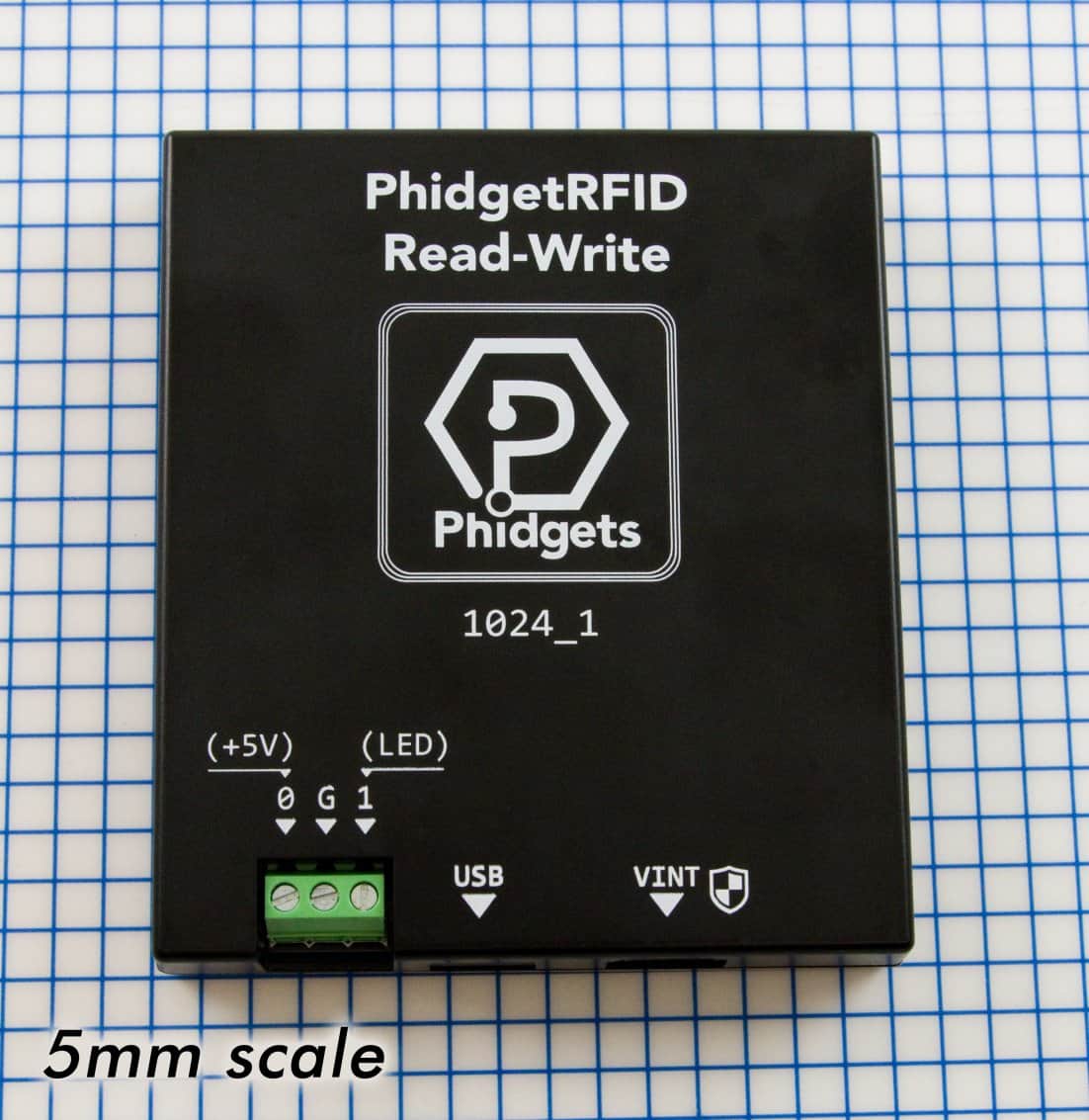

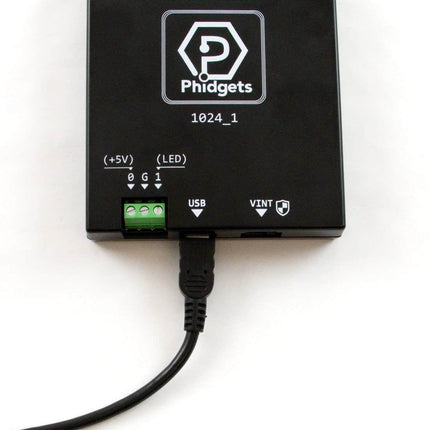

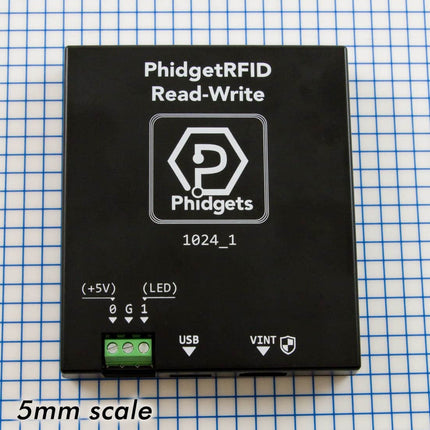

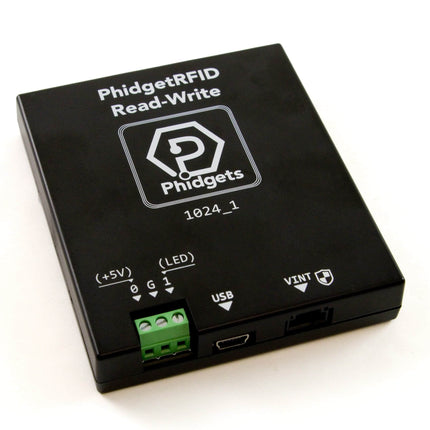

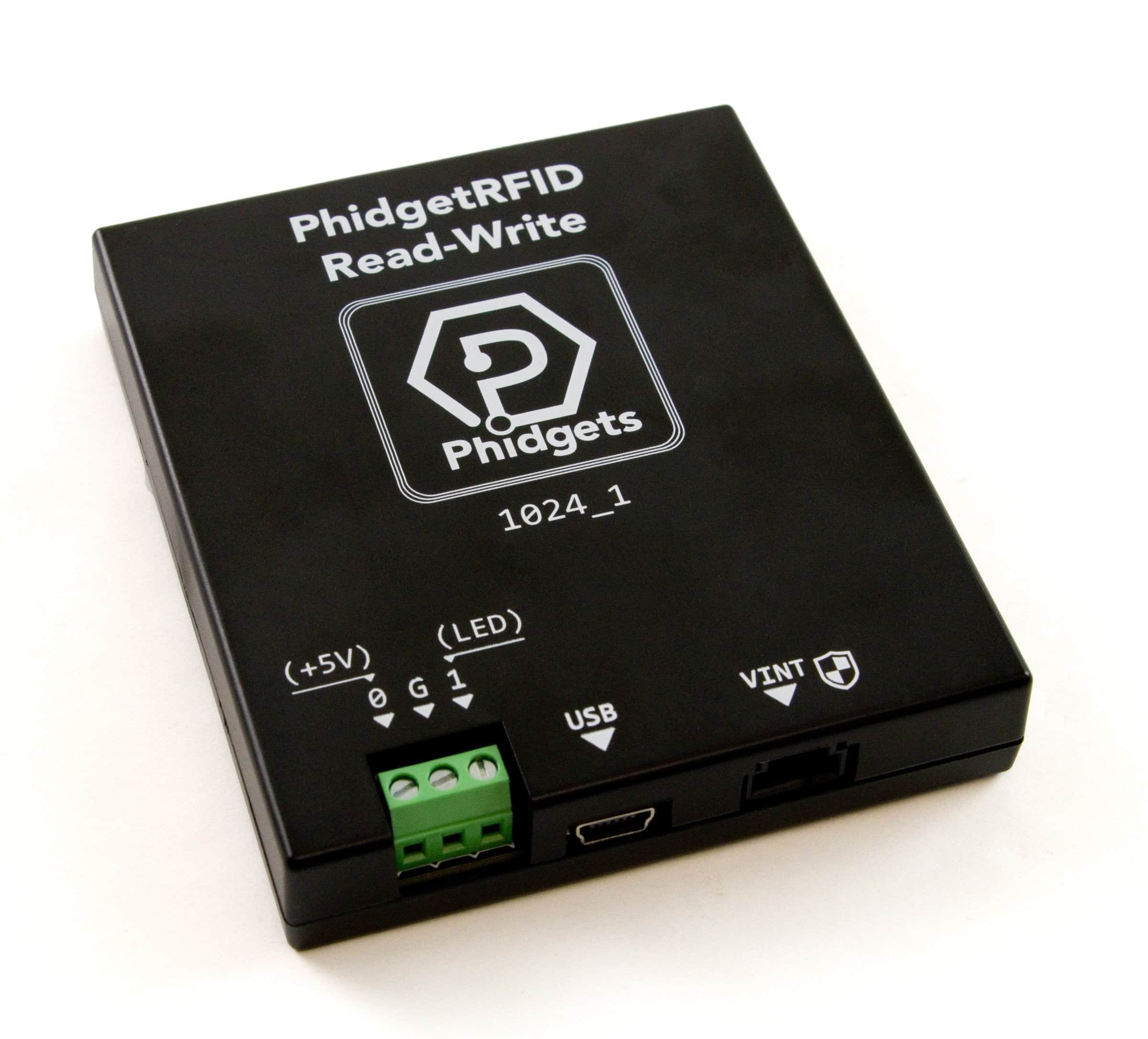

Phidget RFID Read-Write Enclosed 1024_1

Description

Phidget RFID Read-Write Enclosed 1024_1

The PhidgetRFID Read-Write is an RFID (Radio Frequency Identification) interface that enables both reading and writing of low-frequency RFID tags. It also has two digital outputs and a programmable indicator LED.

Features

  • Works with popular protocols like EM4100, ISO11785 FDX-B, HID 26-bit, Generic HID, and PhidgetTAG
  • Has two digital outputs (5V and LED) and one programmable LED
  • New design offers improved electrical immunity

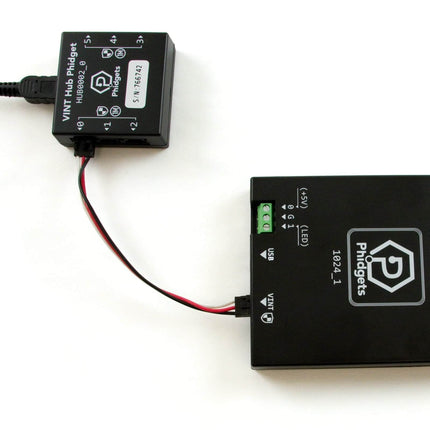

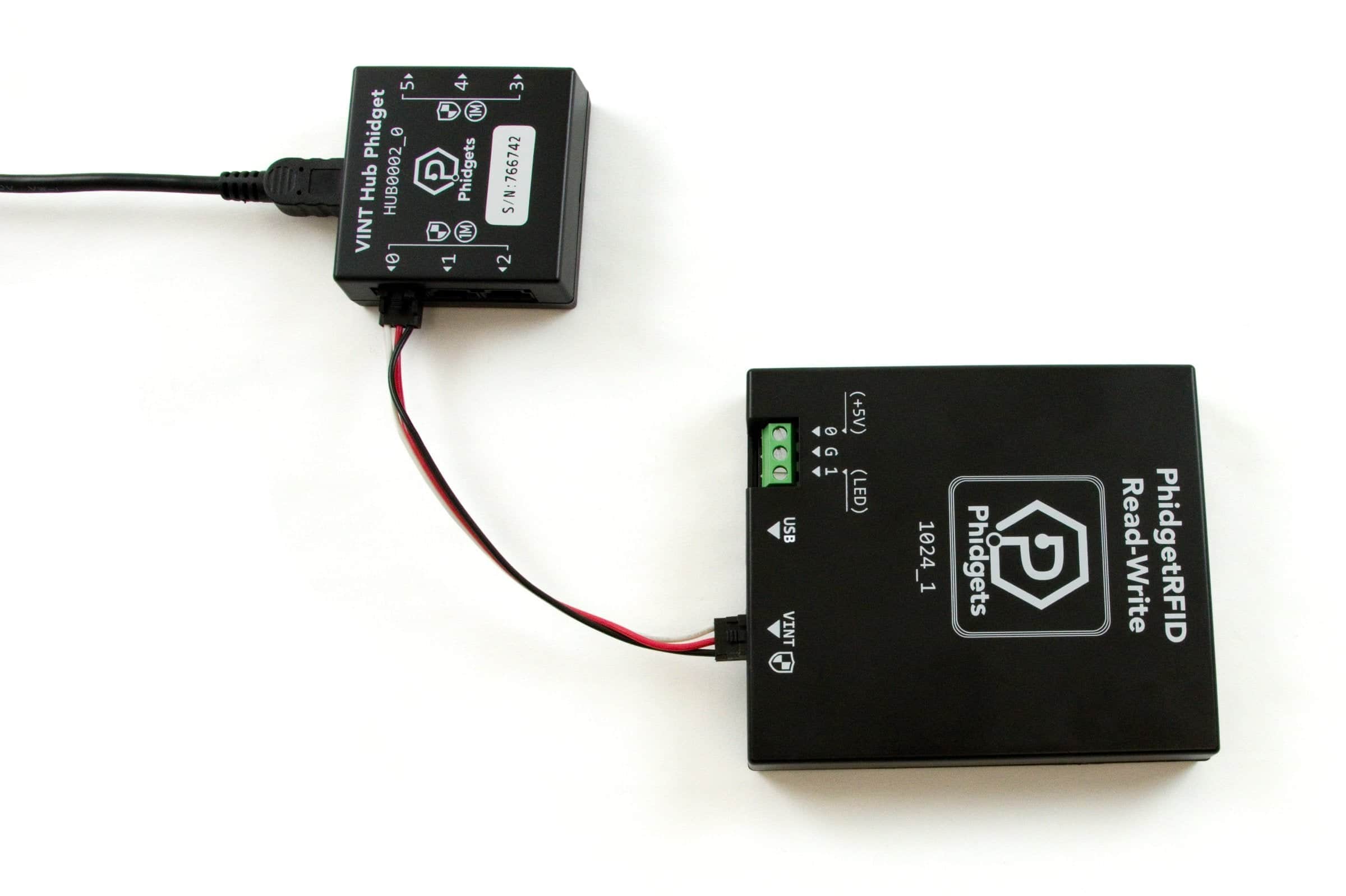

  • Connects to your system through USB or VINT

Product Specifications

Board Properties
Controlled By USB (Mini-USB) or VINT
USB Stack PHIDUSB
Driver Support Phidget22
USB Speed Full Speed
VINT Communication Speed Max 100 kbit/s
RFID Reader
API Object Name RFID
Antenna Frequency (Typical) 125 kHz
Supported Protocols EM4100, ISO11785 FDX-B, HID 26-bit (H10301), HID Generic, PhidgetTAG
Supported Chipsets (Writing) T5577, EM4305
Minimum Distance Between Readers 750 mm
Electrical Properties
Available External Voltage (+5V) 5 V DC
Available External Voltage (LED) 5 V DC
Available External Current (+5V) 400 mA
Available External Current (LED) 5 mA
Output Impedance (LED) 230 Ω
Current Consumption Min 17 mA
Current Consumption Max 120 mA
Physical Properties
Recommended Wire Size 16 - 26 AWG
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C
Digital Outputs
Number of Digital Outputs 2
Digital Output Voltage Min 0 V DC
Digital Output Voltage Max 5 V DC
Customs Information
Canadian HS Export Code 8471.80.00
American HTS Import Code 8471.80.40.00


Documents

Phidget RFID Read-Write Enclosed 1024_1

Product form
Free pickup in our shop(s)

SKU: 1024_1

$159.00 $139.00 Excl. GST

$159.00 $139.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior order/booking
    • We offer Price Match & Quantity Discounts for Large Orders
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
    • We ship the same day via express post for all items in stock
