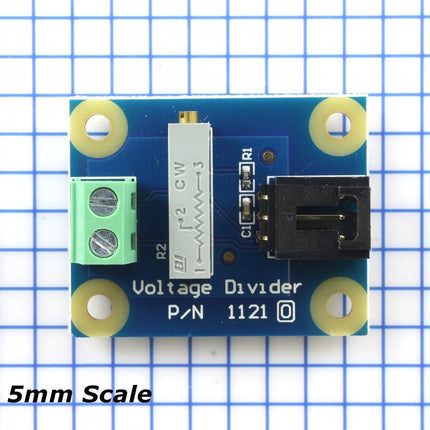

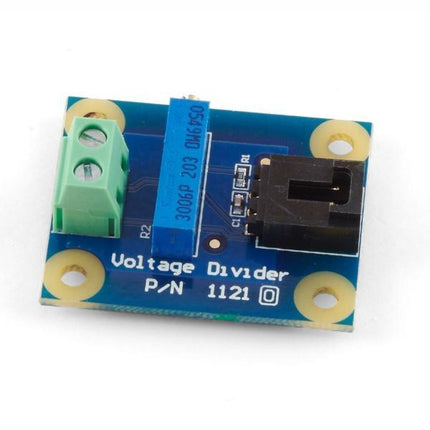

Phidget Voltage Divider - 1121_0
This adapter lets you interface with all sorts of non-Phidgets resistance sensors, just dial in the resistance you want.

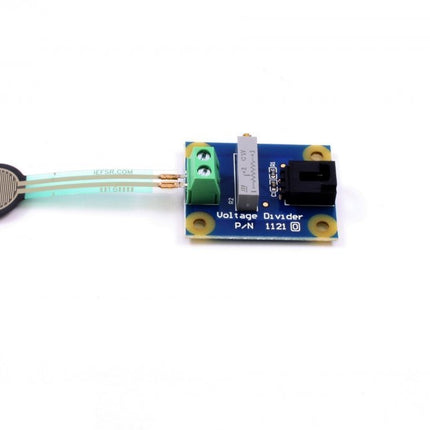

The 1121 provides an interface to non-Phidgets resistance sensors such as: Force-Sensing Resistors (FSR), light sensors, thermistors (heat sensors), and bend sensors.
The Voltage Divider eliminates the need to connect a resistor to an analog input by putting a high precision potentiometer on the board to allow the adjustment of the 'fixed' resistor.
The interface to the variable resistance sensor is a convenient terminal block.
Comes packaged with
Product Specifications
| Sensor Properties |
| Sensor Type |
Resistance |
| Controlled By |
VoltageRatio Input |
| Sensor Output Type |
Ratiometric |
| Resistance Min |
1 kΩ |
| Resistance Max |
21 kΩ |
| Optimal Measurement Resistance Min (@ 1kΩ) |
100 Ω |
| Optimal Measurement Resistance Max (@ 1kΩ) |
10 kΩ |
| Optimal Measurement Resistance Min (@ 21kΩ) |
2 kΩ |
| Optimal Measurement Resistance Max (@ 21kΩ) |
200 kΩ |
| Electrical Properties |
| Current Consumption Max |
5 mA |
| Supply Voltage Min |
3 V DC |
| Supply Voltage Max |
5.3 V DC |
| Physical Properties |
| Recommended Wire Size |
12 - 24 AWG |
| Operating Temperature Min |
-40 °C |
| Operating Temperature Max |
105 °C |
