PhidgetSpatial Precision 3/3/3 - 3 Axis Accelerometer, Gyro & Compass MOT0110_0

Description



PhidgetSpatial Precision 3/3/3 - 3 Axis Accelerometer, Gyro & Compass MOT0110_0

The PhidgetSpatial Precision 3/3/3 combines the functionality of a 3-axis compass, a 3-axis gyroscope, and a 3-axis accelerometer all in one convenient package. You can use the Spatial channel to use all three sensors with the AHRS or IMU algorithms to get motion data in quaternions for accurate spatial tracking. Or, you can use the data from each of these sensors separately to measure tilt, vibration or rotation of an object.

This PhidgetSpatial also features a temperature stabilization circuit to warm the sensors to a constant 50°C to minimize temperature effects.

Features

  • 3-axis accelerometer (±16g)
  • 3-axis gyroscope (±2000°/s)
  • 3-axis magnetometer (±8G)
  • Accurate timestamp for plotting or advanced calculations
  • Built-in support for AHRS and IMU algorithms

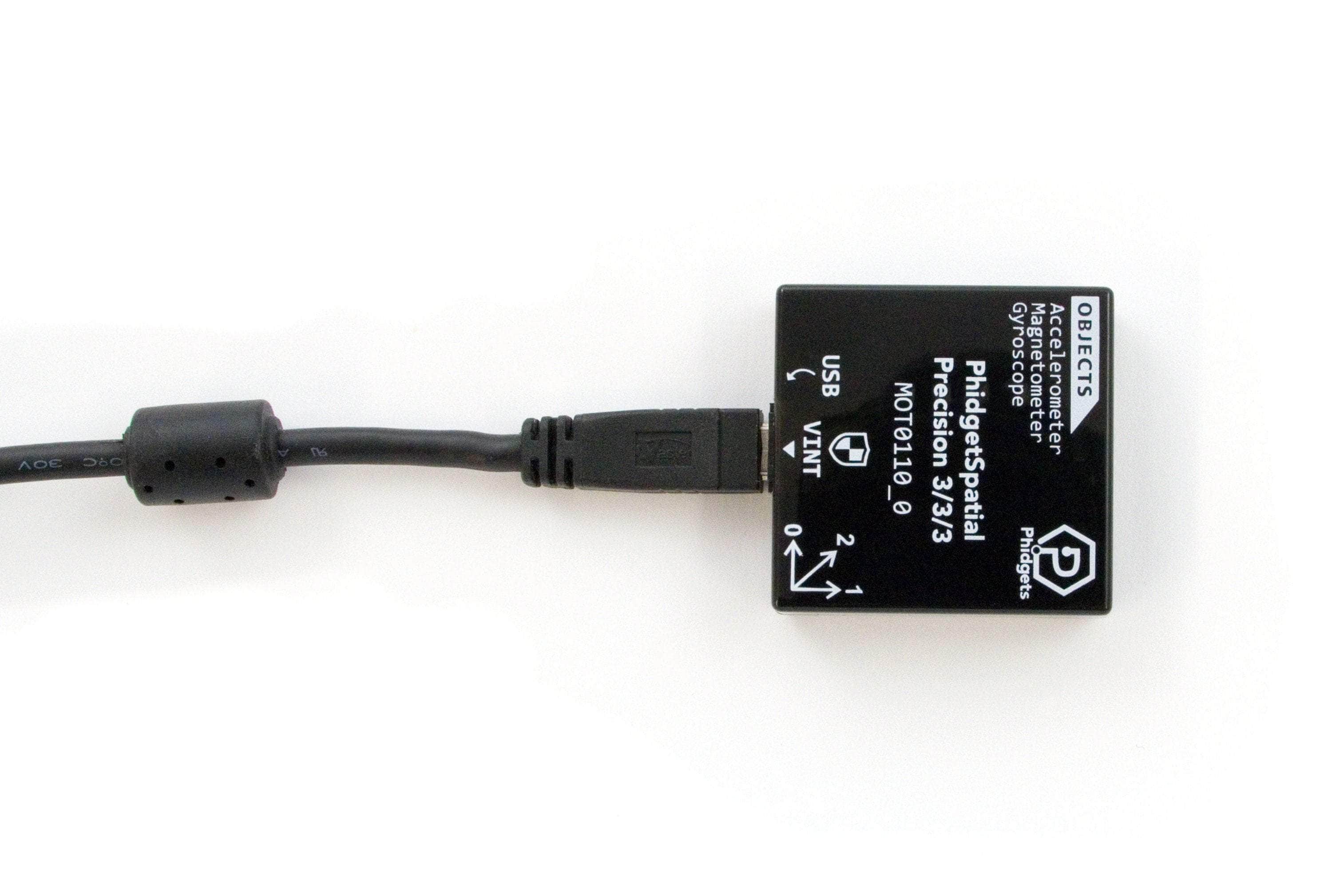

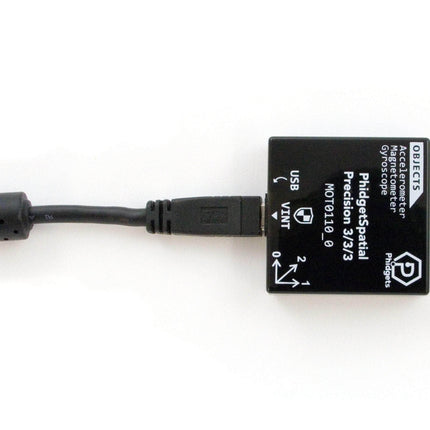

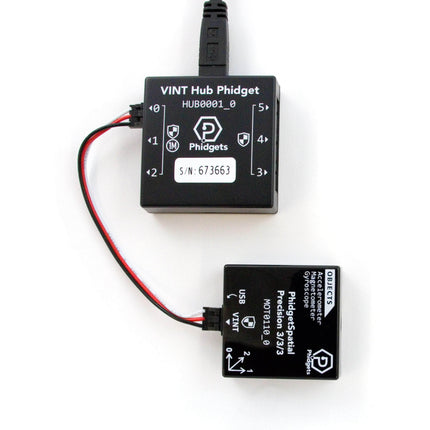

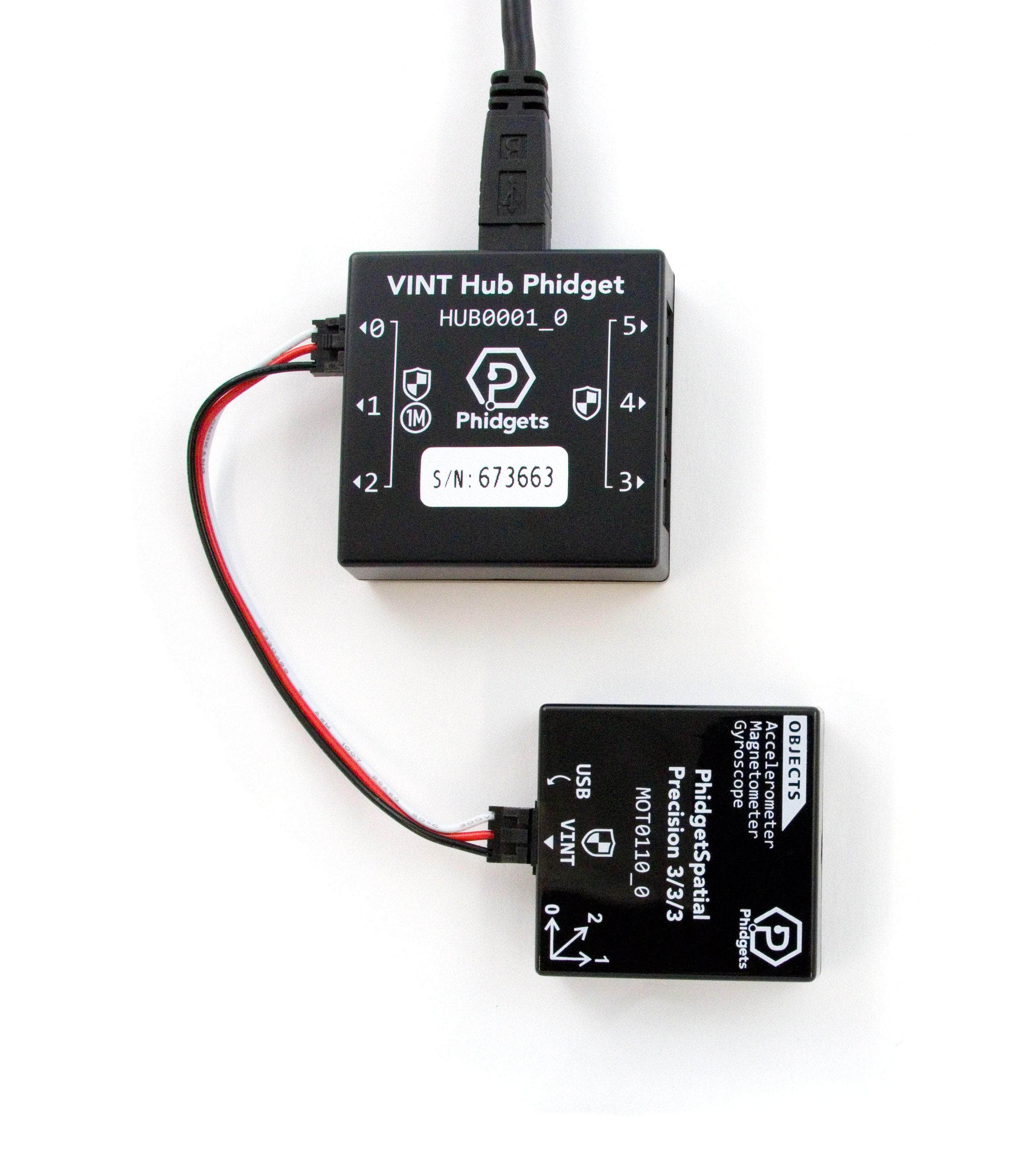

  • Connect via USB cable or through a VINT Hub

Product Specifications

Accelerometer
Acceleration Measurement Max ± 16 g
Acceleration Measurement Resolution 30 μg
Acceleration Bandwidth 250 Hz
Accelerometer Noise (@ 1ms) ± 3 mg
Accelerometer Noise (@ 10ms) ± 1.5 mg
Accelerometer Noise (@ 100ms) ± 200 μg
Accelerometer Drift Max 2 mg
Accelerometer Bias (+15 to +30°C) 5 mg
Accelerometer Bias (Stabilized at 50°C) 1 mg
Gyroscope
Gyroscope Angular Rate Max ± 2000°/s
Gyroscope Resolution 0.004°/s
Gyroscope Noise (@ 1ms) ± 0.2°/s
Gyroscope Noise (@ 10ms) ± 0.05°/s
Gyroscope Noise (@ 100ms) ± 0.015°/s
Gyroscope Drift Max 0.1°/s
Gyroscope Bias (+15 to +30°C) 0.5°/s
Gyroscope Bias (Stabilized at 50°C) 0.05°/s
Magnetometer
Magnetic Field Max ± 8 G
Magnetometer Resolution 1.5 mG
Magnetometer Noise (@ 10ms) ± 10 mG
Magnetometer Noise (@ 50ms) ± 5 mG
Magnetometer Noise (@ 100ms) ± 2.5 mG
Board Properties
Controlled By VINT or USB
API Object Name Accelerometer, Gyroscope, Magnetometer, Spatial, TemperatureSensor
VINT Communication Speed Max 1 Mbit/s
Current Consumption Max 60 mA
Current Consumption Max (Heating Enabled) 450 mA
Sampling Speed Min 1 s/sample
Sampling Speed Max * 1 ms/sample
USB Voltage Min 4.1 V DC
USB Voltage Max 5.3 V DC
USB Speed Full Speed
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C
Customs Information
Canadian HS Export Code 8471.80.00
American HTS Import Code 8471.80.40.00
Country of Origin CN (China)

- Minimum data interval depends on connection mode (VINT/USB) and on VINT mode, varies depending on how many of the device's channels are open simultaneously. See the Minimum Data Interval section below for details.
